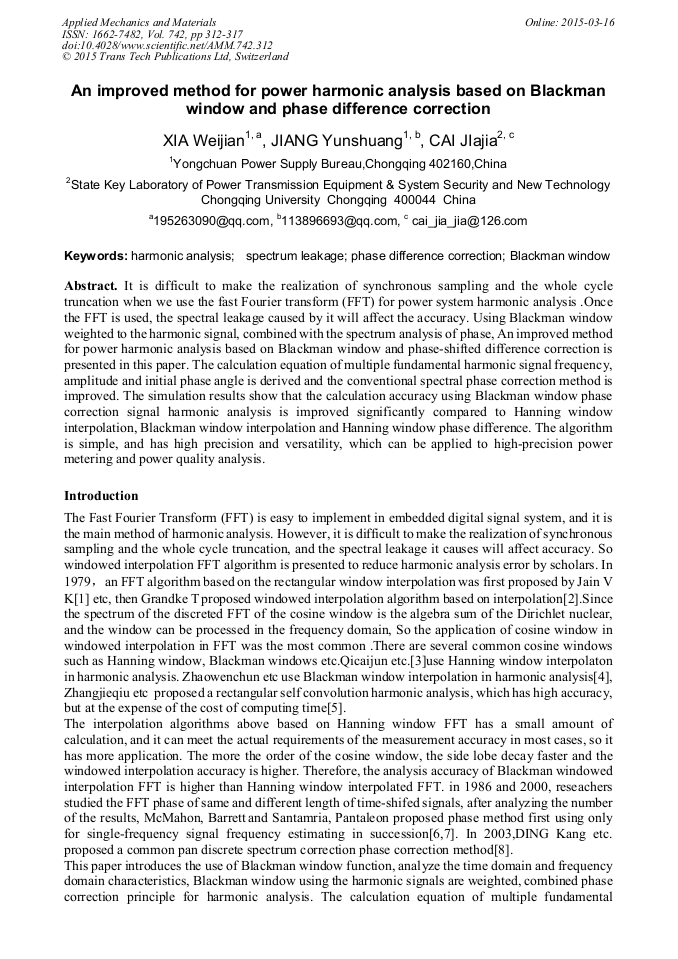

An Improved Method for Power Harmonic Analysis Based on Blackman Window and Phase Difference Correction

Abstract:

It is difficult to make the realization of synchronous sampling and the whole cycle truncation when we use the fast Fourier transform (FFT) for power system harmonic analysis .Once the FFT is used, the spectral leakage caused by it will affect the accuracy. Using Blackman window weighted to the harmonic signal, combined with the spectrum analysis of phase, An improved method for power harmonic analysis based on Blackman window and phase shifted difference correction is presented in this paper. The calculation equation of multiple fundamental harmonic signal frequency, amplitude and initial phase angle is derived and the conventional spectral phase correction method is improved. The simulation results show that the calculation accuracy using Blackman window phase correction signal harmonic analysis is improved significantly compared to Hanning window interpolation, Blackman window interpolation and Hanning window phase difference. The algorithm is simple, and has high precision and versatility, which can be applied to high-precision power metering and power quality analysis.

• Periodical: Applied Mechanics and Materials (Volume 742)
• Pages: 312-317
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.742.312
• Online since: March 2015
• Authors: Wei Jian Xia, Yun Shuang Jiang, Jia Jia Cai
• Keywords: Blackman Window, Harmonic Analysis, Phase Difference Correction, Spectrum Leakage

References

[1] Jain V K, Collins W L, Davis D C. High-accuracy analog measurements via interpolated FFT[J]. IEEE Transactions on Instrument and Measurement, 1979, 28(2): 113-122.

DOI: 10.1109/tim.1979.4314779

[2] Grandke T. Interpolation algorithms for discrete Fourier transforms of weighted signals[J]. IEEE Transactions on Instrument and Measurement, 1983, 32(2): 350-358.

DOI: 10.1109/tim.1983.4315077

[3] QI Caijun, CHEN Longdao, WANG Xiaohai. High-accuracy estimation of electrical harmonic parameters by using the interpolated FFT algorithm[J]. Journal of Zhejiang University (Engineering Science), 2003, 37(1): 112-116.

[4] ZHAO Wenchun, MA Weiming, HU An. FFT algorithm with high accuracy for harmonic analysis in the electricmachine [J]. Proceedings of the CSEE, 2001, 21(12): 83-87, 92.

[5] ZHANG Jieqiu, LIANG Changhong, CHEN Yanpu. Power system harmonic theory analysis and algorithm based on convolution windows[J]. Proceedings of the CSEE, 2004, 24(11): 48-52.

[6] McMahon D R A, Barrett R F. An efficient method for the estimation of the frequency of a single tone in noise from the phase of discrete Fourier transforms[J]. Signal Process, 1986, (11): 169-177.

DOI: 10.1016/0165-1684(86)90035-6

[7] Santamria I, Pantaleon C, Ibanez J. A comparative study of high-accuracy frequency estimation methods[J]. Mechnical Systems and Signal Processing, 2000, 14(5): 819-834.

DOI: 10.1006/mssp.2000.1321

[8] DING Kang, ZHONG Shuncong. A universal phase difference correcting methods on discrete spectrum[J]. ACTA ELECTRONICA SINICA, 2003, 31(1): 142-145.

[9] Xie Ming, Ding Kang. Correction for the frequency, amplitude and phase in FFT of harmonic singial[J]. Mechanical System and Signal Processing, 1996, 10(2): 211-221.

DOI: 10.1006/mssp.1996.0015
