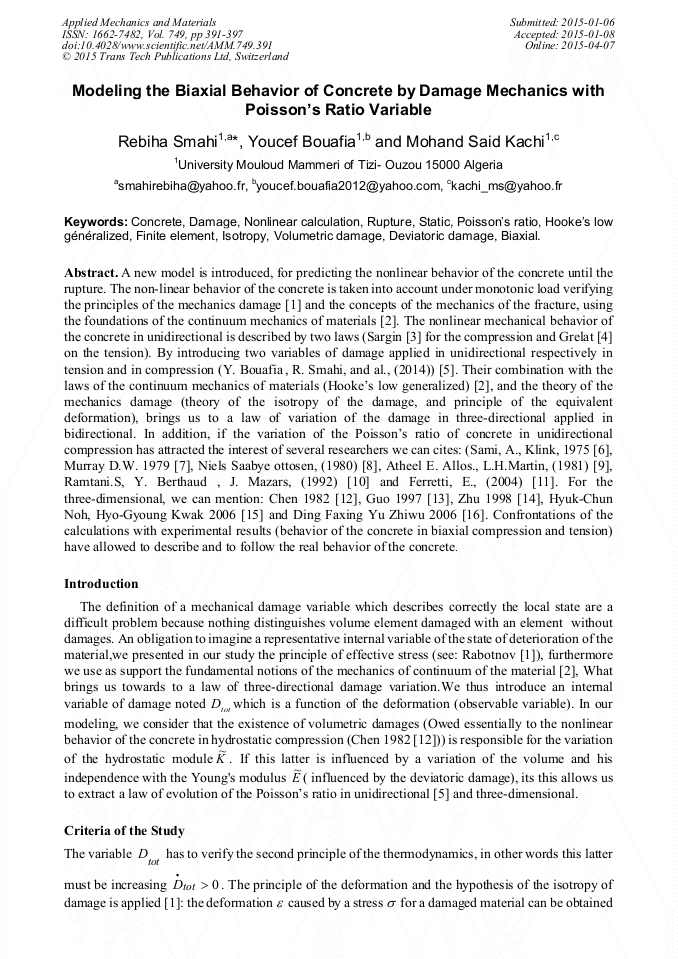

Modeling the Biaxial Behavior of Concrete by Damage Mechanics with Poisson’s Ratio Variable

Abstract:

A new model is introduced, for predicting the nonlinear behavior of the concrete until the rupture. The non-linear behavior of the concrete is taken into account under monotonic load verifying the principles of the mechanics damage [1] and the concepts of the mechanics of the fracture, using the foundations of the continuum mechanics of materials [2]. The nonlinear mechanical behavior of the concrete in unidirectional is described by two laws (Sargin [3] for the compression and Grelat [4] on the tension). By introducing two variables of damage applied in unidirectional respectively in tension and in compression (Y. Bouafia , R. Smahi, and al., (2014)) [5]. Their combination with the laws of the continuum mechanics of materials (Hooke’s low generalized) [2], and the theory of the mechanics damage (theory of the isotropy of the damage, and principle of the equivalent deformation), brings us to a law of variation of the damage in three-directional applied in bidirectional. In addition, if the variation of the Poisson’s ratio of concrete in unidirectional compression has attracted the interest of several researchers we can cites: (Sami, A., Klink, 1975 [6], Murray D.W. 1979 [7], Niels Saabye ottosen, (1980) [8], Atheel E. Allos., L.H.Martin, (1981) [9], Ramtani.S, Y. Berthaud , J. Mazars, (1992) [10] and Ferretti, E., (2004) [11]. For the three-dimensional, we can mention: Chen 1982 [12], Guo 1997 [13], Zhu 1998 [14], Hyuk-Chun Noh, Hyo-Gyoung Kwak 2006 [15] and Ding Faxing Yu Zhiwu 2006 [16]. Confrontations of the calculations with experimental results (behavior of the concrete in biaxial compression and tension) have allowed to describe and to follow the real behavior of the concrete.

• Periodical: Applied Mechanics and Materials (Volume 749)
• Pages: 391-397
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.749.391
• Online since: April 2015
• Authors: Rebiha Smahi*, Youcef Bouafia, Mohand said KACHI
• Keywords: Biaxial, Concrete, Damage, Deviatoric Damage, Finite Element, Hooke’s Low Généralized, Isotropy, Nonlinear Calculation, Poisson’s Ratio, Rupture, Static, Volumetric Damage

References

[1] J. Lemaitre, J.L. Chaboche, A. Benallal, R. Desmorat, Mechanics of solid materials (Mécanique des matériaux solides), Dunod, Paris, ISBN 978- 2 -10- 051623- 0. (2009).

DOI: 10.3917/dunod.lemai.2020.01.0315

[2] P. Royis, Mechanics of continuous environment (Mécanique des milieux continus), Presses universitaires de Lyons, ISBN 2- 7297- 0770- 0 (ISSN 1765- 6389). ( 2005).

[3] M. Sargin, Stress-Strain relationship for concrete and the analysis of structural concrete sections. Solid Mechanics division (University of waterloo Canada 1971).

[4] A. Grelat, Non-linear behavior and stability of reinforced concrete frames (Comportement non linéaire et stabilité des ossatures en béton armé), Annales de l'I.T.B.T.P., N° 234 (1978).

[5] Y. Bouafia , R. Smahi, H. Dumontet, M. S. Kachi, (2014), Modeling the Behavior of Concrete by Damage Mechanics with a Poisson's Ratio Variable. Procedia Materials Science. Volume 3, 2014, Pages 714–719. (20th European Conference on Fracture).

DOI: 10.1016/j.mspro.2014.06.117

[6] S.A. Klink, Poisson's Ratio Variations in Concrete. In Experimental Mechanics, pp.139-141, (1975).

[7] D.W. Murray, Octahedral based incremental stress-strain matrices. J. Eng. Mech. Div. ASCE, Vol. 105 EM4, PP 623-641. (1979).

[8] N.S. Ottosen, Non linear finite element analysis of concrete structures, Riso- R- 411. National laboratory, Denmark. ISBN 87- 550- 0649-3. ISSN 0106- 2840. (1980).

[9] E.A. Atheel, L.H. Martin, Factors Affecting Poisson's Ratio for Concrete. Building and Environment, Vol. 16, No. 1, pp.1-9. Pergamon press Ltd. Printed in Great Britain. (1981).

[10] S. Ramtani, Y. Berthaud ,J. Mazars, Orthotropic behavior of concrete with directional aspects: modeling and experiments. Nuclear Engineering and Design 133(1992) 97-111. North- Holland.

DOI: 10.1016/0029-5493(92)90094-c

[11] E. Ferretti, Poisson's ratio and volumetric strain in concrete. International Journal of Fracture, vol. 126, pp.49-55. (2004).

[12] W.F. Chen, Plasticity in reinforced concrete, Mc Graw Hill, New York. (1982).

[13] Z. Guo, Strength and Deformation of Concrete- Experimental Principles and Constitutive Law (Chinese Edition), Tsinghua University Press House, Beijing, P.R. China. (1997).

[14] B. Zhu, The Finite Element Method Theory and Applications (Chinese Edition), The Water Resources Publishing House of China, Beijing, P.R. China. (1998).

[15] H. Chun Noh , H. Gyoung Kwak, Response variability due to randomness in Poisson's ratio for plane-strain and plane-stress states. International Journal of Solids and Structures 43, (2006) 1093–1116.

DOI: 10.1016/j.ijsolstr.2005.03.072

[16] D. Faxing, Y. Zhiwu,. Strength criterion for plain concrete under multiaxial stress based on damage Poisson's ratio. Acta Mechanica Solida Sinica, Vol. 19, No. 4, December (2006).

DOI: 10.1007/s10338-006-0637-1

[17] BAEL, Technical Rules for calculating reinforced concrete structures following the limit state method, (Règles techniques de conception et de calcul des ouvrages et constructions en béton armé suivant la méthode des états limites). Ed Eyrolles, p.309, France. (1991).

DOI: 10.51257/a-v1-c2314

[18] J.M. Reynouard, G.P. Cabot, Mechanical behavior of concrete, (Comportement mécanique du béton). Publication Hermes science. LAVOISIER, 11, rue Lavoisier 75008 Paris. ISBN 2-7462-00980-2. (2005).

[19] H. Kupfer, H.K. Hilsdorf, H. Rüsch, Behavior of concrete under biaxial stresses. Journal of the American Concrete Institute 66, 656– 666. (1969).

[20] F. Hamon, J. Mazars, To model the 3D damage concrete under cyclic loading. (Modèle d'endommagement 3D Pour le béton sous chargement cyclique). XXXe Rencontres AUGC-IBPSA Chambéry, Savoie, 6 au 8 juin (2012).

[21] J. Mazars, F. Hamon, S. Grange, A new 3D damage model for concrete under monotonic, cyclic and dynamic loadings. Materials and Structures ( 2014 ), DOI 10. 1617/s11527- 014- 0439- 8.

DOI: 10.1617/s11527-014-0439-8
