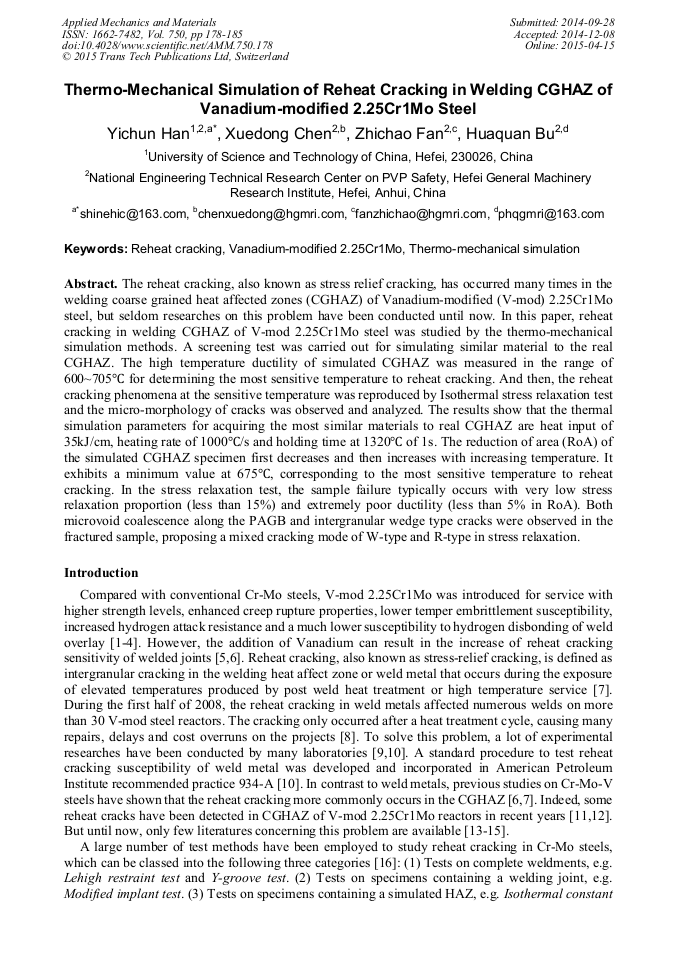

Thermo-Mechanical Simulation of Reheat Cracking in Welding CGHAZ of Vanadium-Modified 2.25Cr1Mo Steel

Abstract:

The reheat cracking, also known as stress relief cracking, has occurred many times in the welding coarse grained heat affected zones (CGHAZ) of Vanadium-modified (V-mod) 2.25Cr1Mo steel, but seldom researches on this problem have been conducted until now. In this paper, reheat cracking in welding CGHAZ of V-mod 2.25Cr1Mo steel was studied by the thermo-mechanical simulation methods. A screening test was carried out for simulating similar material to the real CGHAZ. The high temperature ductility of simulated CGHAZ was measured in the range of 600~705°C for determining the most sensitive temperature to reheat cracking. And then, the reheat cracking phenomena at the sensitive temperature was reproduced by Isothermal stress relaxation test and the micro-morphology of cracks was observed and analyzed. The results show that the thermal simulation parameters for acquiring the most similar materials to real CGHAZ are heat input of 35kJ/cm, heating rate of 1000°C/s and holding time at 1320°C of 1s. The reduction of area (RoA) of the simulated CGHAZ specimen first decreases and then increases with increasing temperature. It exhibits a minimum value at 675°C, corresponding to the most sensitive temperature to reheat cracking. In the stress relaxation test, the sample failure typically occurs with very low stress relaxation proportion (less than 15%) and extremely poor ductility (less than 5% in RoA). Both microvoid coalescence along the PAGB and intergranular wedge type cracks were observed in the fractured sample, proposing a mixed cracking mode of W-type and R-type in stress relaxation.

• Periodical: Applied Mechanics and Materials (Volume 750)
• Pages: 178-185
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.750.178
• Online since: April 2015
• Authors: Yi Chun Han*, Xue Dong Chen, Zhi Chao Fan, Hua Quan Bu
• Keywords: Reheat Cracking, Thermo-Mechanical Simulation, Vanadium-Modified 2.25Cr1Mo

References

[1] J. Shimomura, Y. Nakano, S. Ueda, J. Tateishi, N. Hiro, T. Tani, Development of V-modified 21/4 ~3Cr-1Mo Steels for high temperature service, in: L. Cengdian (Eds. ), Proceedings, 6th International Conference on Pressure Vessel Technology, Vol. 2, Pergamon, Oxford, 1989, pp.1013-1020.

DOI: 10.1016/b978-1-4832-8430-9.50100-3

[2] API RP 941, Steels for Hydrogen Service at Elevated Temperatures and Pressures in Petroleum Refineries and Petrochemical Plants, American Petroleum Institute, Washington D C, (2008).

[3] J. Shimomura, Y. Nakano, S. Nakano, S. Ueda, Disbonding of Overlay Weldment in V-modified 21/4Cr-1Mo Steels, Tetsu-to-Hagane, 75 (1989) 798-805.

DOI: 10.2355/tetsutohagane1955.75.5_798

[4] Y. Hiroshi, M. Shogo, F. Nobuyuki, S. Tomohiko, Y. Masato, S. Tadamichi, Long-term Isothermal Aging Behaviors of V Modified 2. 25Cr-1Mo Steels, Tetsu-to-Hagane, 91 (2005) 888-896.

DOI: 10.2355/tetsutohagane1955.91.12_888

[5] T. Koreaki, S. Jippei, Recent Japanese Researchers on Reheat Cracking of Steel Welds, Research reports of the Faculty of Engineering, Mie Univ., 11 (1986) 95-122.

[6] C. F. Meitzner, Stress-Relief Cracking in Steel Weldment, WRC Bulletin 211, New York, (1975).

[7] A. Dhooge, A. Vinckier, Reheat cracking-A review of recent studies, International Journal of Pressure Vessels and Piping, 27 (1987) 239-269.

DOI: 10.1016/0308-0161(87)90012-3

[8] API TR 934B, 2011, Fabrication Considerations for Vanadium-Modified Cr-Mo Steel Heavy Wall Pressure Vessels, American Petroleum Institute, Washington D C, April (2011).

[9] C. Chauvy, S. Pillot, Prevention of Weld Metal Reheat Cracking during Cr-Mo-V Heavy Reactors Fabrication, Proceedings of the ASME 2009 Pressure Vessels and Piping Division Conference, PVP2009-78144, Prague, Czech Republic, (2009).

DOI: 10.1115/pvp2009-78144

[10] S. Pillot, C. Chauvy, Standard Procedure to Test 21/4Cr-1Mo-V SAW Filler Material Reheat Cracking Susceptibility, Proceedings of the ASME 2012 Pressure Vessels and Piping Division Conference, PVP2012-78030, Toronto, CANADA, (2012).

DOI: 10.1115/pvp2012-78030

[11] Z.D. Liu, J. Chen, H.Q. Bu, X.D. Chen, Development of 2. 25Cr-1Mo-0. 25V Steel Hydrogenator and Some Problems on the Fabrication, Pres. Ves. Tech., 28 (2011) 33-40.

[12] R. R. Li, P.J. Li, Z.B. Ai, Site Inspection and Cause Analysis of Defects for Hydrogenation Reactor in Service (2) - The Cracks Defects and Material Degradation of Reactor Outside Wall, Pres. Ves. Tech., 26 (2009) 39-46.

[13] C. D. Lundin, J. A. Henning, R. Menon, J. A. Todd, Postweld Heat Treatment Cracking in Chromium-Molybdenum Steels, WRC Bulletin 349, New York, (1989).

[14] C. D. Lundin, K. K. Khan, Fundamental Studies of the Metallurgical Causes and Mitigation of Reheat Cracking in 11/4Cr-1/2Mo and 21/4Cr-1Mo steels, WRC Bulletin 409, New York, (1996).

[15] T. Shinya, Y. Tomita, Effect of Calcium Treatments and Strain Rate on Reheat Cracking of Vanadium-Modified 2. 25Cr-1Mo Steel, Materials Characterization, 40 (1998) 221-225.

DOI: 10.1016/s1044-5803(98)00017-5

[16] A. Dhooge, R. E. Dolby, J. Sebille, R. Steinmetz, A.G. Vinckier, A review of work related to reheat cracking in nuclear reactor pressure vessel steels, Int. J. Pres. Ves. & Piping, 6 (1978) 329-409.

DOI: 10.1016/0308-0161(78)90023-6

[17] Y. Adonyi, Heat-Affected Zone Characterization by Physical Simulations, Welding Journal, 10 (2006) 42-47.

[18] A. Dhooge, J. Vekeman, New generation 21/4Cr steels T/P 23 and T/P 24 weldability and high temperature properties, Welding in the World, 49 (2005) 75-93.

DOI: 10.1007/bf03266492

[19] T. Koreaki, S. Jippei, N. Yoshimoto, T. Makoto, Effect of carbides on reheat cracking sensitivity: Study of reheat cracking of Cr-Mo steels, Trans. Japan Welding Soc., 15 (1984) 8-16.

[20] C. A. Hippsley, J. F. Knott, B. C. Edwards, A study of stress relief cracking in 21/4Cr-1Mo steels. II: The effect of multi-component segregation, Acta Metallurgica, 30 (1982) 641-654.

DOI: 10.1016/0001-6160(82)90113-4

[21] C. J. Middleton, Reheat cracking nucleation and nucleation control in bainitic creep-resisting low-alloy steels: Roles of manganese sulphide, residual, and sulphur-stabilizing elements, Metal Science, 15 (1981) 154-167.

DOI: 10.1179/030634581790426679
