Limit Load Analysis of Elbow with Local Wall Thinning under Combined Loads

Abstract:

The local wall thinning(LWT) is a kind of common volume defect in pressure pipe. The limit loads of elbows with LWT under pressure, bending moment, torque and their combined loads have been studied in detail by orthogonal experimental design and finite element method. The results have shown that the influence of depth and circumferential length of LWT on the limit load is more obvious compared to that of axial length when an elbow is under pressure, bending moment or torque. The change of limit bending moment and torque with the depth of LWT and circumferential length is significant for an elbow under combined bending moment and torque. At last, the safety assessment equations for elbow under combined in-plane closing bending moment and torque were proposed by regression analysis.

You might also be interested in these eBooks

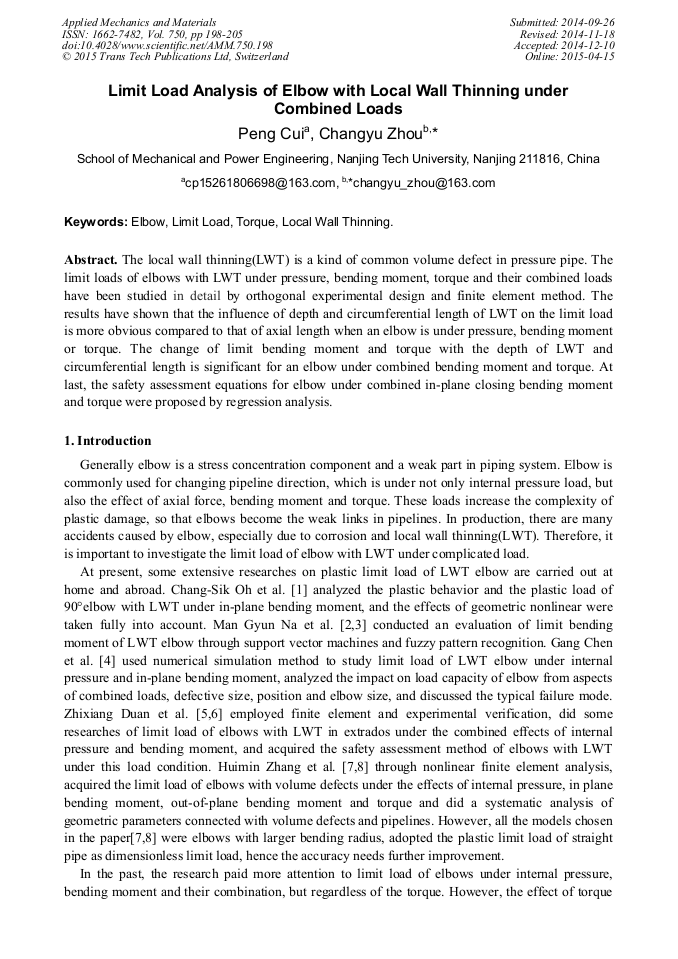

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 750)

Pages:

198-205

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.750.198

Citation:

Cite this paper

Online since:

April 2015

Authors:

Peng Cui, Chang Yu Zhou*

Keywords:

Elbow, Limit Load, Local Wall Thinning, Torque

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] C.S. Oh, Y.J. Kim and C.Y. Park: International Journal of Fracture, Vol. 145 (2007) No. 1, p.63.

Google Scholar

[2] M.G. Na, J.W. Kim, and I.J. Hwang: Nuclear Engineering and Design, Vol. 236 (2006) No. 13, p.1335.

Google Scholar

[3] M.G. Na, J.W. Kim, and I.J. Hwang: Nuclear Engineering and Design, Vol. 237 (2007) No. 5, p.451.

Google Scholar

[4] G. Chen, C.Y. Zhang and Y.H. Liu: Engineering Mechanics, Vol. 22 (2005) No. 2, p.43. (In Chinese).

Google Scholar

[5] Z.X. Duan and S.M. Shen: Nuclear Engineering and Design, Vol. 28 (2007) No. 6, p.87. (In Chinese).

Google Scholar

[6] Z.X. Duan and S.M. Shen: The Plastic Limit Load and Security Analysis of Elbows with the Local Wall Thinning (Ph.D., Nan Jing Tech University, 2007), p.5. (In Chinese).

Google Scholar

[7] H.M. Zhang and J.Z. Pan: Engineering Mechanics, Vol. 26 (2009) No. 8, p.20. (In Chinese).

Google Scholar

[8] H.M. Zhang: Engineering Mechanics, Vol. 11 (2011) No. 3, p.188. (In Chinese).

Google Scholar

[9] C.X. Guo, X.M. Yuan and D.B. Wang: Mechanical Strength, Vol. 25 (2003) No. 3, p.315.

Google Scholar

[10] W.M. Zhang, M.W. Lu and R.Y. Zhang: Solid Mechanics, (1989) No. 2, p.152. (In Chinese).

Google Scholar

[11] S.E. Bolt and W.L. Greenstreet : Pressure Vessels and Piping Conference (ASME paper, No. 37, 1971).

Google Scholar
