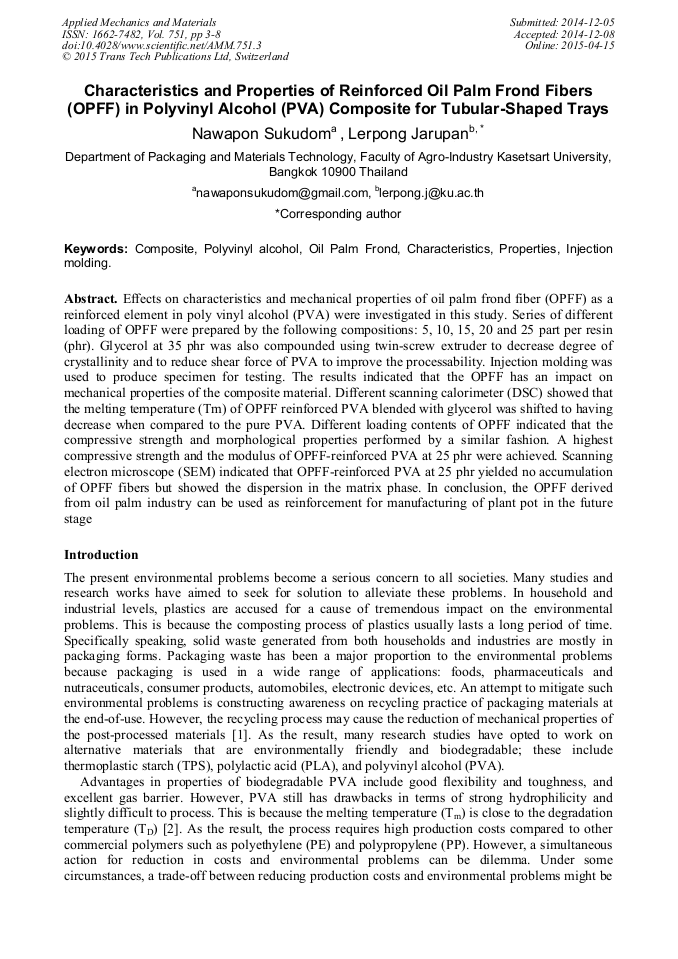

Characteristics and Properties of Reinforced Oil Palm Frond Fibers (OPFF) in Polyvinyl Alcohol (PVA) Composite for Tubular-Shaped Trays

Abstract:

Effects on characteristics and mechanical properties of oil palm frond fiber (OPFF) as a reinforced element in poly vinyl alcohol (PVA) were investigated in this study. Series of different loading of OPFF were prepared by the following compositions: 5, 10, 15, 20 and 25 part per resin (phr). Glycerol at 35 phr was also compounded using twin-screw extruder to decrease degree of crystallinity and to reduce shear force of PVA to improve the processability. Injection molding was used to produce specimen for testing. The results indicated that the OPFF has an impact on mechanical properties of the composite material. Different scanning calorimeter (DSC) showed that the melting temperature (Tm) of OPFF reinforced PVA blended with glycerol was shifted to having decrease when compared to the pure PVA. Different loading contents of OPFF indicated that the compressive strength and morphological properties performed by a similar fashion. A highest compressive strength and the modulus of OPFF-reinforced PVA at 25 phr were achieved. Scanning electron microscope (SEM) indicated that OPFF-reinforced PVA at 25 phr yielded no accumulation of OPFF fibers but showed the dispersion in the matrix phase. In conclusion, the OPFF derived from oil palm industry can be used as reinforcement for manufacturing of plant pot in the future stage

• Periodical: Applied Mechanics and Materials (Volume 751)
• Pages: 3-8
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.751.3
• Online since: April 2015
• Authors: Nawapon Sukudom, Lerpong Jarupan*
• Keywords: Characteristics, Composite, Injection Molding, Oil Palm Frond, Polyvinyl Alcohol, Properties

References

[1] L. Xin, Z. Guo-Xiang, and J. Ping-Qu, in: Extruded Starch/PVA Composites: Water Resistance, Thermal Properties, and Morphology, volume 40 of Elastomers and Plastics (2008), pp.303-315.

DOI: 10.1177/0095244307085787

[2] D.K. Lee, and J. Jyongsik, in: Plasticizer effect on the melting and crystallization behavior of polyvinyl alcohol, volume 44 of Polymer (2003), pp.8139-8146.

DOI: 10.1016/j.polymer.2003.10.015

[3] A. Rahman, S. Norkamruzita, R. Noraini, and A.K. Sopiah, in: Effects of Glycerol Content in Modified Polyvinyl Alcohol-Tapioca Starch Blends, Science and Engineering Research (2012), pp.523-526.

[4] M. Rahmah, M. Farhan, and M.N.Y. Akida, in: Mechanical and Thermal Properties of HybridBlends of LLDPE/Starch/PVA, volume 7 of Intrnational Sciences (2013), pp.292-296.

[5] S.H. Imam, P. Chellini, E. Chellini, and J.W. Lawton, in: Properties of Injection Molded composites Containing Corn Fiber and Poly(Vinyl Alcohol), volume 13 of Polymer Research (2006), pp.107-113.

DOI: 10.1007/s10965-005-9012-z

[6] J.N. Hay, and B.J. Holland, in: The thermal degradation of poly(vinyl alcohol), volume 42 of Polymer (2001), pp.6775-6773.

DOI: 10.1016/s0032-3861(01)00166-5

[7] M.S. Sreekala, M. G. Kumaran, and T. Sabu, in: Oil Palm Fibers: Morphology, Chemical Composition, Surface Modification, and Mechanical Properties of Rubber Research Institute of India (1997), pp.820-835.

DOI: 10.1002/(sici)1097-4628(19971031)66:5<821::aid-app2>3.0.co;2-x

[8] F.J. Karla, and S. Kuto, The Formation of Strong Intermolecular Interactions in Immiscible Blends of Poly(vinyl alcohol) (PVA) and Lignin, volme 4 of Biomacromolecule, pp.561-567.

DOI: 10.1021/bm025727p
