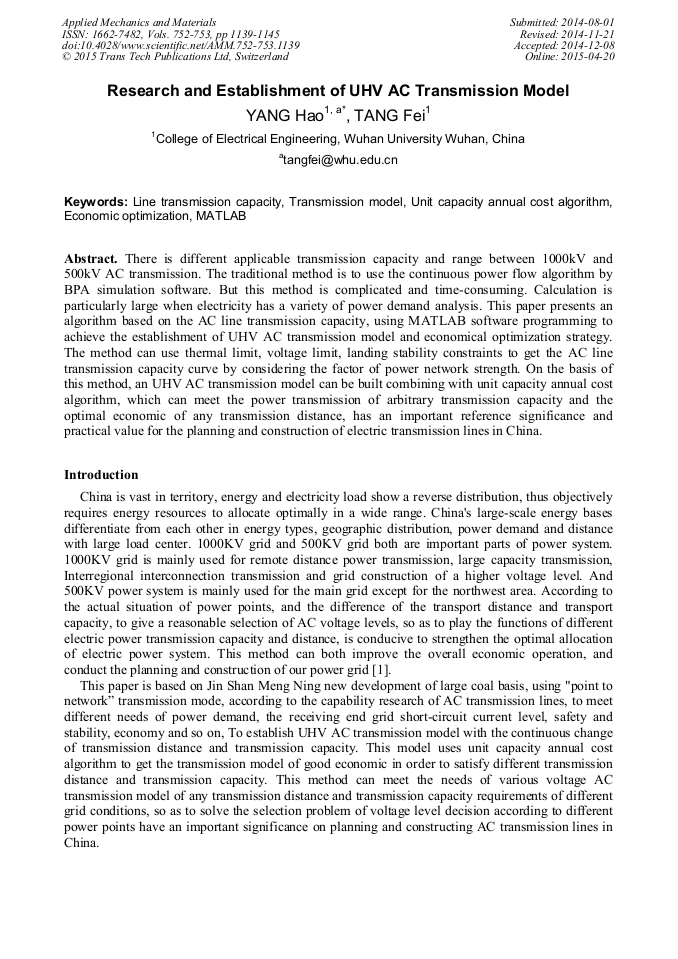

Research and Establishment of UHV AC Transmission Model

Abstract:

There is different applicable transmission capacity and range between 1000kV and 500kV AC transmission. The traditional method is to use the continuous power flow algorithm by BPA simulation software. But this method is complicated and time-consuming. Calculation is particularly large when electricity has a variety of power demand analysis. This paper presents an algorithm based on the AC line transmission capacity, using MATLAB software programming to achieve the establishment of UHV AC transmission model and economical optimization strategy. The method can use thermal limit, voltage limit, landing stability constraints to get the AC line transmission capacity curve by considering the factor of power network strength. On the basis of this method, an UHV AC transmission model can be built combining with unit capacity annual cost algorithm, which can meet the power transmission of arbitrary transmission capacity and the optimal economic of any transmission distance, has an important reference significance and practical value for the planning and construction of electric transmission lines in China.

• Periodical: Applied Mechanics and Materials (Volumes 752-753)
• Pages: 1139-1145
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.752-753.1139
• Online since: April 2015
• Authors: Hao Yang*, Fei Tang
• Keywords: Economic Optimization, Line Transmission Capacity, MATLAB, Transmission Model, Unit Capacity Annual Cost Algorithm

References

[1] S. Yinbiao, Development and execution of UHV power transmission in China [J], Electr. Power, 38 (11) (2005) 1-8.

[2] L. Qionghui, H. Zhaoyi and Y. Yunliang, Study on macro-decision of transmission pattern and voltage level for long distance and high capacity transmission [J], Power Syst. Technol. 19 (8) (1995) 1-6.

[3] St. H.P. Clair, Practical Concepts in Capability and Performance of Transmission Lines. AIEE Transactions, 72 (1953) 1152-1157.

DOI: 10.1109/aieepas.1953.4498751

[4] R.D. Dunlop, R. Gutman and P.P. Marchenko, Analytical Development of Loadability Characteristics for EHV and UHV Transmission Line [J], IEEE Trans. on Power Apparatus. and Syst. (2) (1979) 606-613.

DOI: 10.1109/tpas.1979.319410

[5] X. Zheng. EHV/UHV AC Transmission Capability Analysis [J], Power Syst. Technol. 19 (8) (1995) 7-12.

[6] X.Z. Chai, X.D. Liang and R. Zeng, An Improved Calculation Method for Power-Transmitting Capability Curve of AC Transmission Line [J], Power Syst. Technol. 29 (24) (2005) 20-24.

[7] G. Richard, Application of Line Loadability Concepts to Operating Studies [J], IEEE Trans. Power Syst. 3 (4) (1988) 1426-1433.

DOI: 10.1109/59.192949

[8] S.N. Tiwari and A.S. Bin Saroor, An Investigation into Loadability Characteristics of EHV High Phase Order Transmission Lines. IEEE Trans. Power Syst. 10 (3) (1995) 1264-1270.

DOI: 10.1109/59.466528

[9] J. Peiyi, The annual cost method and its simplification in Power Engineering program comparison. 10 (1) (1991) 13-16.
