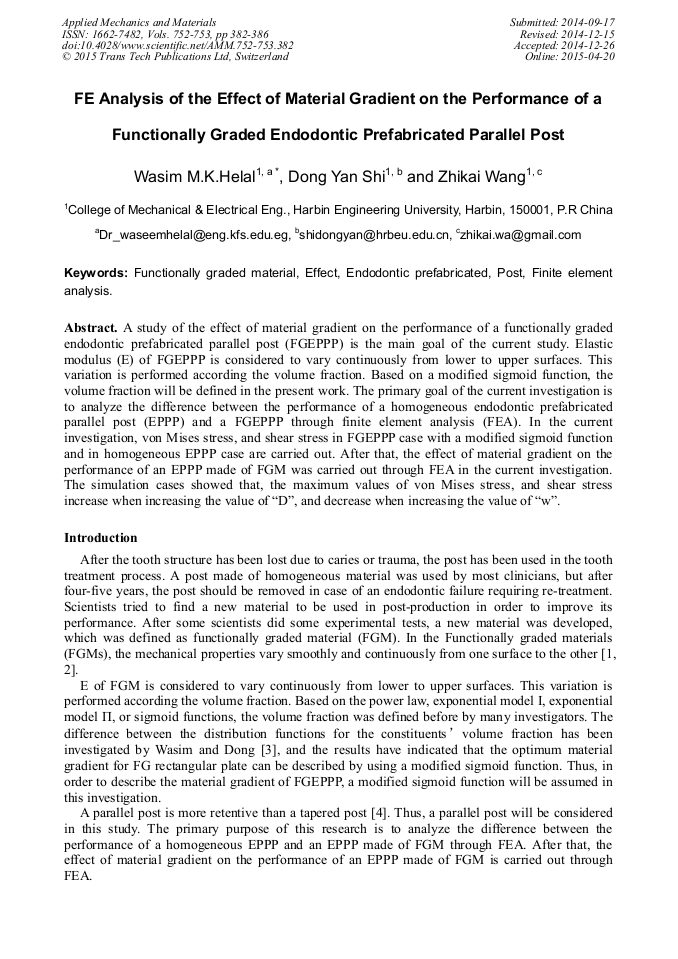

FE Analysis of the Effect of Material Gradient on the Performance of a Functionally Graded Endodontic Prefabricated Parallel Post

Abstract:

A study of the effect of material gradient on the performance of a functionally graded endodontic prefabricated parallel post (FGEPPP) is the main goal of the current study. Elastic modulus (E) of FGEPPP is considered to vary continuously from lower to upper surfaces. This variation is performed according the volume fraction. Based on a modified sigmoid function, the volume fraction will be defined in the present work. The primary goal of the current investigation is to analyze the difference between the performance of a homogeneous endodontic prefabricated parallel post (EPPP) and a FGEPPP through finite element analysis (FEA). In the current investigation, von Mises stress, and shear stress in FGEPPP case with a modified sigmoid function and in homogeneous EPPP case are carried out. After that, the effect of material gradient on the performance of an EPPP made of FGM was carried out through FEA in the current investigation. The simulation cases shown that, the maximum values of von Mises stress, and shear stress increase when increasing the value of “D”, and decrease when increasing the value of “w”.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 752-753)

Pages:

382-386

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.752-753.382

Citation:

Cite this paper

Online since:

April 2015

Authors:

Wasim M.K. Helal*, Dong Yan Shi, Zhi Kai Wang

Keywords:

Effect, Endodontic Prefabricated, Finite Element Analysis, Functionally Graded Material (FGM), Post

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Yamanoushi and M. Koizumi, Proceedings of the 1st International Symposium on Functionally Graded Materials, Sendai, Japan, (1991).

Google Scholar

[2] Y. Fukui, Fundamental Investigation of Functionally Gradient Material Manufacturing System using Centrifugal Force, JSME Int. J. 34 (1) (1991) 144 - 148.

DOI: 10.1299/jsmec1988.34.144

Google Scholar

[3] M.K.H. Wasim and D.Y. Shi, Optimum Material Gradient for Functionally Graded Rectangular Plate with the Finite Element Method, Indian J. of Mater. Sci. 2014 (2014) 7.

DOI: 10.1155/2014/501935

Google Scholar

[4] C. William, A review of the management of endodontically treated teeth: Post, core and the final restoration, J.A.D.A. 136 (2005) 611-619.

Google Scholar

[5] M.K.H. Wasim and D.Y. Shi, FE Analysis of Functionally Graded Material Plate During Debonding Case with Different Boundary Conditions, KEMs. 627 (2015) 57-60.

DOI: 10.4028/www.scientific.net/kem.627.57

Google Scholar
