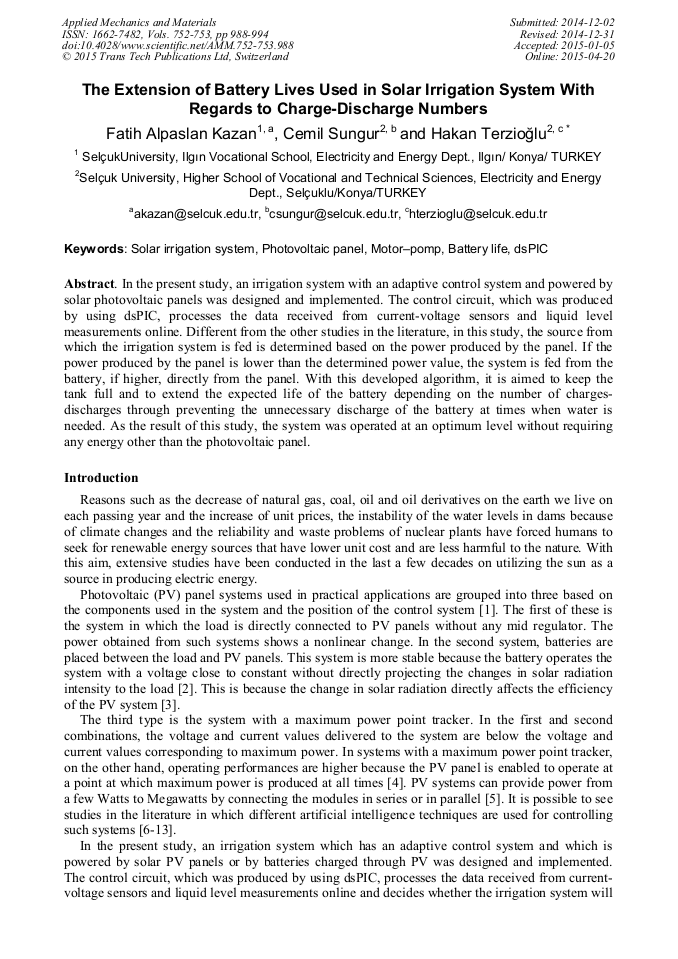

The Extension of Battery Lives Used in a Solar Irrigation System with Regards to Charge-Discharge Numbers

Abstract:

In the present study, an irrigation system with an adaptive control system and powered by solar photovoltaic panels was designed and implemented. The control circuit, which was produced by using dsPIC, performed the online processing of the data received from current-voltage sensors and liquid level measurements. Different from the other studies in the literature, in this study, the source from which the irrigation system is fed was determined based on the power produced by the panel. If the power produced by the panel was lower than the determined power value, the system was fed from the battery, if higher, directly from the panel. With this developed algorithm, it was aimed to keep the tank full and to extend the expected life of the battery in terms of the number of charges-discharges through preventing the unnecessary discharge of the battery at times when water was needed. As the result of this study, the system was operated at an optimum level without requiring any energy other than the photovoltaic panel.

• Periodical: Applied Mechanics and Materials (Volumes 752-753)
• Pages: 988-994
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.752-753.988
• Online since: April 2015
• Authors: Fatih Alpaslan Kazan, Cemil Sungur, Hakan Terzioğlu*
• Keywords: Battery Life, dsPIC, Motor–Pomp, Photovoltaic Panel, Solar Irrigation System

References

[1] J.A. Duffie and W.A. Beckman, Solar engineering of thermal processes, Wiley and Sons, New York, (1991) 216–230.

[2] V. Badescu, Dynamic model of a complex system including PV cells, electric battery, electrical motor and water pump, Energy, 28 (2003) 1165–1181.

DOI: 10.1016/s0360-5442(03)00115-4

[3] N. Hamrouni, M. Jraidi and A. Chérif, Theoretical and experimental analysis of the behaviour of a photovoltaic pumping system, Solar Energy, 83 (2009) 1335–1344.

DOI: 10.1016/j.solener.2009.03.006

[4] A.M. Zaki and M.N. Eskander, Matching of photovolatic motor-pump systems for maximum efficiency operation, Renew. Energy, 7 (1996) 279–288.

DOI: 10.1016/0960-1481(95)00133-6

[5] A.N. Celik, Present status of photovoltaic energy in Turkey and life cycle techno-economic analysis of a grid-connected photovoltaic-house, Renew. Sustai. Energy Rev. 10 (2006) 370-387.

DOI: 10.1016/j.rser.2004.09.007

[6] H.M. Mashaly, A.M. Sharaf, M. Mansour and A.A. El-Sattar, A photovoltaic maximum power tracking using neural networks, in Control Applications, 1994., Proceedings of the Third IEEE Conference on, (1994) 167–172.

DOI: 10.1109/cca.1994.381232

[7] T. Hiyama, S. Kouzuma, T. Imakubo and T. Ortmeyer, Evaluation of neural network based real time maximum power tracking controller for PV system, Energy Conversion, IEEE Transactions on, 10 (1995) 543–548.

DOI: 10.1109/60.464880

[8] M. Veerachary, T. Senjyu and K. Uezato, Neural-network-based maximum-power-point tracking of coupled-inductor interleaved-boost-converter-supplied PV system using fuzzy controller, Industrial Electronics, IEEE Transactions on, 50 (2003) 749–758.

DOI: 10.1109/tie.2003.814762

[9] E. Karatepe, M. Boztepe and M. Colak, Neural network based solar cell model, Energy Conversion Manage. 47 (2006) 1159–1178.

DOI: 10.1016/j.enconman.2005.07.007

[10] A. Karlis, T. Kottas and Y. Boutalis, A novel maximum power point tracking method for PV systems using fuzzy cognitive networks (FCN), Electric Power Syst. Res. 77 (2007) 315–327.

DOI: 10.1016/j.epsr.2006.03.008

[11] M.F. Tsai, C.S. Tseng, G.D. Hong and S.H. Lin, A novel MPPT control design for PV modules using neural network compensator, in Industrial Electronics (ISIE), 2012 IEEE International Symposium on, (2012) 1742–1747.

DOI: 10.1109/isie.2012.6237354

[12] M. Sheraz and M.A. Abido, An efficient MPPT controller using differential evolution and neural network, in IEEE Int. Conf. on Power and Energy, (2012) 378–383.

DOI: 10.1109/pecon.2012.6450241

[13] L.L. Jiang, D. Nayanasiri, D.L. Maskell and D. Vilathgamuwa, A simple and efficient hybrid maximum power point tracking method for PV systems under partially shaded condition, in Industrial Electronics Society, IECON 2013–39th Annual Conference of the IEEE, (2013).

DOI: 10.1109/iecon.2013.6699357
