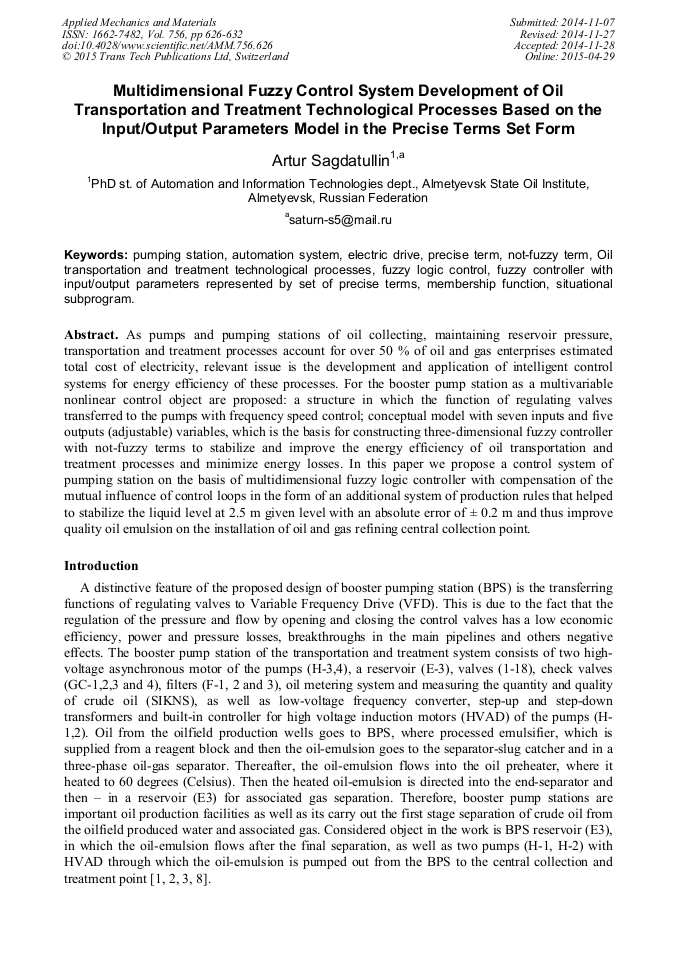

Multidimensional Fuzzy Control System Development of Oil Transportation and Treatment Technological Processes Based on the Input/Output Parameters Model in the Precise Terms Set Form

Abstract:

As pumps and pumping stations of oil collecting, maintaining reservoir pressure, transportation and treatment processes account for over 50 % of oil and gas enterprises estimated total cost of electricity, relevant issue is the development and application of intelligent control systems for energy efficiency of these processes. For the booster pump station as a multivariable nonlinear control object are proposed: a structure in which the function of regulating valves transferred to the pumps with frequency speed control; conceptual model with seven inputs and five outputs (adjustable) variables, which is the basis for constructing three-dimensional fuzzy controller with not-fuzzy terms to stabilize and improve the energy efficiency of oil transportation and treatment processes and minimize energy losses. In this paper we propose a control system of pumping station on the basis of multidimensional fuzzy logic controller with compensation of the mutual influence of control loops in the form of an additional system of production rules that helped to stabilize the liquid level at 2.5 m given level with an absolute error of ± 0.2 m and thus improve quality oil emulsion on the installation of oil and gas refining central collection point.

• Periodical: Applied Mechanics and Materials (Volume 756)
• Pages: 626-632
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.756.626
• Online since: April 2015
• Authors: Artur Sagdatullin*
• Keywords: Automation system, Electric Drive, Fuzzy Controller with Input Parameters Represented by Set of Precise Terms, Fuzzy Controller with Output Parameters Represented by Set of Precise Terms, Fuzzy Logic Control, Membership Function, Not-Fuzzy Term, Oil Transportation, Precise Term, Pumping Station, Situational Subprogram, Treatment Technological Processes

References

[1] A.M. Sagdatullin, A.A. Emekeev, The scheme of integrated automation of electric drive pumping station, Russian Federation Patent № 136504, application № 2013131974/07 (047770), Priority date: 09. 07. (2013).

[2] By using MFCwPT – 1 A.M. Sagdatullin, A.I. Kayashev, A.A. Emekeev, Russian Federation Patent № 140350, application № 2013151910/07 (080943), The soft starter and control of group high-voltage induction motors modes, Published: 10. 05. 2014, Bull. N 13.

[3] By using MFCwPT – 1 A.M. Sagdatullin, A.I. Kayashev, A.A. Emekeev, Simulation system of manufacturing processes control the high voltage induction motor, Patent Certificate № 2014615757. Date from 04. 04. 2014, Moscow, Rospatent, (2014).

[4] By using MFCwPT – 1 A.P. Verevkin, O.V. Kiryushin, Automation of technological processes and industries in oil refinary and petrochemical industries, UGNTU publishing office, Ufa, (2005).

[5] A.F. Antipin, A comparative analysis of discrete-logic controller speed, Software and Systems. 89 (2010) 75-77.

[6] A.I. Kayashev, A.A. Emekeev, A.M. Sagdatullin, Analysis of pumping station high-voltage electric drives automation systems energy efficiency, Gas industry. 699 (2013) 47-50.

[7] A.I. Kayashev, A.A. Emekeev, A.M. Sagdatullin, Automation of pumping station electric drive on the basis of multidimensional fuzzy logic controller, Automation, remote control and communication in the oil industry. 4 (2014) 30-34.

[8] V.I. Gostev, Design of fuzzy controllers for automatic control systems, BHV-Petersburg, St. Petersburg, (2011).

[9] A.M. Sagdatullin, Analysis of energy intensity of collection and treatment system processes at the Oil and Gas enterprises, Oil Petroleum Engineering. 6 (2014) 51-55.

[10] A.M. Sagdatullin, Analytical study of the pumping station automated electric drive systems, News of Higher Schools, Volga region, Technical Sciences. 30 (2014) 89-99.

[11] A.M. Sagdatullin, Improving the efficiency of oil and gas development on the basis of intelligent systems, Drilling and Oil. 7-8 (2014) 42-45.

[12] V. Vasilyev I, B.G. Ilyasov, Intelligent control systems, Theory and Practice, Radiotechnika, Moscow, (2009).
