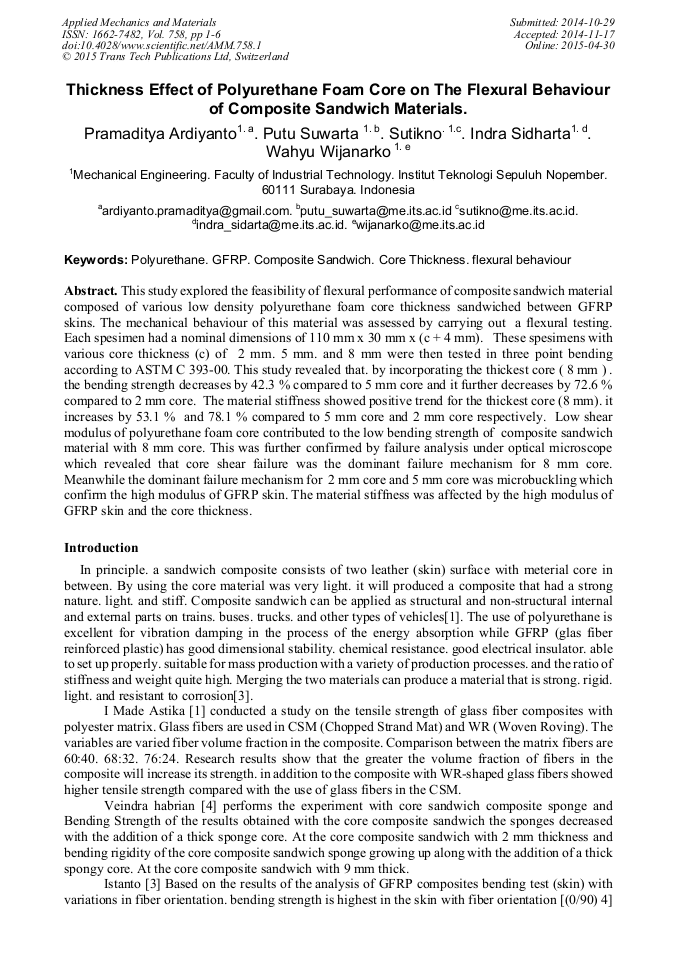

Thickness Effect of Polyurethane Foam Core on the Flexural Behaviour of Composite Sandwich Materials

Abstract:

This study explored the feasibility of flexural performance of composite sandwich material composed of various low density polyurethane foam core thickness sandwiched between GFRP skins. The mechanical behaviour of this material was assessed by carrying out a flexural testing. Each spesimen had a nominal dimensions of 110 mm x 30 mm x (c + 4 mm). These spesimens with various core thickness (c) of 2 mm. 5 mm. and 8 mm were then tested in three point bending according to ASTM C 393-00. This study revealed that. by incorporating the thickest core ( 8 mm ) . the bending strength decreases by 42.3 % compared to 5 mm core and it further decreases by 72.6 % compared to 2 mm core. The material stiffness showed positive trend for the thickest core (8 mm). it increases by 53.1 % and 78.1 % compared to 5 mm core and 2 mm core respectively. Low shear modulus of polyurethane foam core contributed to the low bending strength of composite sandwich material with 8 mm core. This was further confirmed by failure analysis under optical microscope which revealed that core shear failure was the dominant failure mechanism for 8 mm core. Meanwhile the dominant failure mechanism for 2 mm core and 5 mm core was microbuckling which confirm the high modulus of GFRP skin. The material stiffness was affected by the high modulus of GFRP skin and the core thickness.

• Periodical: Applied Mechanics and Materials (Volume 758)
• Pages: 1-6
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.758.1
• Online since: April 2015
• Authors: Pramaditya Ardiyanto, Putu Suwarta, Sutikno Sutikno*, Indra Sidharta, Wahyu Wijanarko
• Keywords: Composite Sandwich, Core Thickness, Flexural Behavior, GFRP, Polyurethane

References

[1] Astika. I.M. Studi Eksperimental Karakteristik Tarik dan Lelah Pada Komposit Dengan Serat WR dan CSM. Tesis. Jurusan Teknik Mesin ITS (2007).

DOI: 10.29303/d.v4i2.55

[3] Istanto dkk. OPTIMASI PENGARUH ORIENTASI SERAT DAN TEBAL CORE TERHADAP PENINGKATAN KEKUATAN BENDING DAN IMPAK KOMPOSIT SANDWICH GFRP DENGAN CORE PVC. PS Teknik Mesin. Universitas Sebelas Maret.

DOI: 10.29303/d.v2i1.109

[4] Harbrian. Viendra. Pengaruh Ketebalan Inti (core) Terhadap Kekuatan Bending Kompisit Sandwich Serat E-glass Chopped Strand Mat-Unsaturated Polyester Resin Denfan Inti Spon. Skripsi. Fakultas Teknik Universitas Negri Semarang (2007).

DOI: 10.20885/teknoin.vol21.iss1.art6

[5] Gurit. 2014. Guide to Composite, <URL: http: /www. gurit. com/files/documents/guide-to-compositesv5webpdf. pdf>.

[6] Carlsson. and G.A. Kardomates structural failure mecanics of composit sandwich, (2010).

[7] Sandy. N.P. Pengaruh Penambahan Prosentase Fraksi Volume Hollow Glass Microsphere Komposit Hibrid Sandwich Terhadap Karakteristik Tarik Dan Bending. Tugas Akhir. Jurusan Teknik Mesin ITS (2013).

[8] Annual Book of ASTM Standards. D 790M-84. Standard Test Method for Flexural and Reinforced Plastics and Electrical Insulating Materials (Metric). American Society for Testing and Materials (1984).

[9] ASTM. 1998. Annual Book of ASTM Standart Section 4. Vol. 13. ASTM. New York. C 393 – 94.
