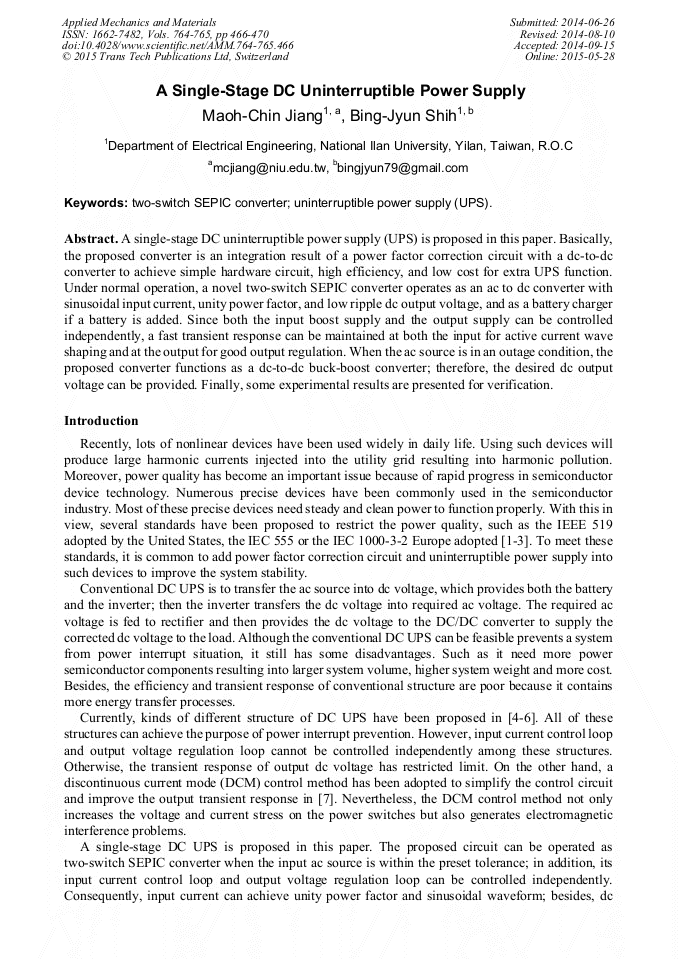

A Single-Stage DC Uninterruptible Power Supply

Abstract:

A single-stage DC uninterruptible power supply (UPS) is proposed in this paper. Basically, the proposed converter is an integration result of a power factor correction circuit with a dc-to-dc converter to achieve simple hardware circuit, high efficiency, and low cost for extra UPS function. Under normal operation, a novel two-switch SEPIC converter operates as an ac to dc converter with sinusoidal input current, unity power factor, and low ripple dc output voltage, and as a battery charger if a battery is added. Since both the input boost supply and the output supply can be controlled independently, a fast transient response can be maintained at both the input for active current wave shaping and at the output for good output regulation. When the ac source is in an outage condition, the proposed converter functions as a dc-to-dc buck-boost converter; therefore, the desired dc output voltage can be provided. Finally, some experimental results are presented for verification.

• Periodical: Applied Mechanics and Materials (Volumes 764-765)
• Pages: 466-470
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.764-765.466
• Online since: May 2015
• Authors: Maoh Chin Jiang*, Bing Jyun Shih
• Keywords: Two-Switch SEPIC Converter, Uninterruptible Power Supply (UPS)

References

[1] N. Mohan, T.M. Undeland and W.P. Robbins, in: Power electronics: converters, applications and design, John Wiley and Sons (2003).

[2] M. M. Cameron: Trends in power factor correction with harmonic filtering, IEEE Transactions on Industry Applications, (1993), Vol. 29, pp.60-65.

DOI: 10.1109/28.195889

[3] C. K. Dufley and R. P. Stratford: Update of harmonic standard IEEE-519 IEEE recommended practices and requirements for harmonic control in electric power systems, IEEE/IAS, (1998).

DOI: 10.1109/ias.1989.96858

[4] K.W. Ma and Y.S. Lee: A novel uninterruptible dc-dc converter for UPS applications, IEEE Transactions on Industry Application, (1992), Vol. 28.

DOI: 10.1109/28.148446

[5] E. Rodriguez and J. Arau: A novel DC-UPS with power factor correction in a single structure, IEEE Power Electronics Specialists Conference, (1996), pp.1838-1843.

DOI: 10.1109/pesc.1996.548831

[6] G. W. Moon: Novel single-stage, single-switch, AC/DC converter with magnetic energy feedback technique for power factor correction, IEE Proc. -Electr. Power Appl., (1999), Vol. 146.

DOI: 10.1049/ip-epa:19990196

[7] C. T. Pan, J. J. Shieh, J. S. Lin and M. C. Jiang: A novel uninterruptible power supply, Proc. of the 17th Symposium on Electrical Power Engineering, (1996), pp.792-797.

[8] H. Y. Chu, H. L. Jou and C. H. Huang: Transient response of a peak voltage detector for sinusoidal signals, IEEE Trans. Ind. Electron., (1992), Vol. 39, pp.74-79.

DOI: 10.1109/41.121914
