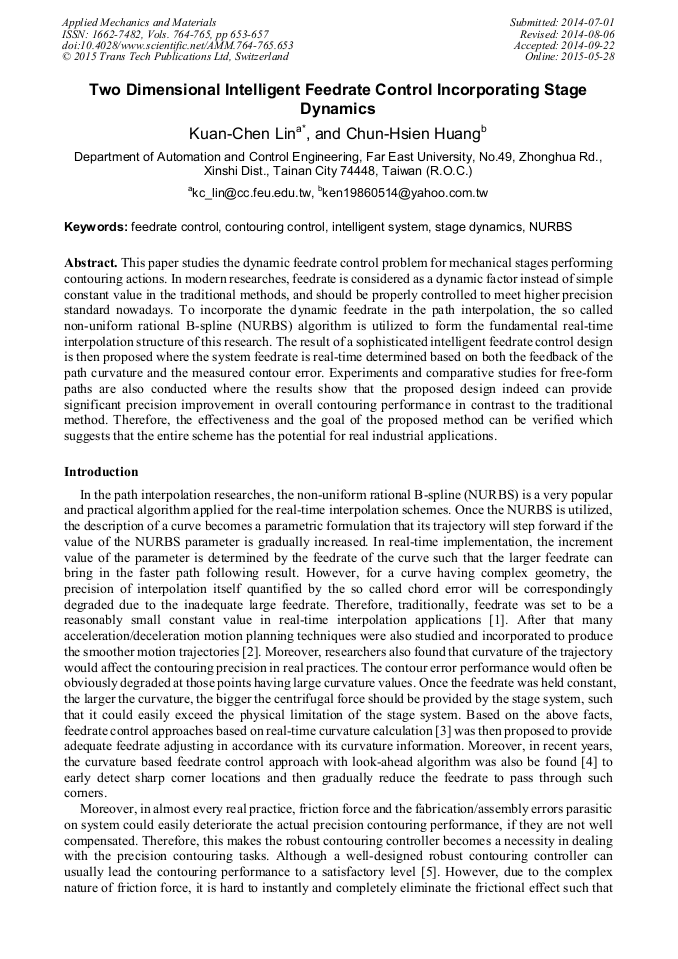

Two Dimensional Intelligent Feedrate Control Incorporating Stage Dynamics

Abstract:

This paper studies the dynamic feedrate control problem for mechanical stages performing contouring actions. In modern researches, feedrate is considered as a dynamic factor instead of simple constant value in the traditional methods, and should be properly controlled to meet higher precision standard nowadays. To incorporate the dynamic feedrate in the path interpolation, the so called non-uniform rational B-spline (NURBS) algorithm is utilized to form the fundamental real-time interpolation structure of this research. The result of a sophisticated intelligent feedrate control design is then proposed where the system feedrate is real-time determined based on both the feedback of the path curvature and the measured contour error. Experiments and comparative studies for free-form paths are also conducted where the results show that the proposed design indeed can provide significant precision improvement in overall contouring performance in contrast to the traditional method. Therefore, the effectiveness and the goal of the proposed method can be verified which suggests that the entire scheme has the potential for real industrial applications.

• Periodical: Applied Mechanics and Materials (Volumes 764-765)
• Pages: 653-657
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.764-765.653
• Online since: May 2015
• Authors: Kuan Chen Lin*, Chun Hsien Huang
• Keywords: Contouring Control, Feedrate Control, Intelligent System, NURBS, Stage Dynamics

References

[1] J.J. Chou and D.C.H. Yang: J. Engin. Indus. Trans. ASME Vol. 113 (1991), p.305.

[2] S.Y. Dong and J.J. Gi: Proc. IEEE Int. Symp. Intel. Cont. (ISIC) Greece (2000), p.279.

[3] X. Zhiming, C. Jincheng and F. Zhengjin: Int. J. Adv. Manu. Tech. Vol. 20 (2002), p.270.

[4] M.T. Lin, M.S. Tsai and H.T. Yau: Int. J. Mach. Tools Manu. Vol. 47 (2007), p.2246.

[5] C.L. Chen and K.C. Lin: IEEE Trans. Cont. Sys. Tech. Vol. 16, No. 2 (2008), p.322.

[6] K.C. Lin, C.H. Huang, Y.M. Tsao, J.C. Wang and T.M. Chiu: IEEE Proc. Int. Symp. Comp. Com., Cont. Auto. (3CA) Taiwan (2010).
