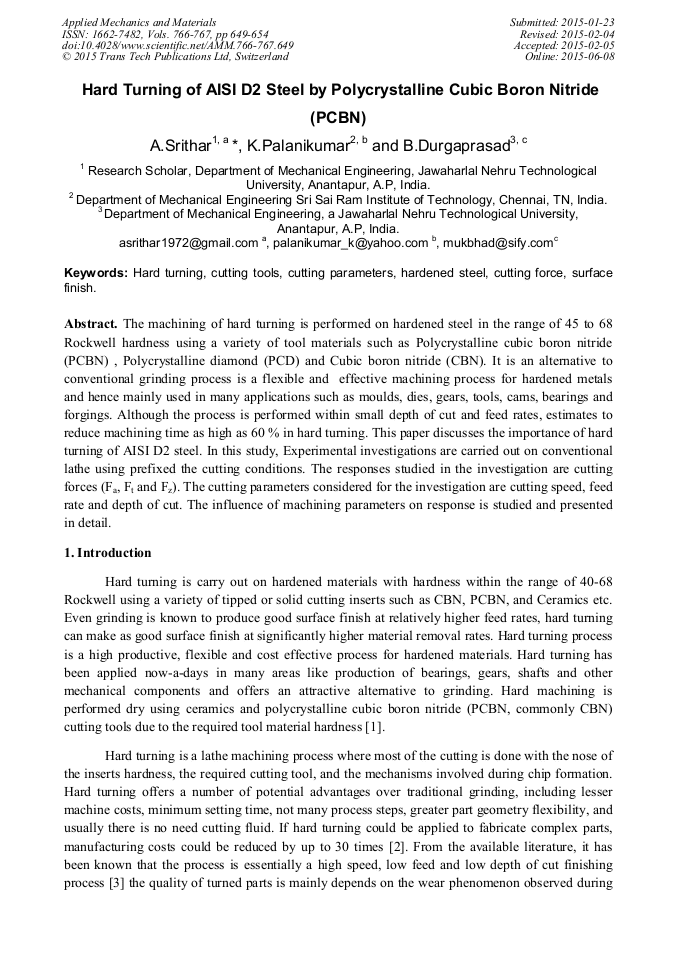

Hard Turning of AISI D2 Steel by Polycrystalline Cubic Boron Nitride (PCBN)

Abstract:

The machining of hard turning is performed on hardened steel in the range of 45 to 68 Rockwell hardness using a variety of tool materials such as Polycrystalline cubic boron nitride (PCBN) , Polycrystalline diamond (PCD) and Cubic boron nitride (CBN). It is an alternative to conventional grinding process is a flexible and effective machining process for hardened metals and hence broadly used in various applications such as dies, moulds, tools, gears, cams, shafts, axles, bearings and forgings. Although the process is performed within small depth of cut and feed rates, estimates to reduce machining time as high as 60 % in hard turning. This paper discusses the importance of hard turning of AISI D2 steel. In this study, Experimental investigations are carried out on conventional lathe using prefixed the cutting conditions. The responses studied in the investigation are cutting forces (F_a, F_t and F_z). The cutting parameters considered for the investigation are cutting speed, feed and depth of cut. The influence of machining parameters on response is studied and presented in detail.

• Periodical: Applied Mechanics and Materials (Volumes 766-767)
• Pages: 649-654
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.766-767.649
• Online since: June 2015
• Authors: A. Srithar*, K. Palanikumar, B. Durgaprasad
• Keywords: Cutting Force, Cutting Parameters, Cutting Tools, Hard Turning, Hardened Steel, Surface Finish

References

[1] W. Koenig, R. Komanduri, H.K. Toenshoff, G. Ackeshott, Machining of hard metals, Ann. CIRP 33/2 (1984) 417–427.

[2] Y. Huang, Y.K. Chou, Y.S. Liang, CBN tool wear in hard turning: a survey on research progresses, Int. J. Adv. Manuf. Technol. 35 (2006) 443–453.

DOI: 10.1007/s00170-006-0737-6

[3] Lima, J.G., Avila, R.F., Abr˜ao, A.M., Faustino, M., Paulo Davim, J., Hard turning: AISI 4340 high strength low alloy steel and AISI D2 cold work tool steel. J. Mater. Process. Technol. 169, (2005)388–395.

DOI: 10.1016/j.jmatprotec.2005.04.082

[4] Gérard Poulachon , B.P. Bandyopadhyay , I.S. Jawahir , Sébastien Pheulpin , Emmanuel Seguin, Wear behavior of CBN tools while turning various hardened steels , Wear 256 (2004) 302–310.

DOI: 10.1016/s0043-1648(03)00414-9

[5] J.D. Thiele, S.N. Melkote, Effect of cutting edge geometry and workpiece hardness on surface generation in the finish hard turning of AISI 52100 steel, J. Mater. Process. Technol. 94 (1999) 216–226.

DOI: 10.1016/s0924-0136(99)00111-9

[6] Gaurav Bartarya, S.K. Choudhury, Effect of cutting parameters on cutting force and surface roughness during finish hard turning AISI52100 grade steel, Procedia CIRP 1 ( 2012 ) 651 – 656.

DOI: 10.1016/j.procir.2012.05.016

[7] Ashok Kumar Sahoo , Bidyadhar Sahoo , Experimental investigations on machinability aspects in finish hard turning of AISI 4340 steel using uncoated and multilayer coated carbide inserts , Measurement 45 (2012) 2153–2165.

DOI: 10.1016/j.measurement.2012.05.015

[8] Banga, G.C., Abr˜ao, A.M., Turning of hardened 100Cr6 bearing steel with ceramic and PCBN cutting tools. J. Mater. Process. Technol. 143–144, (2003) 237–241.

DOI: 10.1016/s0924-0136(03)00346-7

[9] Yallese, M.A., Rigal, J. -F., Chaoui, K., Boulanouar, L., The effects of cutting conditions on mixed ceramic and cubic boron nitride tool and on surface roughness during machining of X200Cr12 steel (60 HRC). Proc. I Mech. E 219 (Part B), (2005).

DOI: 10.1243/095440505x8082
