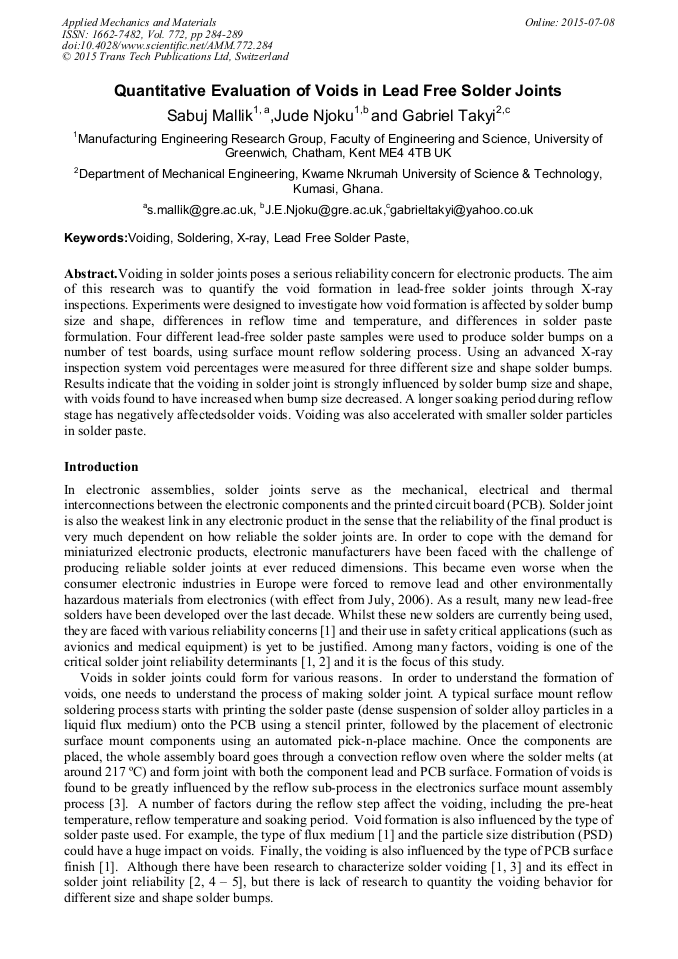

Quantitative Evaluation of Voids in Lead Free Solder Joints

Abstract:

Voiding in solder joints poses a serious reliability concern for electronic products. The aim of this research was to quantify the void formation in lead-free solder joints through X-ray inspections. Experiments were designed to investigate how void formation is affected by solder bump size and shape, differences in reflow time and temperature, and differences in solder paste formulation. Four different lead-free solder paste samples were used to produce solder bumps on a number of test boards, using surface mount reflow soldering process. Using an advanced X-ray inspection system void percentages were measured for three different size and shape solder bumps. Results indicate that the voiding in solder joint is strongly influenced by solder bump size and shape, with voids found to have increased when bump size decreased. A longer soaking period during reflow stage has negatively affectedsolder voids. Voiding was also accelerated with smaller solder particles in solder paste.

You might also be interested in these eBooks

Advanced Research in Aerospace, Robotics, Manufacturing Systems, Mechanical Engineering and Bioengineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 772)

Pages:

284-289

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.772.284

Citation:

Cite this paper

Online since:

July 2015

Authors:

Sabuj Mallik, Jude Njoku, Gabriel Takyi

Keywords:

Lead Free Solder Paste, Soldering, Voiding, X-Ray

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Currie, Lead-Free Solder Joint Voiding: The Causes are Starting to Surface (2006), Available at: http: /www. circuitnet. com/pdf/henkel_lead_free_solder_joint_voiding. pdf (accessed 22 August 2014).

Google Scholar

[2] R. Coyle, P. Read, R. Popowich, H. McCormick and J. Osenbach: Proceedings of SMTAI (2010).

Google Scholar

[3] G. Pandiarajan, S. Iyer, G. Chennagiri, R. Havens and K. Srihari: Proceedings of ECTC, 1777 – 1782 (2013).

Google Scholar

[4] Z. Bin and Q. Baojun: Proceedings of EPTC, p.704 – 708 (2008).

Google Scholar

[5] D. Hillman, D. Adams, T. Pearson, B. Williams, B. Petrick, R. Wilcoxon, R. Collins, D. Bernard, J. Travis, E. Krastev and V. Bastin: The Last Will and Testament of the BGA Void, Available at: http: /www. ipcoutlook. org/pdf/last_testament_bga_void_smta. pdf (accessed 22 August 2014).

Google Scholar

[6] S. Mallik: Study of the Time-dependent Rheological Behaviour of Lead-free Solder Pastes and Flux Mediums used for Flip-Chip Assembly Applications, PhD Thesis, University of Greenwich, UK (2009).

DOI: 10.1109/estc.2008.4684527

Google Scholar
