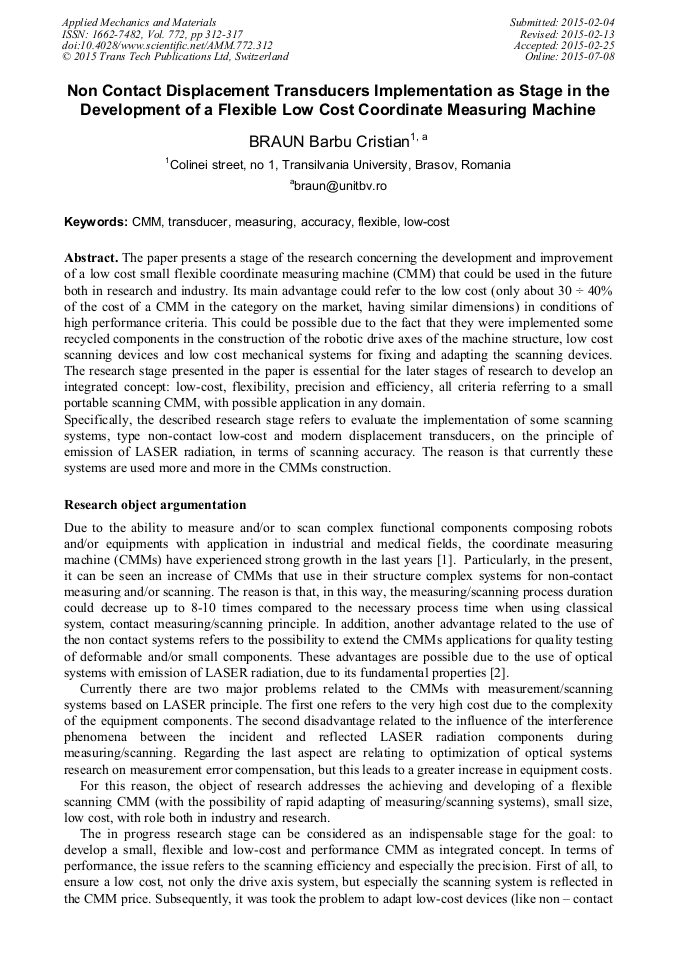

Non Contact Displacement Transducers Implementation as Stage in the Development of a Flexible Low Cost Coordinate Measuring Machine

Abstract:

The paper presents a stage of the research concerning the development and improvement of a low cost small flexible coordinate measuring machine (CMM) that could be used in the future both in research and industry. Its main advantage could refer to the low cost (only about 30 ÷ 40% of the cost of a CMM in the category on the market, having similar dimensions) in conditions of high performance criteria. This could be possible due to the fact that they were implemented some recycled components in the construction of the robotic drive axes of the machine structure, low cost scanning devices and low cost mechanical systems for fixing and adapting the scanning devices. The research stage presented in the paper is essential for the later stages of research to develop an integrated concept: low-cost, flexibility, precision and efficiency, all criteria referring to a small portable scanning CMM, with possible application in any domain. Specifically, the described research stage refers to evaluate the implementation of some scanning systems, type non-contact low-cost and modern displacement transducers, on the principle of emission of LASER radiation, in terms of scanning accuracy. The reason is that currently these systems are used more and more in the CMMs construction.

• Periodical: Applied Mechanics and Materials (Volume 772)
• Pages: 312-317
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.772.312
• Online since: July 2015
• Authors: Barbu Cristian Braun*
• Keywords: Accuracy, CMM, Flexible, Low-Cost, Measuring, Transducer

References

[1] B.C. Braun, C.N. Druga: Low – cost CNC dimensional inspection gauges improving, 5th International Conference Advanced Composite Materials Engineering, COMAT, 16-17 October 2014, Brasov, Romania, ISBN: 978-606-19-0411-2, pp.54-59.

[2] M. I. Baritz, M. Conte, I. C. Rosca: Surface Deformations Analysis by Double Exposure Holography Using Guided Waves and Image Processing, Interferometry in Speckle Light, Springer Berlin Heidelberg, 2000, pp.161-168.

DOI: 10.1007/978-3-642-57323-1_20

[3] Yamaha: Single-axis robot, http: /www. yamaharobotics. com/Catalog/PDF/CurrentManuals/ Discontinued/ T4-T5_E_V2. 01. pdf , (2013).

[4] Yamaha: Robot user's manual, YAMAHA, (2008).

[5] I. Pirvulescu: Studies and research on optimizing training in translational applications in industry, Diploma Project, Transilvania University of Brasov, (2014).

[6] W. Cuypers, V. G. N. Gestel, A. Voet, J. Kruth, P. Bleys: Optical measurement techniques for mobile and large scale dimensonal metrology, Optics and LASERs in Engineering, vol. 47, nr. 3, 4, pag. 293, 294, (2009).

DOI: 10.1016/j.optlaseng.2008.03.013

[7] M. I. Baritz: Structural analysis by image processing of the multilayer ophthalmic polycarbonate lenses behavior during mechanical factors aggression – Metalurgia International 15, pp.121-126.

[8] PC-DMIS basic. Software manual for DEA GLOBAL CMM: Course notes, pp.72-77, (2010).

[9] HEIDENHAIN - Langen messen. Messgerate fur das Messen von Langen, www. heidenhain. de - February (2006).

[10] OMRON: Industrial Automation. Sensors, www. omron. com - June (2007).
