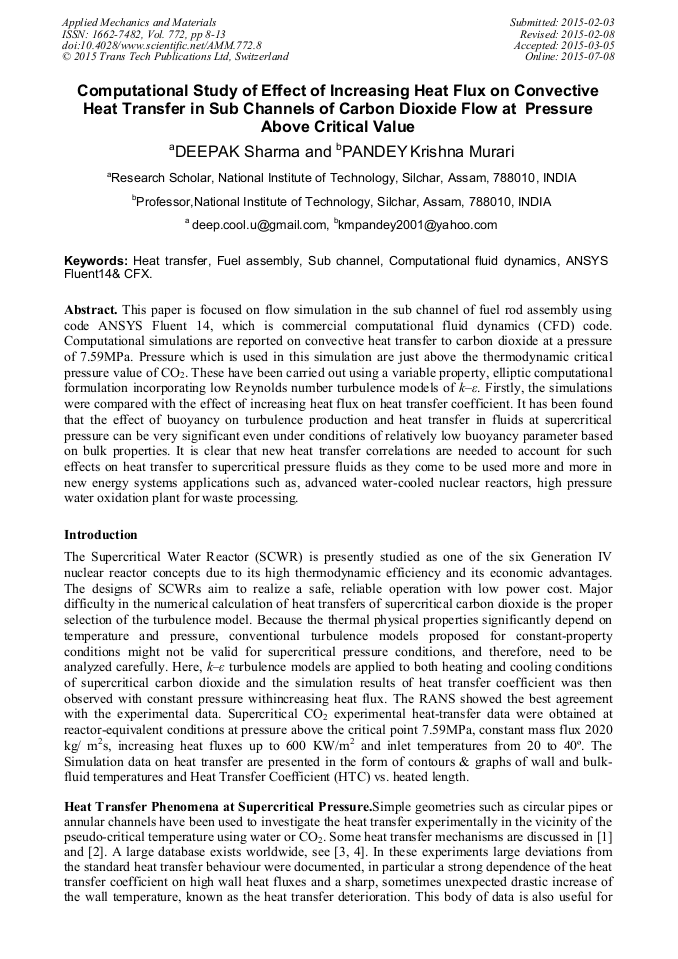

Computational Study of Effect of Increasing Heat Flux on Convective Heat Transfer in Sub Channels of Carbon Dioxide Flow at Pressure above Critical Value

Abstract:

This paper is focused on flow simulation in the sub channel of fuel rod assembly using code ANSYS Fluent 14, which is commercial computational fluid dynamics (CFD) code. Computational simulations are reported on convective heat transfer to carbon dioxide at a pressure of 7.59MPa. Pressure which is used in this simulation are just above the thermodynamic critical pressure value of CO₂. These have been carried out using a variable property, elliptic computational formulation incorporating low Reynolds number turbulence models of k–ε. Firstly, the simulations were compared with the effect of increasing heat flux on heat transfer coefficient. It has been found that the effect of buoyancy on turbulence production and heat transfer in fluids at supercritical pressure can be very significant even under conditions of relatively low buoyancy parameter based on bulk properties. It is clear that new heat transfer correlations are needed to account for such effects on heat transfer to supercritical pressure fluids as they come to be used more and more in new energy systems applications such as, advanced water-cooled nuclear reactors, high pressure water oxidation plant for waste processing.

• Periodical: Applied Mechanics and Materials (Volume 772)
• Pages: 8-13
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.772.8
• Online since: July 2015
• Authors: Deepak Sharma, Krishna Murari Pandey*
• Keywords: ANSYS Fluent14& CFX, Computational Fluid Dynamics, Fuel Assembly, Heat Transfer, Sub Channel

References

[1] B.S. Shiralkar and P. Griffith: Deterioration Heat Transfer to Fluids at Supercritical Pressure and High Fluxes, Journal of Heat Transfer, 27-36 (1969).

DOI: 10.1115/1.3580115

[2] J.D. Jackson, W.B. Hall.: Forced convection Heat transfer to fluids at supercritical pressure, Turbulent forced convection in channels and bundles, Hemisphere Publishing Corporation, 563-611 (1979).

[3] I.L. Pioro, H.F. Khartabil and R.B. Duffey: Heat Transfer to Supercritical Fluids flowing in Channels- empirical Correlations (Survey), Nuclear Engineering and Design 230, 2006, 69-91.

DOI: 10.1016/j.nucengdes.2003.10.010

[4] Pioro and Duffey: Heat Transfer and Hydraulic Resistance at Supercritical Pressures in Power-Engineering Applications, ASME Press, New York, NY (2007).

DOI: 10.1115/1.802523

[5] V.G. Razumovskiy, A.P. Ornatskiy, and Y.M. Mayevskiy: Local Heat Transfer and Hydraulic Behavior in Turbulent Channel Flow of Water at Supercritical Pressure, Heat Trasfer-Sov. Res. 22, 91-102 (1990).

[6] Shitsman M.E., Impairment of the transmission at supercritical pressures, TeplofizikaVysokih Temperature, Vol. 1 No. 2, pp.237-244 (1963).

[7] A.A. Bishop, F.J. Krambeck, R.O. Sandberg, High temperature supercritical water loop -PART III- Forced convection heat transfer to superheated steam at high pressure and high Prandtl numbers, Westinghouse, WCAP-2056 Part (1964).

[8] H. Herkenrath, P. Mörk-Mörkenstein, U. Jung, F. -J. Weckmann, Wärmeübergang an WasserbeiErzwungenerStrömungimDruckbereichvon 140 bis 250 bar, EURATOM, EUR 3658 d (1967).

[9] A.P. Ornatskii, L.F. Glushchenko and S.I. Kalachev: Heat Transfer with Rising and Falling Flows of Water in Tubes of Small Diameter at Supercritical Pressures, Teploenergetika, 1971 18 (5) 91-93.

[10] K. Yamagata, K. Nishikawa, S. Hasegawa, I. Fujii, and S. Yoshida: Forced Convective Heat Transfer to Supercritical Water Flowing in Tubes: Int. J. Heat Mass Transfer 15, 2575-2593 (1972).

DOI: 10.1016/0017-9310(72)90148-2

[11] M. F. Loewenberg, E. Laurien, A. Class, Th. Schulenberg: Supercritical water heat transfer in vertical tubes: A look-up table, Prog. Nucl. Energy 50 (2008), 532-538.

DOI: 10.1016/j.pnucene.2007.11.037

[12] D. M. McEligot, C.W. Coons and H.C. Perkins: Relaminarization in Tubes, Int. J. Heat and Mass Transfer 13, 431-433 (1969).

DOI: 10.1016/0017-9310(70)90118-3

[13] H. Kim, Y.Y. Bae, H.Y. Kim, J.H. Song, and B.H. Cho: Experimental Investigation on the Heat Transfer Characteristics in a vertical Upward Flow of Supercritical CO2, Proc. ICAPP 06, Reno, NV, USA, June 4-9, (2006).

[14] J.K. Kim, H.K. Kyu, and J.K. Lee: Wall temperature measurements and heat transfer correlation of turbulent supercritical carbon dioxide flow in vertical circular(non-circular tubes, Nucl. Eng. Des. 237, 1795-1802 (2007).

DOI: 10.1016/j.nucengdes.2007.02.017

[15] Y. Bae and H. Kim: Convective heat transfer to CO2 at supercritical pressure flowing vertically upward in tubes and annular channel, Experimental Thermal and Fluid Science 33, 329-339 (2009).

DOI: 10.1016/j.expthermflusci.2008.10.002

[16] B.E. Launder and B.I. Sharma, Application of the energy-dissipation model ofturbulence to the calculation of flow near a spinning disc, Letters in Heat and Mass Transfer, vol. 1, Dec. (1974).

DOI: 10.1016/0094-4548(74)90150-7
