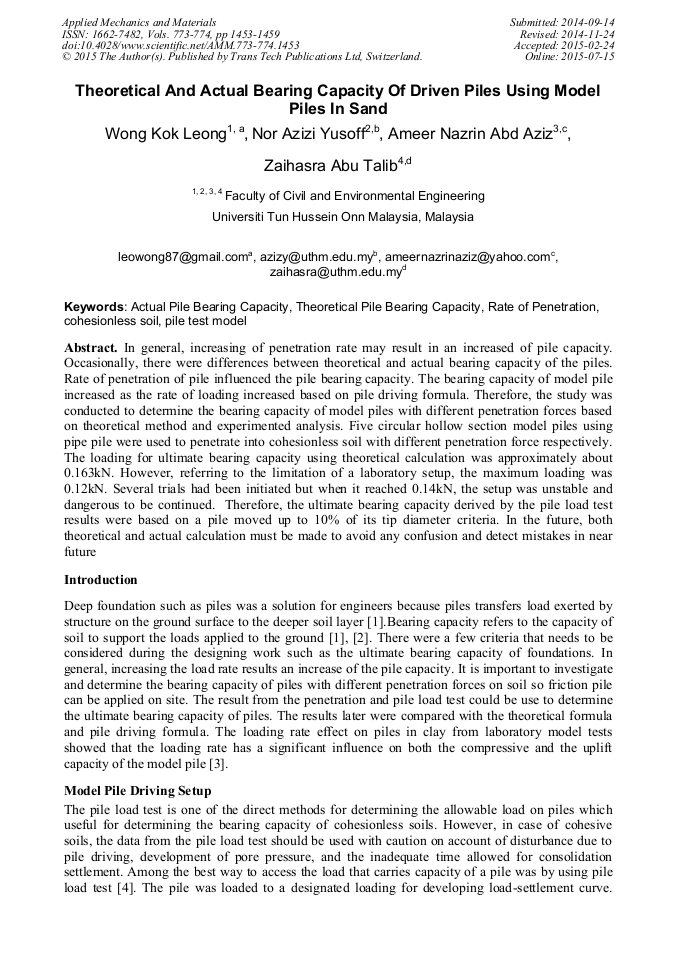

Theoretical and Actual Bearing Capacity of Driven Piles Using Model Piles in Sand

Abstract:

In general, increasing of penetration rate may result in an increased of pile capacity. Occasionally, there were differences between theoretical and actual bearing capacity of the piles. Rate of penetration of pile influenced the pile bearing capacity. The bearing capacity of model pile increased as the rate of loading increased based on pile driving formula. Therefore, the study was conducted to determine the bearing capacity of model piles with different penetration forces based on theoretical method and experimented analysis. Five circular hollow section model piles using pipe pile were used to penetrate into cohesionless soil with different penetration force respectively. The loading for ultimate bearing capacity using theoretical calculation was approximately about 0.163kN.However, referring to the limitation of a laboratory setup, the maximum loading was 0.12kN. Several trials had been initiated but when it reached 0.14kN, the setup was unstable and dangerous to be continued. Therefore, the ultimate bearing capacity derived by the pile load test results were based on a pile moved up to 10% of its tip diameter criteria. In the future, both theoretical and actual calculation must be made to avoid any confusion and detect mistakes in near future.

• Periodical: Applied Mechanics and Materials (Volumes 773-774)
• Pages: 1453-1459
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.773-774.1453
• Online since: July 2015
• Authors: Wong Kok Leong*, Nor Azizi Yusoff, Ameer Nazrin Abd Aziz, Zaihasra Abu Talib
• Keywords: Actual Pile Bearing Capacity, Cohesionless Soil, Pile Test Model, Rate of Penetration, Theoretical Pile Bearing Capacity

References

[1] U.C. Kalita: Soil Mechanics & Foundation Engineering. Eastern Economy ed. Asoke K. Ghosh, PHI Learning Private Limited, New Delhi. (2011) pp.178-194.

[2] B.M. Das: Principles of Foundation Engineering. 7th ed (2011).

[3] A.I. Al-Mhaidib: Experimental investigation of the behaviour of pile groups in sand under different loading rates. Geotechnical and Geological Engineering (2006) pp.889-902.

DOI: 10.1007/s10706-005-7466-8

[4] ASTM Standard Method of Testing Piles under Axial Compressive Load (D1143-87). In 1994 Annual Book of ASTM Standards, Sect. 4, Vol. 04. 08, ASTM, Philadelphia.

[5] E. Uncuoglu, M. Laman: Lateral Resistance of a Short Rigid Pile In a Two –Layer Cohesionless Soil. Eriyes University and Osmaniye Korkut Ata University. Turkey (2011).

[6] V.A. Vesic: Design of Pile Foundation, National Cooperative Highway Research Program, Synthesis of Highway Practice No. 42, Transportation Research Board, Washington, D.C. (1977).

DOI: 10.17226/22860

[7] A.J. Weltman: Pile Load Testing Procedure., Report PG7, Construction Industry Research and Information Association (CTJUA). London (1980).
