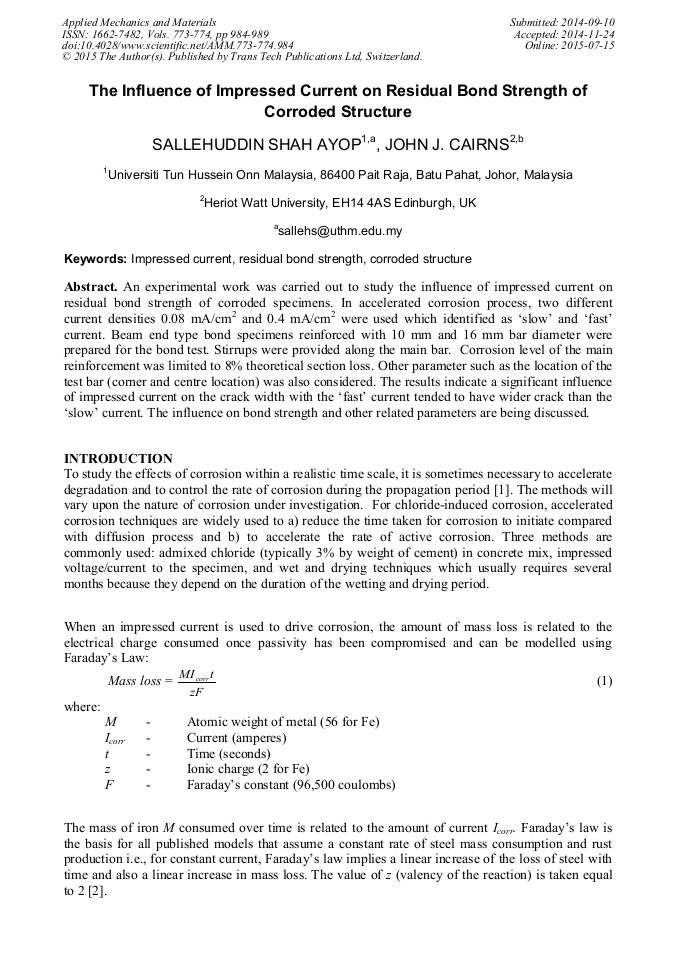

The Influence of Impressed Current on Residual Bond Strength of Corroded Structure

Abstract:

An experimental work was carried out to study the influence of impressed current on residual bond strength of corroded specimens. In accelerated corrosion process, two different current densities 0.08 mA/cm² and 0.4 mA/cm² were used which identified as ‘slow’ and ‘fast’ current. Beam end type bond specimens reinforced with 10 mm and 16 mm bar diameter were prepared for the bond test. Stirrups were provided along the main bar. Corrosion level of the main reinforcement was limited to 8% theoretical section loss. Other parameter such as the location of the test bar (corner and centre location) was also considered. The results indicate a significant influence of impressed current on the crack width with the ‘fast’ current tended to have wider crack than the ‘slow’ current. The influence on bond strength and other related parameters are being discussed.

• Periodical: Applied Mechanics and Materials (Volumes 773-774)
• Pages: 984-989
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.773-774.984
• Online since: July 2015
• Authors: Sallehuddin Shah Ayop*, John J. Cairns
• Keywords: Corroded Structure, Impressed Current, Residual Bond Strength

References

[1] S. A. Austin, R. Lyons and M. J. Ing, Electrochemical behaviour of steel-reinforced concrete during accelerated corrosion testing, Corrosion, 60, 2 (2004) 203- 212.

DOI: 10.5006/1.3287722

[2] S.J. Pantazopoulou, and K.D. Papoulia, Modeling cover-cracking due to reinforcement corrosion in RC structures, Journal of Engineering Mechanics, 127, 4 (2001) 342- 351.

DOI: 10.1061/(asce)0733-9399(2001)127:4(342)

[3] C. Andrade, C. Alonso, and F. J. Molina, Cover cracking as a function of bar corrosion: Part 1 – Experimental test, Materials and Structure, 26 (1993) 453-464.

DOI: 10.1007/bf02472805

[4] J. Rodriguez, L. M. Ortega and J. Casal, Load carrying capacity of concrete structures with corroded reinforcement, Construction and Building Materials, 11, 4 (1997) p.239 – 248.

DOI: 10.1016/s0950-0618(97)00043-3

[5] C. Andrade, and C. Alonso, Corrosion rate monitoring in the laboratory and on-site, Construction and Building Materials, 10, 5 (1996) 315- 328.

DOI: 10.1016/0950-0618(95)00044-5

[6] S.S. Ayop and J. J Cairns, Critical Study of Corrosion Damaged Concrete Structures, International Journal of Integrated Engineering, 5, 2 (2013) pp.43-50.

[7] T. A. El Maaddawy and K. A. Soudki, Effectiveness of impressed current technique to stimulate corrosion of steel reinforcement in concrete, Journal of Materials in Civil Engineering, 15, 1 (2003) 41-47.

DOI: 10.1061/(asce)0899-1561(2003)15:1(41)

[8] M Saifullah, and L. A. Clark, Effect of corrosion rate on the bond strength of corroded reinforcement. Corrosion and Corrosion Protection of Steel in Concrete, Sheffield Academic Press, UK (1994).

[9] T. Vidal, A. Castel, and R. Francois, Analyzing crack width to predict corrosion in reinforced concrete, Cement and Concrete Research, 34 (2004) 165-174.

DOI: 10.1016/s0008-8846(03)00246-1

[10] L. Hariche, Y. Ballim, M. Bouhicha, S. Kenai. Effects of reinforcement configuration and sustained load on the behavior of reinforced concrete beams affected by reinforcing steel corrosion, Cement & Concrete Composites 34 (2012) 1202–1209.

DOI: 10.1016/j.cemconcomp.2012.07.010
