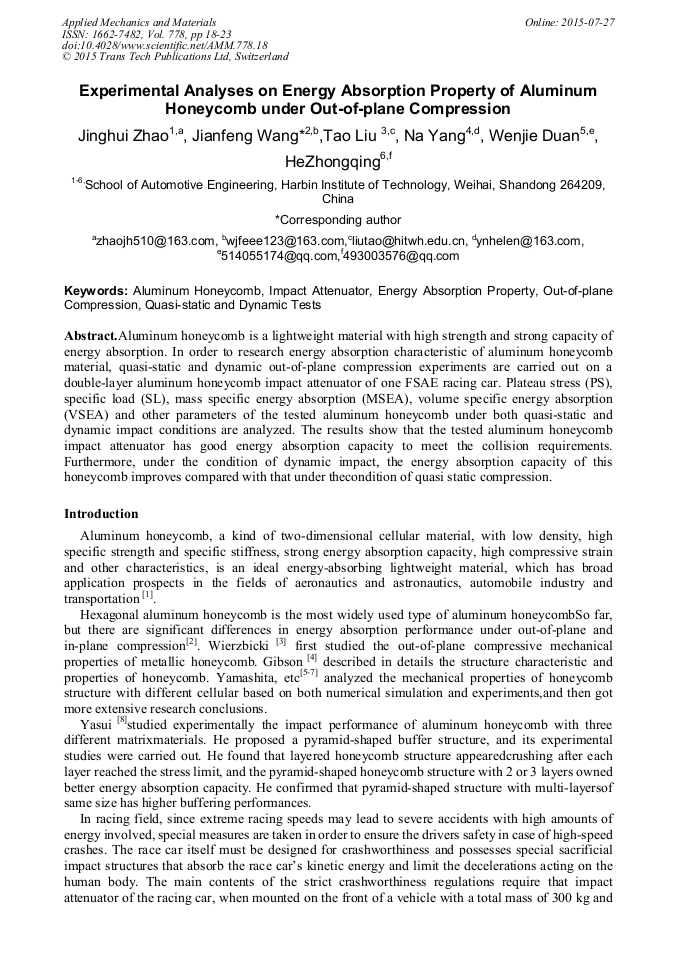

Experimental Analyses on Energy Absorption Property of Aluminum Honeycomb under Out-of-Plane Compression

Abstract:

Aluminum honeycomb is a lightweight material with high strength and strong capacity of energy absorption. In order to research energy absorption characteristic of aluminum honeycomb material, quasi-static and dynamic out-of-plane compression experiments are carried out on a double-layer aluminum honeycomb impact attenuator of one FSAE racing car. Plateau stress (PS), specific load (SL), mass specific energy absorption (MSEA), volume specific energy absorption (VSEA) and other parameters of the tested aluminum honeycomb under both quasi-static and dynamic impact conditions are analyzed. The results show that the tested aluminum honeycomb impact attenuator has good energy absorption capacity to meet the collision requirements. Furthermore, under the condition of dynamic impact, the energy absorption capacity of this honeycomb improves compared with that under the condition of quasi static compression.

• Periodical: Applied Mechanics and Materials (Volume 778)
• Pages: 18-23
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.778.18
• Online since: July 2015
• Authors: Jing Hui Zhao, Jian Feng Wang*, Tao Liu, Na Yang, Wen Jie Duan, Zhong Qing He
• Keywords: Aluminum Honeycomb, Energy Absorption Property, Impact Attenuator, Out-of-Plane Compression, Quasi-Static and Dynamic Tests

References

[1] ONG Hongwei, FAN Zijie, YU Gang. Energy absorption behavior of several typical crashworthy structures[C]/Society of Automotive Engineers of China. Technologies of Automotive Engineering. Beijing: China Communications Press, 2004: 44−49.

[2] Lu G X, Yu T X. Energy absorption of structures and materials [M]. Cambridge: Woodhead Publishing Limited, 2003: 268−278.

[3] Wierzbicki T. Crushing analysis of metal honeycomb [J]. Int J Impact Eng, 1983, 2(1): 157−174.

[4] Gibson L J, Ashby M F. Cellular solids: Structures and properties [M]. 2nd ed. Cambridge: Cambridge University Press, 1997: 93−158.

[5] Zhao H, G Gary. Crushing behavior of aluminum honeycombs under impact loading [J] Int J Impact Eng, 1998, 21(10): 827−836.

DOI: 10.1016/s0734-743x(98)00034-7

[6] Hu L L, Yu T X. Dynamic crushing strength of hexagonal honeycombs [J]. Int J Impact Eng, 2010, 37(5): 467−474.

DOI: 10.1016/j.ijimpeng.2009.12.001

[7] Yamashita M, Gotoh M. Impact behavior of honeycomb structures with various cell specifications: Numerical simulation and experiment[J]. Int J Impact Eng, 2005, 32(1/2/3/4): 618−630.

DOI: 10.1016/j.ijimpeng.2004.09.001

[8] Yasui Y． Dynamic axial crushing of multi-layer honeycomb panels and impact tensile behavior of the component members[J]. International Journal of Impact Engineering, 2000, 24(6-7): 659- 671.

DOI: 10.1016/s0734-743x(99)00174-8

[9] Society of Automotive Engineers. 2014Formula SAE Rule [EB/OL]. (2014-05-10)[2014-08-20]. http: /students. sae. org/compettions/formulaseries/rules.

[10] Li M, Deng Z Q, Liu R Q, et al. Crashworthiness design optimization of metal honeycomb energy absorber used in lunar lander [J]. International Journal of Crashworthiness, 2011, 16(4): 411-419.

DOI: 10.1080/13588265.2011.596677

[11] SONG Hongwei, FAN Zijie, YU Gang. Energy absorption behavior of several typical crashworthy structures[C] Society of Automotive Engineers of China. Technologies of Automotive Engineering. Beijing: China Communications Press, 2004: 44−49.

[12] Maiti S. K, Gibson L J, Ashby M F. Deformation and energy absorption diagrams for cellular solids [J]. Acta Metallurgica, 1984, 32(11): 1963−(1975).

DOI: 10.1016/0001-6160(84)90177-9

[13] Wang Dongmei. Energy absorption diagrams of multi-player corrugated boards [J]. Journal of Wuhan University of Technology: Materials Science Edition, 2010, 25(1): 58−61.

DOI: 10.1007/s11595-010-1058-8
