Free Layer Characterization of TMR Head with Multi-Stripe Height by Using Ferro Magnetic Resonance Analyzer (FMRA)

Abstract:

As continued reducing the track width (TW) of magnetic read sensor for gaining areal density in hard disk drive (HDD) industry, stripe height (SH) is needed to be reduced as keeping aspect ratio(TW/SH) for maintain resistance and signal constant. This paper is proposed to characterize the free layer behavior of tunneling magneto resistive (TMR) head with multiple SH by using ferro magnetic resonance analyzer (FMRA) that is able to analyze by layer-level state without applying external field. The results are found that, at shorter SH, effective stiffness field of free layer is increased which is based on decreasing FMR amplitude and increasing FMR frequency. As a result, magnetic read sensor is shown less sensitivity and signal to noise ratio (SNR) with shorter SH. The SH is a correlated function of the effective stiffness field in free layer that is referred to changed shape anisotropy field which has an effect to read ability.

You might also be interested in these eBooks

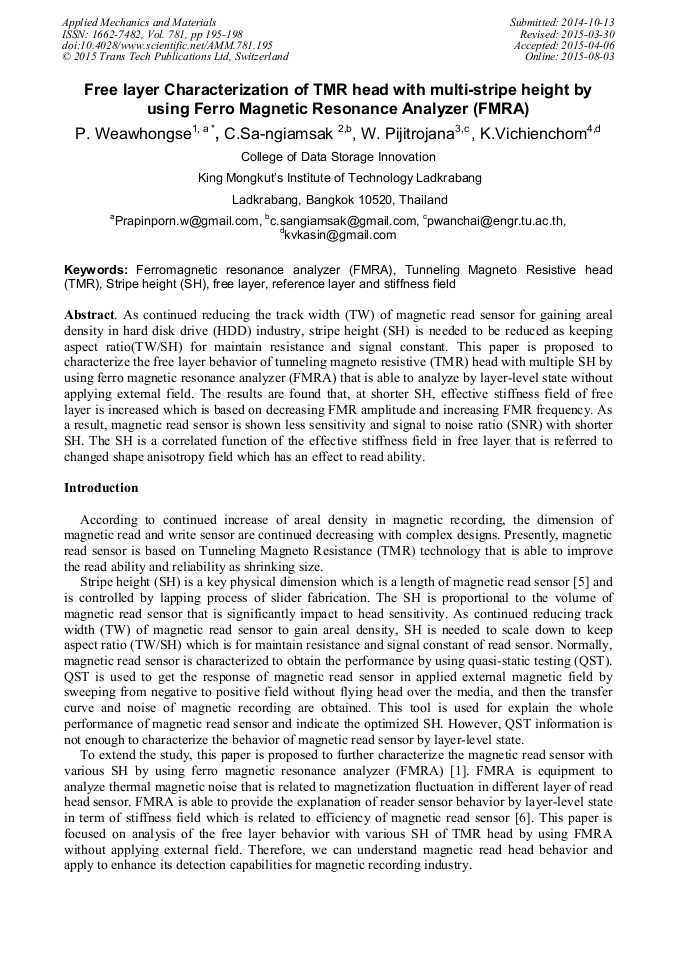

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 781)

Pages:

195-198

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.781.195

Citation:

Cite this paper

Online since:

August 2015

Authors:

P. Weawhongse*, Chiranut Sa-Ngiamsak, Wanchai Pijitrojana, Kasin Vichienchom

Keywords:

Ferromagnetic Resonance Analyzer (FMRA), Free Layer, Reference Layer, Stiffness Field, Stripe Height (SH), Tunneling Magneto Resistive Head (TMR)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A. Taratorin, Measurement of effective free layer magnetization orientation of TMR sensors, IEEE Trans. Magn. Vol. 45, pp.3449-3452, (2009).

DOI: 10.1109/tmag.2009.2021664

Google Scholar

[2] J. Jury, Student member, K. Klaassen, Jack C. L. van Peppen, S. Wang, Measurement and analysis of noise sources in giant magnetoresistive sensors up to 6 GHz, IEEE Trans. Magn. Vol. 38, pp.3545-3555, (2002).

DOI: 10.1109/tmag.2002.802706

Google Scholar

[3] G. C. Han, Y. K. Zheng, Z. Y. Liu and B. Liu, Field dependence of high frequency magnetic noise in tunneling magneto resistive heads, Journal of applied physical 100, pp.063912-063916, (2006).

DOI: 10.1063/1.2338133

Google Scholar

[4] O. Heinonen, H. S. Cho, Thermal magnetic noise in tunneling readers, IEEE Trans. Magn. Vol. 40, pp.2227-2232, (2004).

DOI: 10.1109/tmag.2004.830622

Google Scholar

[5] S. Kamwan, W. Pifitrojana and C. Sa-ngiamsak, Effect of track width and stripe height ratio on the characteristics of CPP-GMR and TMR heads, (2011).

DOI: 10.1109/ecticon.2011.5947869

Google Scholar

[6] S. Wonglam and C. Sa-ngiamsak, Thermal and external magnetic field effects on ferromagnetic resonance characteristic of TMR heads, KKU journal, (2012).

Google Scholar
