The Synthesis of Nano-Porous Alumina by Anodization Process

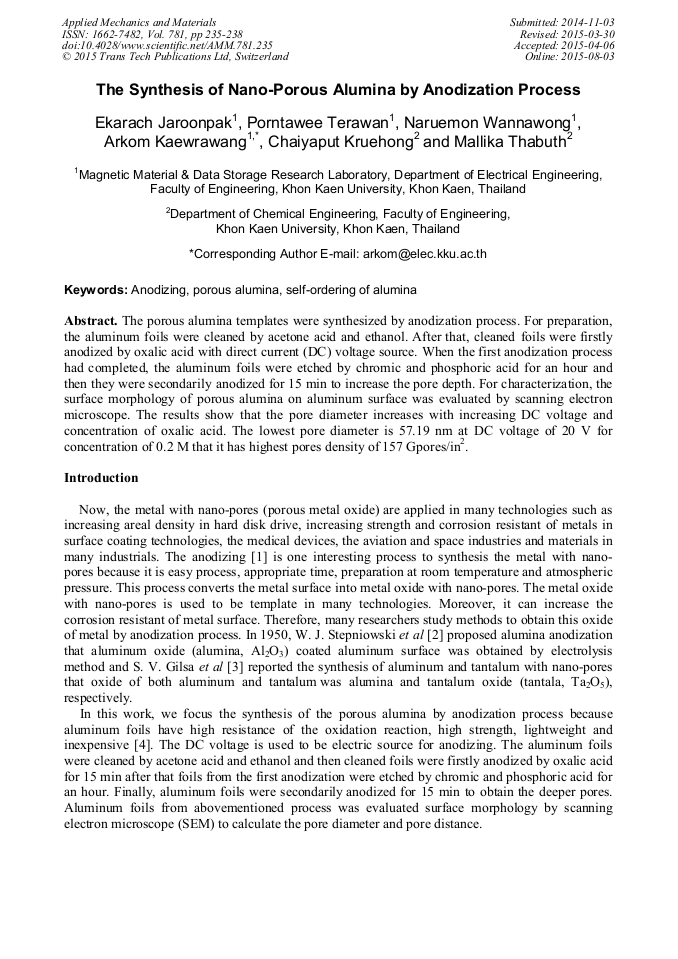

Article Preview

Abstract:

The porous alumina templates were synthesized by anodization process. For preparation, the aluminum foils were cleaned by acetone acid and ethanol. After that, cleaned foils were firstly anodized by oxalic acid with direct current (DC) voltage source. When the first anodization process was complete, the aluminum foils were etched by chromic and phosphoric acid for an hour and then they were secondarily anodized for 15 min to increase the pore depth. For characterization, the surface morphology of porous alumina on aluminum surface was evaluated by scanning electron microscope. The results show that the pore diameter increases with increasing DC voltage and concentration of oxalic acid. The lowest pore diameter is 57.19 nm at DC voltage of 20 V for concentration of 0.2 M that it has highest pores density of 157 Gpores/in2.

You might also be interested in these eBooks
Advanced Engineering Research View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 781)

Pages:

235-238

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.781.235

Citation:

Cite this paper

Online since:

August 2015

Authors:

Ekarach Jaroonpak, Porntawee Terawan, Naruemon Wannawong, Arkom Kaewrawang*, Chaiyaput Kruehong, Mallika Thabuth

Keywords:

Anodizing, Porous Alumina, Self-Ordering of Alumina

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Information on http: /sundoc. bibliothek. uni-halle. de/diss-online/04/04H055/t2. pdf.

Google Scholar

[2] W. J. Stępniowski, A. Nowak-Stępniowska, Z. Bojar, Quantitative arrangement analysis of anodic alumina formed, by short anodizations in oxalic acid, J. Mater. Charact. 78 (2013) 79-86.

DOI: 10.1016/j.matchar.2013.01.013

Google Scholar

[3] S. Van Gils, P. Mast, E. Stijns, H. Terryn, Colour properties of barrier anodic oxide films on aluminium and titanium studied with total reflectance and spectroscopic ellipsometry, J. Surf. Coat. Technol. 185 (2004) 303-310.

DOI: 10.1016/j.surfcoat.2004.01.021

Google Scholar

[4] B. Dogru Mert, B. Yazici, T. Tüken, G. Karda, M. Erbil. Anodizing and corrosion behaviour of aluminium, Prot. Met. Phys. Chem. Surf. 47 (2011) 102-107.

DOI: 10.1134/s2070205110051028

Google Scholar

[5] Information on http: /nanodevice. yonsei. ac. kr/?mid=topic_nanopattern&ckattempt=1.

Google Scholar
