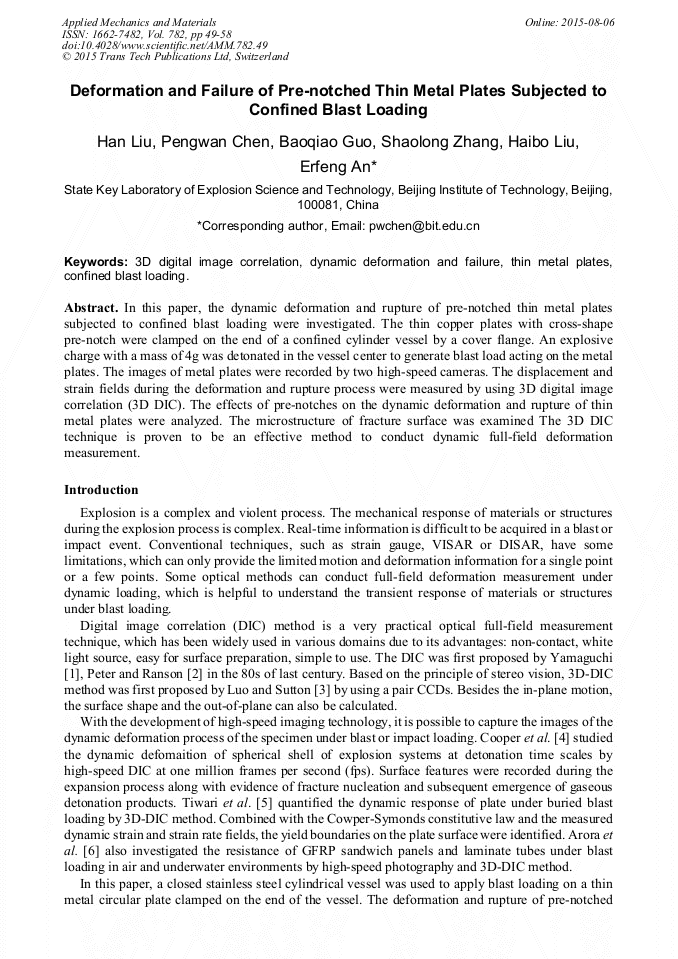

Deformation and Failure of Pre-Notched Thin Metal Plates Subjected to Confined Blast Loading

Abstract:

In this paper, the dynamic deformation and rupture of pre-notched thin metal plates subjected to confined blast loading were investigated. The thin copper plates with cross-shape pre-notch were clamped on the end of a confined cylinder vessel by a cover flange. An explosive charge with a mass of 4g was detonated in the vessel center to generate blast load acting on the metal plates. The images of metal plates were recorded by two high-speed cameras. The displacement and strain fields during the deformation and rupture process were measured by using 3D digital image correlation (3D DIC). The effects of pre-notches on the dynamic deformation and rupture of thin metal plates were analyzed. The microstructure of fracture surface was examined The 3D DIC technique is proven to be an effective method to conduct dynamic full-field deformation measurement.

• Periodical: Applied Mechanics and Materials (Volume 782)
• Pages: 49-58
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.782.49
• Online since: August 2015
• Authors: Han Liu, Peng Wan Chen, Bao Qiao Guo, Shao Long Zhang, Hai Bo Liu, Er Feng An
• Keywords: 3D Digital Image Correlation, Confined Blast Loading, Dynamic Deformation, Failure, Thin Metal Plates

References

[1] Yamaguchi I, A laser-speckle strain gauge, Journal of Physics E: Scientific Instruments, 1, 14(1985) 1270-1273.

[2] Peters W. H., Ranson W. F., Digital imaging techniques in Experimental stress analysis, Opt. Eng, 21(1981) 427-431.

[3] Luo P. F, Chao Y. J, Sutton MA, et al., Experimental Mechanics, 33(2)(1993) 123-132.

[4] Cooper M. A, Reu P. L, Miller T J., Observations in explosive systems with high-speed digital image correlation, 14th International Detonation Symposium, (2010).

[5] Vikrant Tiwari, Michael A. Sutton, S. R. McNeill, Shaowen Xu, Xiaomin Deng, William L. Fourney, Damien Bretall., Application of 3D image correlation for full-field transient plate deformation measurements during blast loading, International Journal of Impact Engineering, 36(2009).

DOI: 10.1016/j.ijimpeng.2008.09.010

[6] Arora H., Hooper P.A., Dear J.P., The Effects of Air and Underwater Blast on Composite Sandwich Panels and Tubular Laminate Structures. Experimental Mechanics, 24 June (2011).

DOI: 10.1007/s11340-011-9506-z

[7] K. Spranghers, I. Vasilakos, D. Lecompte H. Sol, J. Vantomme., Full-Field Deformation Measurements of Aluminum Plates Under Free Air Blast Loading, Experimental Mechanics, (2012).

DOI: 10.1007/s11340-012-9593-5

[8] Pan B, Xie H. Full-field strain measurement based on least-square fitting of local displacement for digital image correlation method. Acta Opt Sin, 2007: 1980-86.

[9] D. Lecompte, A. Smits, S. Bossuyt, H. Sol, J. Vantomme, D. Van Hemelrijck, A.M. Habraken, Quality assessment of speckle patterns for digital image correlation, Optics and Lasers in Engineering, 44 (11) (2006) 1132-1145.

DOI: 10.1016/j.optlaseng.2005.10.004

[10] T. Schmidt, J. Tyson, and K. Galanulis, Full-field dynamic displacement and strain measurement using advanced 3D Image Correlation photogrammetry: Part I. Experimental Techniques, 27 (3) (2003) 47-50.

DOI: 10.1111/j.1747-1567.2003.tb00115.x

[11] T. Schmidt, J. Tyson, K. Galanulis, Full-field dynamic displacement and strain measurement using advanced 3D image correlation photogrammetry: Part II. Experimental Techniques, 27 (4) (2003) 22-26.

DOI: 10.1111/j.1747-1567.2003.tb00118.x
