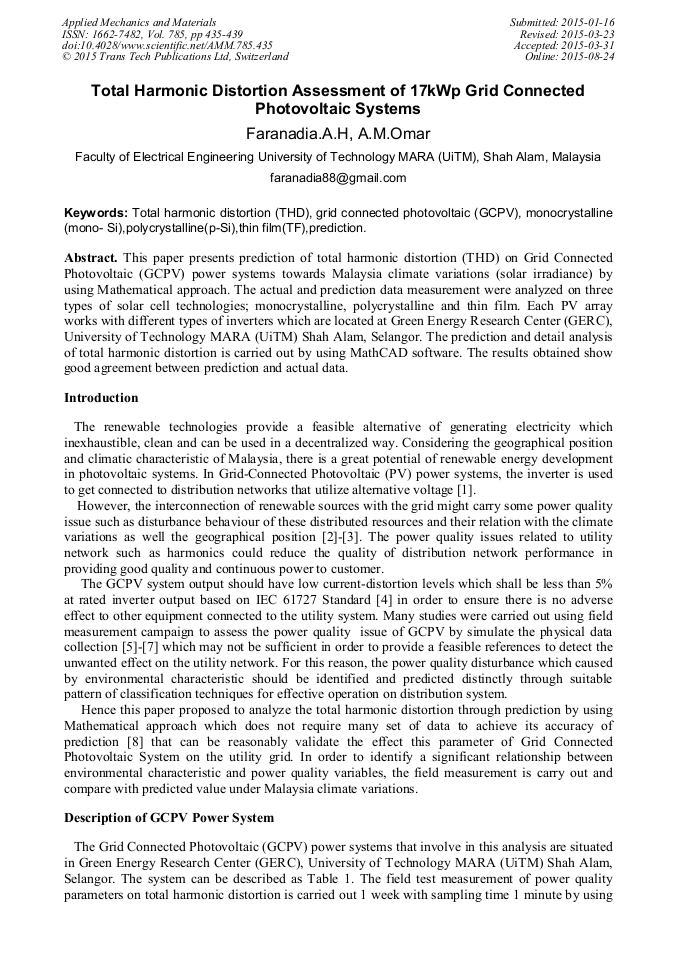

Total Harmonic Distortion Assessment of 17kWp Grid Connected Photovoltaic Systems

Abstract:

This paper presents prediction of total harmonic distortion (THD) on Grid Connected Photovoltaic (GCPV) power systems towards Malaysia climate variations (solar irradiance) by using Mathematical approach. The actual and prediction data measurement were analyzed on three types of solar cell technologies; monocrystalline, polycrystalline and thin film. Each PV array works with different types of inverters which are located at Green Energy Research Center (GERC), University of Technology MARA (UiTM) Shah Alam, Selangor. The prediction and detail analysis of total harmonic distortion is carried out by using MathCAD software. The results obtained show good agreement between prediction and actual data.

• Periodical: Applied Mechanics and Materials (Volume 785)
• Pages: 435-439
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.785.435
• Online since: August 2015
• Authors: Abdul Haris Faranadia, Ahmad Maliki Omar
• Keywords: Grid Connected Photovoltaic (GCPV), Monocrystalline (Mono-Si), Polycrystalline (P-Si), Prediction, Thinfilm (TF), Total Harmonic Distortion (THD)

References

[1] Mellit, A., Kalogirou, S.A., Shaari, S. and Arab A. H, Methodology for prediction sequences of mean monthly clearness index and daily solar radiation data in remote areas: Application for sizing a stand-alone PV system, Journal of Solar Energy Engineering, (2010).

DOI: 10.1016/j.renene.2007.08.006

[2] Daniele Gallo, Carmine Landi, Mario Luiso, AC and DC Power Quality of Photovoltaic Systems, in IEEE Proceedings of Instrument and Measurement Technology Conference, (2012) pp.576-581.

DOI: 10.1109/i2mtc.2012.6229309

[3] Y. Ulianov and M. I. Arteaga Orozco, Power Quality Performance of a Grid-Tie Photovoltaic System, Colombia IEEE Proceedings of Transmission and Distribution: Latin America Conference and Exposition, (2012) pp.1-7.

DOI: 10.1109/tdc-la.2012.6319091

[4] P. D. Azit, Dr Abu, Hanifah Saharuddin Sulaiman, Malathy Balakhrisnan, Asnawi Mohd Busrah, TNB Technical Guidebook on Grid-interconnection of Photovoltaic Power Generation System to LV and MV Networks.

[5] P. Mohanty, G. Bhuvaneswari, and R. Balasubramanian, On-field performance assessment of power converters of solar PV system under different operating conditions, 2011 Annu. IEEE India Conference, (2011) p.1–5.

DOI: 10.1109/indcon.2011.6139510

[6] E. Vasanasong, E.D. Spooner, The Effect of Net Harmonics Currents Produced by Numbers of the Sydney Village's PV Systems on the Power Quality of Local Electrical Network, Power System Technology Proceedings International Conference, (2010).

DOI: 10.1109/icpst.2000.897157

[7] Abdulvahid Celebi, Metin Colak, The Effects of Harmonics Produced by Grid Connected Photovoltaic Systems on Electrical Networks, Universities Power Engineering Conference (UPEC) Proceedings of 2011 46th International, (2011) pp.1-8.

[8] Faranadia.A. H, A.M. Omar, Nor Syafiqah Syahirah Mohamed, Prediction of Grid Connected Photovoltaic System Performance using Mathematical Approach, Control and System Graduate Research Colloquium, (2014) pp.13-18.

DOI: 10.1109/icsgrc.2014.6908688
