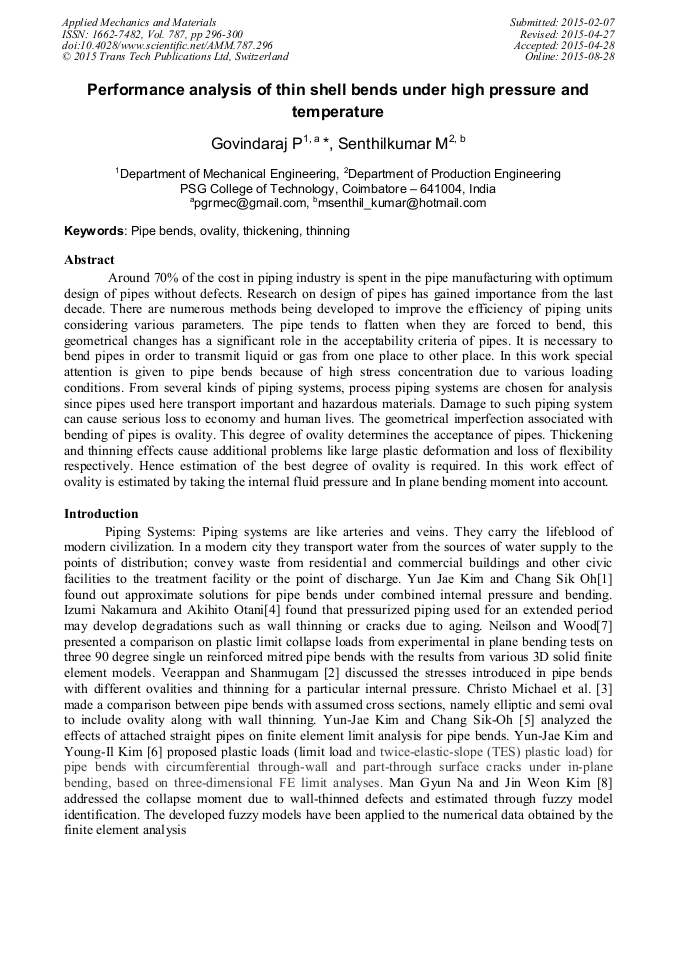

Performance Analysis of Thin Shell Bends under High Pressure and Temperature

Abstract:

Around 70% of the cost in piping industry is spent in the pipe manufacturing with optimum design of pipes without defects. Research on design of pipes has gained importance from the last decade. There are numerous methods being developed to improve the efficiency of piping units considering various parameters. The pipe tends to flatten when they are forced to bend, this geometrical changes has a significant role in the acceptability criteria of pipes. It is necessary to bend pipes in order to transmit liquid or gas from one place to other place. In this work special attention is given to pipe bends because of high stress concentration due to various loading conditions. From several kinds of piping systems, process piping systems are chosen for analysis since pipes used here transport important and hazardous materials. Damage to such piping system can cause serious loss to economy and human lives. The geometrical imperfection associated with bending of pipes is ovality. This degree of ovality determines the acceptance of pipes. Thickening and thinning effects cause additional problems like large plastic deformation and loss of flexibility respectively. Hence estimation of the best degree of ovality is required. In this work effect of ovality is estimated by taking the internal fluid pressure and In plane bending moment into account.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 296-300
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.296
• Online since: August 2015
• Authors: P. Govindaraj*, Mouleeswaran Senthilkumar
• Keywords: Ovality, Pipe Bends, Thickening, Thinning

References

[1] Yun-Jae Kim and Chang Sik-Oh, Limit loads for pipe bends under combined pressure and in-plane bending based on Finite element Limit Analysis, International Journal of Pressure Vessels and Piping. 83 (2005) 148-153.

DOI: 10.1016/j.ijpvp.2005.11.001

[2] Veerappan A.R. and Shanmugam S, The Accepting of Pipe Bends with Ovality and Thinning using Finite Element Method, Journal of Pressure Vessel Technology. 132 (2010) 031204(1-9).

DOI: 10.1115/1.4001423

[3] Christo Michael T, Veerappan A.R. and Shanmugam S, A Study on Effect of Cross Section Approximation on Behaviour of Pipe Bends with Ovality and Thinning, International Journal of Advanced Engineering Sciences and Technologies. 2 (2011) 133-139.

[4] Izumi Nakmura, Akihito Otani and Masaki Shiratori, Comparison of failure modes of Piping Systems with Wall thinning subjected to In-Plane, Out of Plane and Mixed Mode Bending under Seismic Load, Journal of Pressure Vessel Technology. 8 (2007).

DOI: 10.1115/pvp2007-26497

[5] Yun-Jae Kim and Chang Sik-Oh, Effects of Attached Straight Pipes on Finite Element Limit Analysis for Pipe Bends, International Journal of Pressure Vessels and Piping. 84 (2005) 177-184.

DOI: 10.1016/j.ijpvp.2006.09.017

[6] Yun-Jae Kim and Young-Il Kim, Finite Element Plastic loads for circumferential cracked pipe bends under in plane bending, Engineering Fracture Mechanics. 74 (2006) 643-668.

DOI: 10.1016/j.engfracmech.2006.07.001

[7] Neilson and Wood, A comparison of plastic collapse and limit loads for single mitred pipe bends under in plane bending, International Journal of Pressure Vessels. 87 (2010) 550-558.

DOI: 10.1016/j.ijpvp.2010.08.015

[8] Man Gyun Na and Jin Weon Kim, Estimation of collapse moment for thin walled pipe bends using fuzzy model identification, Nuclear Engineering and Design. 236 (2006) 1335-1343.

DOI: 10.1016/j.nucengdes.2005.12.003
