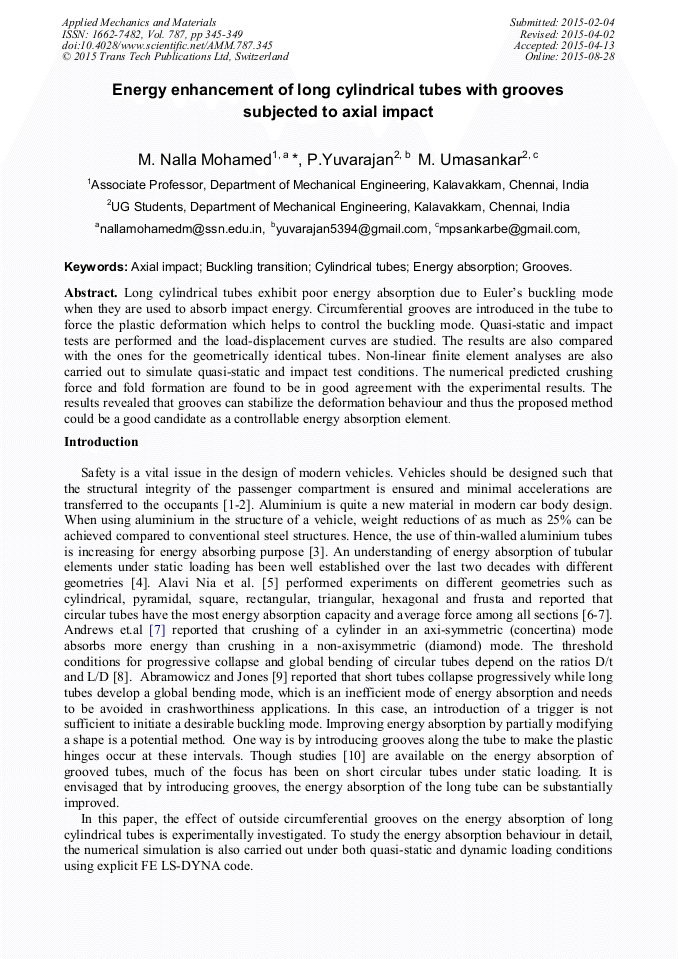

Energy Enhancement of Long Cylindrical Tubes with Grooves Subjected to Axial Impact

Abstract:

Long cylindrical tubes exhibit poor energy absorption due to Euler’s buckling mode when they are used to absorb impact energy. Circumferential grooves are introduced in the tube to force the plastic deformation which helps to control the buckling mode. Quasi-static and impact tests are performed and the load-displacement curves are studied. The results are also compared with the ones for the geometrically identical tubes. Non-linear finite element analyses are also carried out to simulate quasi-static and impact test conditions. The numerical predicted crushing force and fold formation are found to be in good agreement with the experimental results. The results revealed that grooves can stabilize the deformation behaviour and thus the proposed method could be a good candidate as a controllable energy absorption element.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 345-349
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.345
• Online since: August 2015
• Authors: M. Nalla Mohamed*, P. Yuvarajan, M. Umasankar
• Keywords: Axial Impact, Buckling Transition, Cylindrical Tubes, Energy Absorption, Grooves

References

[1] W. Johnson, S.R. Reid, Metallic energy dissipating systems, Appl. Mech. Rev, 3 (1978) 277–288.

[2] N. Jones, Structural impact, Cambridge, Cambridge University Press, Paperback ed, (2011).

[3] S.A. Pugsley, The crumpling of tubular structures under impact conditions, In Proceeding of locomotive engineering, The Aluminium Development Association, London, (1960) 33–41.

[4] A.A.A. Alghamdi, Collapsible impact energy absorbers, an overview, Thin-Wall. Struct., 39 (2001) 189–213.

DOI: 10.1016/s0263-8231(00)00048-3

[5] N.A. Alavi, J. H. Hamedani, Comparative analysis of energy absorption and deformations of thin walled tubes with various section geometries, Thin-Wall. Struct., 48 (2010) 946–954.

DOI: 10.1016/j.tws.2010.07.003

[6] W. Abramowicz, N. Jones, Dynamic progressive buckling of circular and square tubes, Int. J. Impact Eng., 4 (1986) 243–270.

DOI: 10.1016/0734-743x(86)90017-5

[7] KRF. Andrews, GL. England, E. Ghani, Classification of the axial collapse of cylindrical tubes under quasi-static loading, Int. J. Mech. Sci., 25 (1983) 687–96.

DOI: 10.1016/0020-7403(83)90076-0

[8] D. Karagiozova, M. Alves, N. Jones, Inertia effects in axisymmetrically deformed cylindrical shells under axial impact, Int. J. Impact Eng., 24 (2000) 1083-1115.

DOI: 10.1016/s0734-743x(00)00028-2

[9] W. Abramowicz, N. Jones, Transition from initial global bending to progressive buckling of tubes loaded statically and dynamically. Int. J. Impact Eng., 5–6 (1997) 415–37.

DOI: 10.1016/s0734-743x(96)00052-8

[10] G. Mamalis, D.E. Manolakos, G.L. Viegelahn, N.M. Vaxevanidis, W. Johnson, The in-extensional collapse of grooved thin-walled cylinders of PVC under axial loading, Int. J. Impact Eng. 4 (1986) 41–56.

DOI: 10.1016/0734-743x(86)90026-6

[11] J. Hallquist, LS-DYNA 3D, theoretical manual, Livermore Software Technology Corporation (2009).
