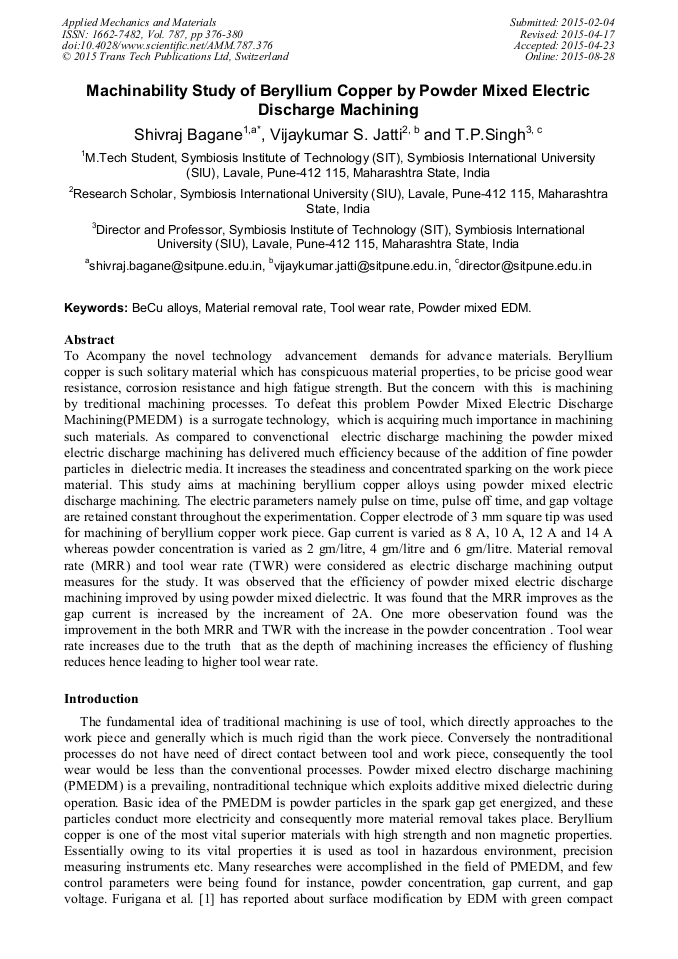

Machinability Study of Beryllium Copper by Powder Mixed Electric Discharge Machining

Abstract:

To Acompany the novel technology advancement demands for advance materials. Beryllium copper is such solitary material which has conspicuous material properties, to be pricise good wear resistance, corrosion resistance and high fatigue strength. But the concern with this is machining by treditional machining processes. To defeat this problem Powder Mixed Electric Discharge Machining(PMEDM) is a surrogate technology, which is acquiring much importance in machining such materials. As compared to convenctional electric discharge machining the powder mixed electric discharge machining has delivered much efficiency because of the addition of fine powder particles in dielectric media. It increases the steadiness and concentrated sparking on the work piece material. This study aims at machining beryllium copper alloys using powder mixed electric discharge machining. The electric parameters namely pulse on time, pulse off time, and gap voltage are retained constant throughout the experimentation. Copper electrode of 3 mm square tip was used for machining of beryllium copper work piece. Gap current is varied as 8 A, 10 A, 12 A and 14 A whereas powder concentration is varied as 2 gm/litre, 4 gm/litre and 6 gm/litre. Material removal rate (MRR) and tool wear rate (TWR) were considered as electric discharge machining output measures for the study. It was observed that the efficiency of powder mixed electric discharge machining improved by using powder mixed dielectric. It was found that the MRR improves as the gap current is increased by the increament of 2A. One more obeservation found was the improvement in the both MRR and TWR with the increase in the powder concentration . Tool wear rate increases due to the truth that as the depth of machining increases the efficiency of flushing reduces hence leading to higher tool wear rate.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 376-380
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.376
• Online since: August 2015
• Authors: Shivraj Bagane*, Vijaykumar S. Jatti, T.P. Singh
• Keywords: BeCu Alloys, Material Removal Rate (MRR), Powder Mixed EDM, Tool Wear Rate

References

[1] K. Furutani, A. Saneto, H. Takezawa, N. Mohri, H. Miyake, Accretion of titanium carbide by electrical discharge machining with powder suspended in working fluid, Precis. Engg. J. Int. Soc. Precis Engg. Nanotechnol. 25 (2001) 138-144.

DOI: 10.1016/s0141-6359(00)00068-4

[2] M. Rozenek, J. Kozak, L. Dabrowski, Electrical Discharge Machining in Dielectric Powder Media, Warsaw University of Technology, POLAND.

[3] W.S. Zhao, Q.G. Meng, Z.L. Wang, The application of research on powder mixed EDM in rough machining, J. Mater. Proces. Technol. 129 (2002) 30-33.

[4] K. L. Wu, B.H. Yan, F.Y. Huang, S.C. Chen, Improvement of surface finish on SKD steel using electro discharge machining with aluminum and surfactant added dielectric, Int. J. Mach. Tools Manuf. 45 (2005) 1195-1201.

DOI: 10.1016/j.ijmachtools.2004.12.005

[5] H.K. Kansal, S. Singh, P. Kumar, Performance parameter optimization (multi-characteristics) of powder mixed electrical discharge machining through Taguchi's method and utility concept, Int. J. Mach. Tools Manuf. 45 (2005) 1195-1201.

[6] H.K. Kansal, S. Singh, P. Kumar, Effect of silicon powder mixed EDM on machining rate of AISI D2 Die Steel, J. Manuf. Process. 9(1) (2007).

DOI: 10.1016/s1526-6125(07)70104-4

[7] F. Kolahan, M. Bironro, Modeling and optimization of process parameters in PMEDM by Genetic Algorithm, World Academy Sci. Engg. Technol. 24 (2008).

[8] R.K. Garg, K. Ojha, Parametric optimization of PMEDM with nickel micro powder suspended dielectric and varying triangular shapes electrode on EN-19 steel, J. Engg. Appl. Sci. 6(2) 152-156, (2011).

DOI: 10.3923/jeasci.2011.152.156

[9] C. Mai, H. Hocheng, S. Huang, Advantages of carbon nanotubes in electrical discharge machining, Int. J. Adv. Manuf. Technol. 59(1-4) (2012) 111-117.

DOI: 10.1007/s00170-011-3476-2

[10] K.H. Syed, K. Palaniyandi, Performance of electrical discharge machining using aluminium powder Suspended distilled water, Tur. J. Engg. Env. Sci. 36 (2012) 195-207.

[11] X. Bai, Q.H. Zhang, T. Y. Yang, J.H. Zhang, Research on material removal rate of powder mixed near dry electrical discharge machining, Int. J. Adv. Manuf. Technol. 68(5-8) (2013) 1757-1766.

DOI: 10.1007/s00170-013-4973-2

[12] V. S. Jatti, T. P. Singh, Effect of deep cryogenic treatment on machinability of NiTi shape memory alloys in Electro Discharge Machining, Appl. Mech. Mater. 592-594 (2014) 197-201.

DOI: 10.4028/www.scientific.net/amm.592-594.197

[13] S. Kumar, U. Batra, Surface modification of die steel materials by EDM method using tungsten powder-mixed dielectric, J. Manufac. Process. 14 (2012) 35-40.

DOI: 10.1016/j.jmapro.2011.09.002
