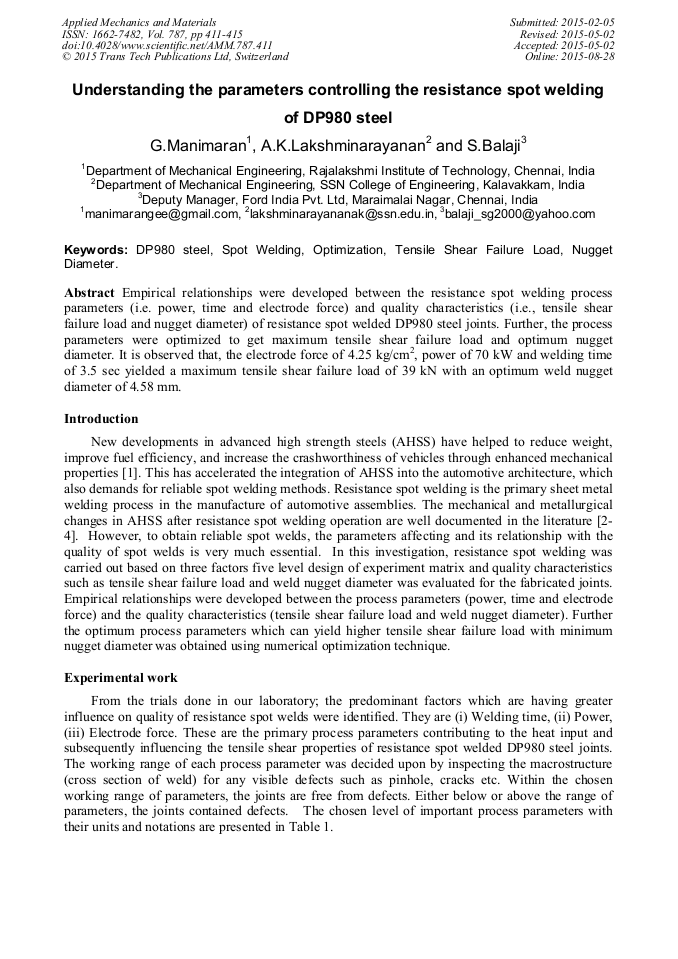

Understanding the Parameters Controlling the Resistance Spot Welding of DP980 Steel

Abstract:

Empirical relationships were developed between the resistance spot welding process parameters (i.e. power, time and electrode force) and quality characteristics (i.e., tensile shear failure load and nugget diameter) of resistance spot welded DP980 steel joints. Further, the process parameters were optimized to get maximum tensile shear failure load and optimum nugget diameter. It is observed that, the electrode force of 4.25 kg/cm², power of 70 kW and welding time of 3.5 sec yielded a maximum tensile shear failure load of 39 kN with an optimum weld nugget diameter of 4.58 mm.

You might also be interested in these eBooks

Alternative Energy Sources, Materials and Technologies

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 787)

Pages:

411-415

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.787.411

Citation:

Cite this paper

Online since:

August 2015

Authors:

G. Manimaran*, A.K. Lakshminarayanan, S. Balaji

Keywords:

DP980 Steel, Nugget Diameter, Optimization, Spot Welding, Tensile Shear Failure Load

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. Zhang, J. Xie, Y. X. Wang , J. Q. Chen, The Effects of welding parameters on mechanical properties and microstructure of resistance spot welded DP600 joints, J. Science and Technology of Welding and Joining. 16 (2011) 567–574.

DOI: 10.1179/136217110x12813393169732

Google Scholar

[2] M. I. Khan, M. L. Kuntz, Y. Zhou, The Effects of weld microstructure on static and impact performance of resistance spot welded joints in advanced high strength steels, J. Science and Technology of Welding and Joining. 13 (2008) 294–304.

DOI: 10.1179/174329308x271733

Google Scholar

[3] F. Nikoosohbat, S. Kheirandish, M. Goodarzi, M. Pouranvari, S.P.H. Marashi, The microstructure and failure behaviour of resistance spot welded DP980 dual phase steel, J. Materials Science and Technology. 26 (2010) 738–744.

DOI: 10.1179/174328409x414995

Google Scholar

[4] Victor Hugo Baltazar Hernandez, Sushanta Kumar Panda, Yasuaki Okita, Norman Y. Zhou, A study on heat affected zone softening in resistance spot welded dual phase steel by nanoindentation, J. Material Science. 45 (2010) 1638–1647.

DOI: 10.1007/s10853-009-4141-0

Google Scholar

[5] A.K. Lakshminarayanan, V. Balasubramanian, Comparison of RSM and ANN in predicting tensile strength of friction stir welded AA7039 aluminium alloy joints, Tans. Nonferrous Met. Soc. China. 19 (2009) 9–18.

DOI: 10.1016/s1003-6326(08)60221-6

Google Scholar
