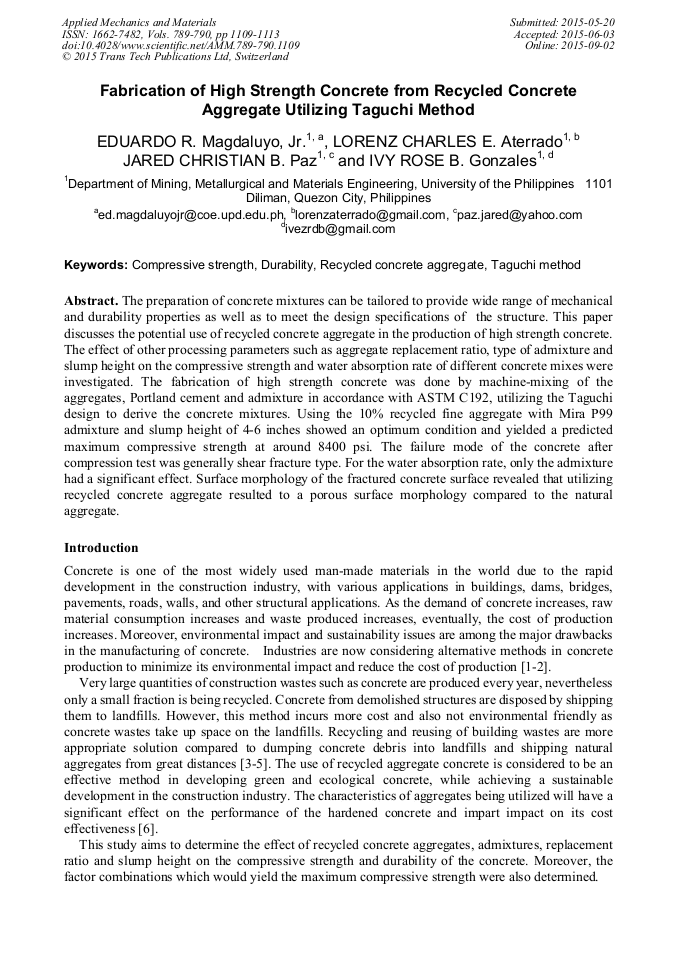

Fabrication of High Strength Concrete from Recycled Concrete Aggregate Utilizing Taguchi Method

Abstract:

The preparation of concrete mixtures can be tailored to provide wide range of mechanical and durability properties as well as to meet the design specifications of the structure. This paper discusses the potential use of recycled concrete aggregate in the production of high strength concrete. The effect of other processing parameters such as aggregate replacement ratio, type of admixture and slump height on the compressive strength and water absorption rate of different concrete mixes were investigated. The fabrication of high strength concrete was done by machine-mixing of the aggregates, cement and admixture in accordance with ASTM C192, utilizing the Taguchi design to derive the concrete mixtures. Using the 10% recycled fine aggregate with Mira P99 admixture and slump height of 4-6 inches showed an optimum condition and yielded a predicted maximum compressive strength at around 8400 psi. The failure mode of the concrete after compression test was generally shear fracture type. For the water absorption rate, only the admixture had a significant effect. Surface morphology of the fractured concrete surface revealed that utilizing recycled concrete aggregate resulted to a porous surface morphology compared to the natural aggregate.

• Periodical: Applied Mechanics and Materials (Volumes 789-790)
• Pages: 1109-1113
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.789-790.1109
• Online since: September 2015
• Authors: Eduardo Magdaluyo Jr., Lorenz Charles E. Aterrado, Jared Christian B. Paz, Ivy Rose B. Gonzales
• Keywords: Compressive Strength, Durability, Recycled Concrete Aggregate, Taguchi Method

References

[1] H. Yaprak, H. Aruntas, I. Demir, O. Simsek and G. Durmus: Int J Phys Sci Vol. 6 No. 10 (2011) pp.2455-2461.

[2] J. Xiao, L. Li, L. Shen and C.S. Poon: Cem Concr Res 71 (2015) pp.46-55.

[3] K. Kovler and N. Roussel: Cem Concr Res 41 (2011) p.775–792.

[4] S.C. Kou and C.S. Poon: Cem Concr Compos 31 (2009) pp.107-113.

[5] Z. Zhao, S. Remond, D. Damidot and W. Xu: Construction and Building Materials 81 (2015) pp.179-186.

[6] B. Hudson, in: Modification to the fine aggregate angularity test, Proceedings, Seventh Annual International Center for Agrregates Research Symposium, Austin, Texas (1999).

[7] J. Khatib: Cem Concr Res Vol. 35 No. 4 (2005) pp.763-769.

[8] K. Shi-Cong and P. Chi-Sun: Constr Build Mater Vol. 23 No. 8 (2009) pp.2877-2886.

[9] L. Evangelista and J. De Brito: Cem Concr Compos Vol. 29 No. 5 (2007) pp.397-401.

[10] J.B. Li, J.Z. Xiao and J. Huang: Chin J Build Mater Vol. 9 No. 3 (2006) pp.297-301.

[11] S.C. Kou, C.S. Poon and C. Dixon: J Mater Civ Eng Vol. 19 No. 9 (2007) pp.709-717.

[12] M. Bravo, J. de Brito, J. Pontes and L. Evangelista: Constr Build Mater 77 (2015) pp.357-369.
