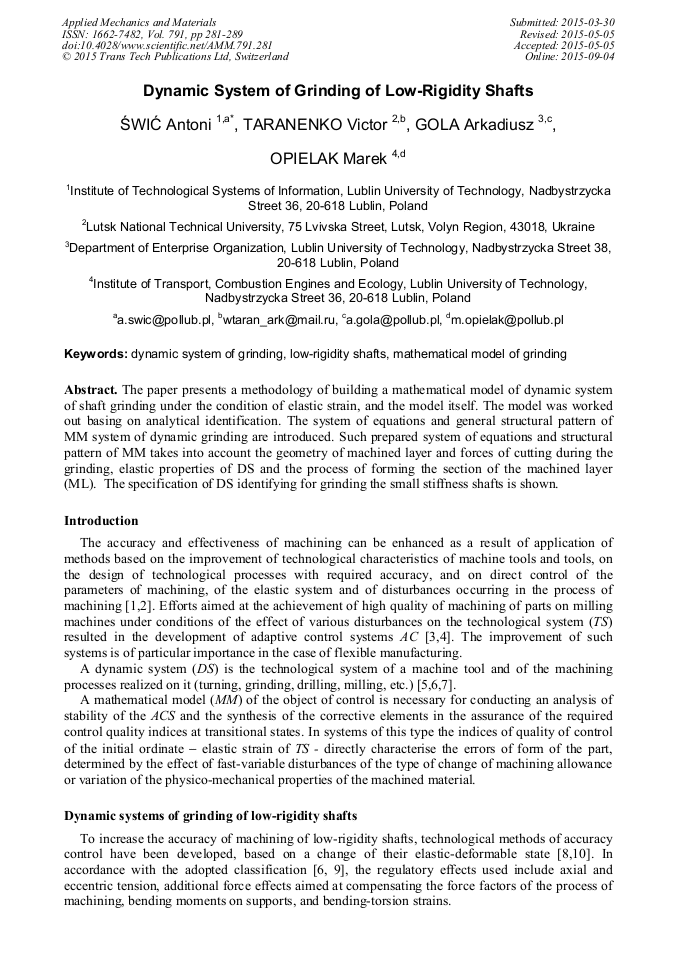

Dynamic System of Grinding of Low-Rigidity Shafts

Abstract:

The paper presents a methodology of building a mathematical model of dynamic system of shaft grinding under the condition of elastic strain, and the model itself. The model was worked out basing on analytical identification. The system of equations and general structural pattern of MM system of dynamic grinding are introduced. Such prepared system of equations and structural pattern of MM takes into account the geometry of machined layer and forces of cutting during the grinding, elastic properties of DS and the process of forming the section of the machined layer (ML). The specification of DS identifying for grinding the small stiffness shafts is shown.

• Periodical: Applied Mechanics and Materials (Volume 791)
• Pages: 281-289
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.791.281
• Online since: September 2015
• Authors: Antoni Świć*, Victor Taranenko, Arkadiusz Gola, Marek Opielak
• Keywords: Dynamic System of Grinding, Low-Rigidity Shafts, Mathematical Model of Grinding

References

[1] G. Taranenko, W. Taranenko, A. Świć, J. Szabelski, Modelling of dynamic systems of low-rigidity shaft machining, Maintenance and Reliability, 48, 4 (2010) 4-15.

[2] A. Gola, A. Świć, Computer-Aided Machine Tool Selection for Focused Flexibility Manufacturing Systems Using Economical Criteria, Actual Problems of Economics, 124, 10 (2011) 383-389.

[3] C. K. Chen, Y. M. Tsao, A stability analysis of regenerative chatter in turning process without using tailstock. Int. J Adv Manuf. Technol. 29 (2006) 648-654.

DOI: 10.1007/s00170-005-2573-5

[4] G. Litak, R. Rusinek, Dynamics of a stainless steel turning process by statistical and recurrence analyses. Meccanica 47 (2012) 1517-1526.

DOI: 10.1007/s11012-011-9534-x

[5] R. Katz, Lee CW, Ulsoy A.G., Scott RA. The dynamic response of a rotating shaft subject to a moving load, J Sound Vibr., 122 (1988) 131-148.

DOI: 10.1016/s0022-460x(88)80011-7

[6] W. Taranenko, A. Świć: Technology of forming machine parts with low rigidity (in Polish). Lublin: Wydawnictwo Politechniki Lubelskiej, 2005, 282 s.

[7] A. Świć, D. Wołos, J. Zubrzycki, M. Opielak, A. Gola, W. Taranenko, Accuracy Control in the Machining of Low Rigidity Shafts, Applied Mechanics and Materials, 613 (2014) 357-367, DOI: 10. 4028/www. scientific. net/AMM. 613. 357.

DOI: 10.4028/www.scientific.net/amm.613.357

[8] A. Świć, W. Taranenko, J. Szabelski, Modelling dynamic systems of low-rigid shaft grinding, Maintenance and Reliability, 2 (2011) 13–24.

[9] A. Świć, W. Taranenko, Adaptive control of machining accuracy of axial-symmetrical low-rigidity parts in elastic-deformable state, Maintenance and Reliability, 3 (2012) 215-221.

[10] A. Świć, D. Wołos, G. Litak, Method of control of machining accuracy of low-rigidity elastic-deformable shafts, Latin American Journal of Solids and Structures, 2 (2014) 260-278.

DOI: 10.1590/s1679-78252014000200007

[11] A. Świć, L. Mazurek, Modeling the reliability and efficiency of flexible synchronous production line, Maintenance and Reliability, 4 (2011) 41-48.
