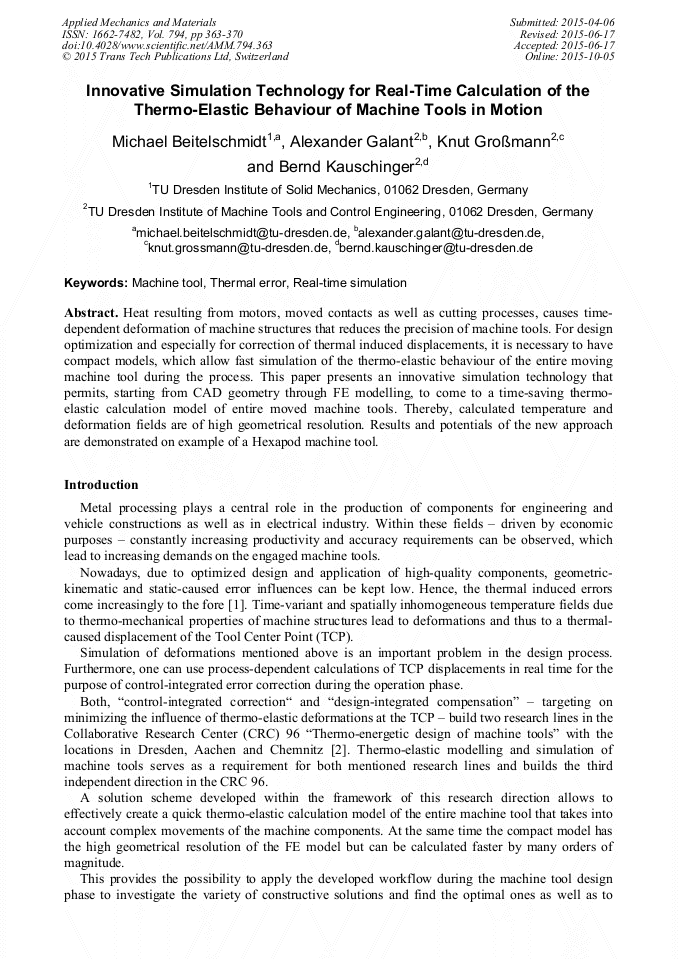

Innovative Simulation Technology for Real-Time Calculation of the Thermo-Elastic Behaviour of Machine Tools in Motion

Abstract:

Heat resulting from motors, moved contacts as well as cutting processes, causes time-dependent deformation of machine structures that reduces the precision of machine tools. For design optimization and especially for correction of thermal induced displacements, it is necessary to have compact models, which allow fast simulation of the thermo-elastic behaviour of the entire moving machine tool during the process. This paper presents an innovative simulation technology that permits, starting from CAD geometry through FE modelling, to come to a time-saving thermo-elastic calculation model of entire moved machine tools. Thereby, calculated temperature and deformation fields are of high geometrical resolution. Results and potentials of the new approach are demonstrated on example of a Hexapod machine tool.

• Periodical: Applied Mechanics and Materials (Volume 794)
• Pages: 363-370
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.794.363
• Online since: October 2015
• Authors: Michael Beitelschmidt, Alexander Galant*, Knut Großmann, Bernd Kauschinger
• Keywords: Machine Tool, Real-Time Simulation, Thermal Error

References

[1] J. Mayr, J. Jedrzejewski, E. Uhlmann, M.A. Donmez, W. Knapp, F. Härtig, K. Wendt, et al., Thermal issues in machine tools, CIRP Annals-Manufacturing Technology. 61 (2012) 771-791.

DOI: 10.1016/j.cirp.2012.05.008

[2] K. Großmann, Thermo-energetic Design of Machine Tools, Springer, Berlin, (2015).

[3] M. Ess, Simulation and Compensation of Thermal Errors of Machine Tools, Dissertation, VDI, Zürich, (2012).

[4] U. Heisel, W. Maier, Reduktion thermischer FEM-Simulationsmodelle, wt online. 102 (2012) 2-9.

DOI: 10.37544/1436-4980-2012-1-2-2

[5] Ch. Großmann, H.G. Roos, M. Stynes, Numerical Treatment of Partial Differential Equations, Springer, Heidelberg, (2006).

[6] S. Vey, A. Voigt, AMDiS – adaptive multidimensional simulations. Computing and Visualization in Science. 10 (2007) 57–67.

DOI: 10.1007/s00791-006-0048-3

[7] Z. Sun, A. Dadalau, A. Verl, Component oriented and automatic generation of FE models for parallel kinematics, Production Engineering. 7 (2013) 233-237.

DOI: 10.1007/s11740-012-0440-4

[8] M. Partzsch, M. Beitelschmidt, An arithmetic correction for avoiding non-uniform heat input distribution caused by translational motions within time-discrete thermal analyses, in: Proceedings of 12th Biennial Conference on Engineering Systems Design and Analysis. Kopenhagen, (2014).

DOI: 10.1115/esda2014-20239

[9] J. Glänzel, Korrektur thermoelastischer Verformungen durch den Einsatz der adaptiven FEM, Dissertation, Wissenschaftliche Scripten, Auerbach, (2014).

[10] G. Jungnickel, Simulation des thermischen Verhaltens von Werkzeugmaschinen, Verlag der TU Dresden, Dresden, (2000).

[11] W.H.A. Schilders, H.A. Van der Vorst, J. Rommes, Model Order Reduction: Theory, Research Aspects and Applications, Springer, Berlin, (2008).

DOI: 10.1007/978-3-540-78841-6

[12] A. Galant, K. Großmann, A. Mühl, Thermo-elastic simulation of entire machine tool, in: K. Großmann (Eds. ), Thermo-energetic Design of Machine Tools, Springer, Berlin, 2015, pp.69-84.

DOI: 10.1007/978-3-319-12625-8_7

[13] J. P. Merlet, Parallel Robots, second ed., Springer, Dordrecht, (2006).

[14] X. Thiem, K. Großmann, A. Mühl, Modular control integrated correction of thermoelastic errors of machine tools based on the thermoelastic functional chain, Advanced Materials Research, 2014 WGP Congress. 1018 (2014) 411-418.

DOI: 10.4028/www.scientific.net/amr.1018.411

[15] K. Großmann, A. Galant, M. Merx, M. Riedel, Methodology for the efficient analysis of thermal and thermo-elastic behaviour of machine tools, Advanced Materials Research, 2014 WGP Congress. 1018 (2014) 395-402.

DOI: 10.4028/www.scientific.net/amr.1018.395
