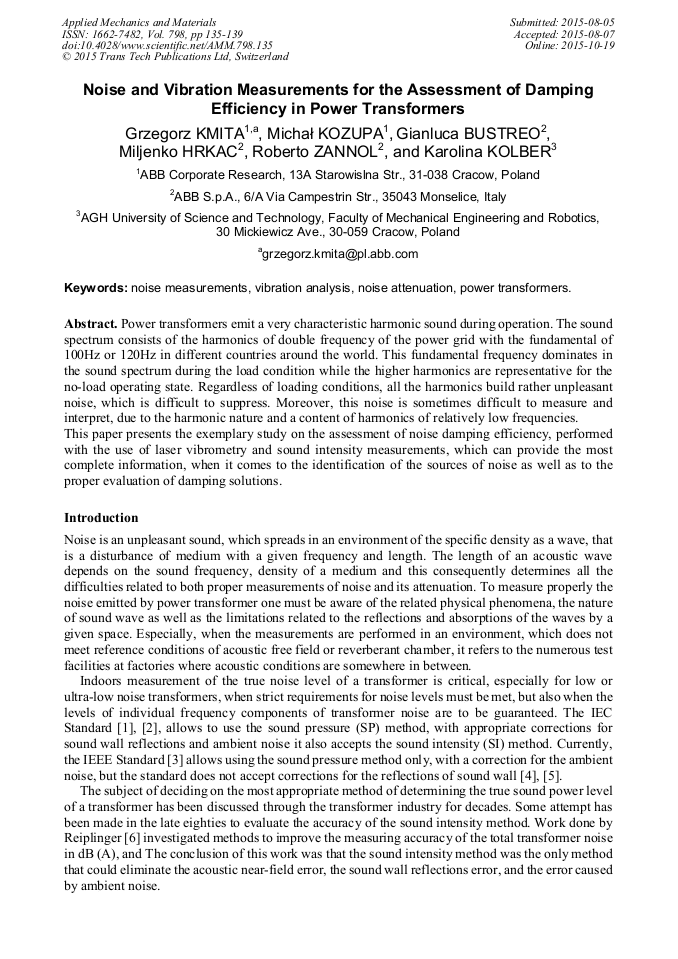

Noise and Vibration Measurements for the Assessment of Damping Efficiency in Power Transformers

Abstract:

Power transformers emit a very characteristic harmonic sound during operation. The sound spectrum consists of the harmonics of double frequency of the power grid with the fundamental of 100Hz or 120Hz in different countries around the world. This fundamental frequency dominates in the sound spectrum during the load condition while the higher harmonics are representative for the no-load operating state. Regardless of loading conditions, all the harmonics build rather unpleasant noise, which is difficult to suppress. Moreover, this noise is sometimes difficult to measure and interpret, due to the harmonic nature and a content of harmonics of relatively low frequencies.This paper presents the exemplary study on the assessment of noise damping efficiency, performed with the use of laser vibrometry and sound intensity measurements, which can provide the most complete information, when it comes to the identification of the sources of noise as well as to the proper evaluation of damping solutions.

• Periodical: Applied Mechanics and Materials (Volume 798)
• Pages: 135-139
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.798.135
• Online since: October 2015
• Authors: Grzegorz Kmita*, Michał Kozupa, Gianluca Bustreo, Miljenko Hrkac, Roberto Zannol, Karolina Kolber
• Keywords: Noise Attenuation, Noise Measurements, Power Transformers, Vibration Analysis

References

[1] IEC 60076-10: 2001: Power transformers – Part 10: Determination of sound levels.

[2] IEC 60076-10-1: 2005: Power transformers – Part 10-1: Determination of transformer and reactor sound levels – User guide.

[3] IEEE Std C57. 12. 90-2006: IEEE Standard Test Code for Liquid Immersed Distribution, Power and Regulating Transformers.

DOI: 10.1109/ieeestd.2006.320496

[4] R.S. Girgis, K. Garner, M. Bernesjö, J. Anger: Measuring No – Load and Load noise of Power Transformers using the Sound Pressure and Sound Intensity Methods – Part – I: Outdoors measurements, in: Power and Energy Society General Meeting - Conversion and Delivery of Electrical Energy in the 21st Century, 2008 IEEE, 20-24 July 2008, p.1.

DOI: 10.1109/pes.2008.4596507

[5] R.S. Girgis, K. Garner, M. Bernesjö, J. Anger, D. Chu: Measuring No – Load and Load noise of Power Transformers using the Sound Pressure and Sound Intensity Methods – Part – II: Indoors measurements, in: Power and Energy Society General Meeting - Conversion and Delivery of Electrical Energy in the 21st Century, 2008 IEEE, 20-24 July 2008, p.1.

DOI: 10.1109/pes.2008.4596784

[6] E. Reiplinger: Study of Noise Emitted by Power Transformers based on Today's Viewpoint, CIGRE Session 1988, Paper no. 12-08.

[7] W. Bakkers, P. Van Leemput, J. De Ceuster: Application of the Sound Intensity Measurement Technique to the Characterization of Transformer Noise, CIGRE Session 1988, Paper 12-10.

[8] Transformer Noise: Determination of Sound Power Level using the Sound Intensity Measurement Method Report by Cigre Working Group 12 of Study Committee 12. Electra No 144 October (1992).
