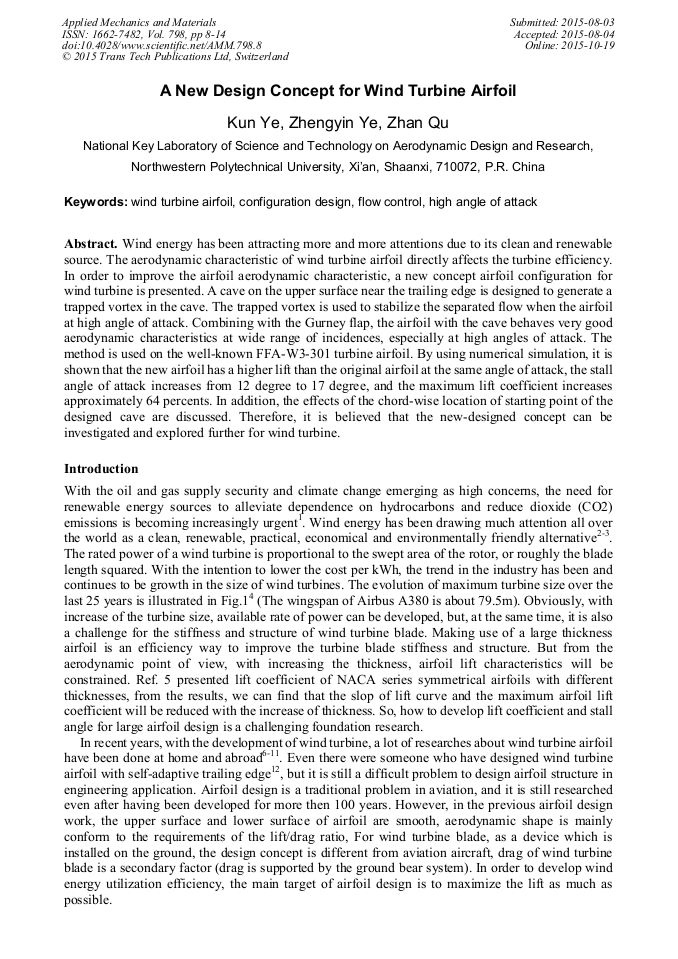

A New Design Concept for Wind Turbine Airfoil

Abstract:

Wind energy has been attracting more and more attentions due to its clean and renewable source. The aerodynamic characteristic of wind turbine airfoil directly affects the turbine efficiency. In order to improve the airfoil aerodynamic characteristic, a new concept airfoil configuration for wind turbine is presented. A cave on the upper surface near the trailing edge is designed to generate a trapped vortex in the cave. The trapped vortex is used to stabilize the separated flow when the airfoil at high angle of attack. Combining with the Gurney flap, the airfoil with the cave behaves very good aerodynamic characteristics at wide range of incidences, especially at high angles of attack. The method is used on the well-known FFA-W3-301 turbine airfoil. By using numerical simulation, it is shown that the new airfoil has a higher lift than the original airfoil at the same angle of attack, the stall angle of attack increases from 12 degree to 17 degree, and the maximum lift coefficient increases approximately 64 percents. In addition, the effects of the chord-wise location of starting point of the designed cave are discussed. Therefore, it is believed that the new-designed concept can be investigated and explored further for wind turbine.

• Periodical: Applied Mechanics and Materials (Volume 798)
• Pages: 8-14
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.798.8
• Online since: October 2015
• Authors: Kun Ye*, Zheng Yin Ye, Zhan Qu
• Keywords: Configuration Design, Flow Control, High Angle of Attack, Wind Turbine Airfoil

References

[1] Z. Yang. P. Sarkar, H. Hu, An experimental investigation on the wake characteristics of a wind turbine in an atmospheric boundary layer wind, AIAA Paper 2009-2408.

DOI: 10.2514/6.2011-3815

[2] A.D. Sahin, Progress in Energy and Combustion Science, 30, 501-543.

[3] S. Jung, T. No, K. Ryu, Renewable Energy, 30, 631-644.

[4] Q.T. Griffith, Structural dynamics analysis and model validation of wind turbine structures, AIAA Paper 2009-2408.

[5] Z. Ye, M. Xie, Mechanics in Engineering, 2009, V31(3): 27-30. (In Chinese).

[6] W.A. Timmer, An overview of NACA 6-digit airfoil series characteristics with reference to airfoils for large wind turbine blades, AIAA Paper 2009-268.

DOI: 10.2514/6.2009-268

[7] R.P.J.O.M. van Rooij, J.G. Schepers, The Effect of blade geometry on the normal force distribution of a rotating blade, AIAA Paper 2005-777.

DOI: 10.2514/6.2005-777

[8] R. Chow, C.P. van Dam, Computational investigations of deploying load control microtabs on a wind turbine airfoil, AIAA Paper 2007-1018.

DOI: 10.2514/6.2007-1018

[9] S.J. Johnson, J.P. Baker, C.P. van Dam, D. Berg, Wind Energy, Vol. 13, No. 2-3, 2010, pp.239-253.

[10] A.M. Cooperman, R. Chow, S.J. Johnson, C.P. van Dam, Experimental and computational analysis of a wind turbine airfoil with active microtabs, AIAA Paper 2011-347.

DOI: 10.2514/6.2011-347

[11] F. Grasso, Usage of numerical optimization in wind turbine airfoil design, AIAA Paper 2010-4404.

DOI: 10.2514/6.2010-4404

[12] C. Bak, M. Gaunaa1, P.B. Andersen, et al, Wind tunnel test on wind turbine airfoil with adaptive trailing edge geometry, AIAA Paper 2007-1016.

DOI: 10.2514/6.2007-1016

[13] M.E. Camocardi, J.M. Di Leo, J.S. Delnero, et al, Experimental study of a NACA 4412 airfoil with movable gurney flap, AIAA Paper 2011-1309.

DOI: 10.2514/6.2011-1309

[14] D.I. Greenwell, C. Dance, L. McFarlane, et al, Gurney flaps on slender and non-Slender delta wings, AIAA Paper 2006-3468.

DOI: 10.2514/6.2006-3468

[15] M.P. Patel, R.M. Kolacinski, Distributed mechanical actuators for design of a closed-loop flow-control system, AIAA Paper 2006-3158.

DOI: 10.2514/6.2006-3158

[16] Z. Ye, J. HU, Aeronautical Computing Technique, 2009, 39(4): 6-9, (In Chinese).

[17] F. Bertagnolio, N. Sorensen, J. Johansen, P. Fuglsang, Wind turbine airfoil catalogue Roso-R-1280(R), Riso National Laboratory, Roskide, Denmark, (2001).
