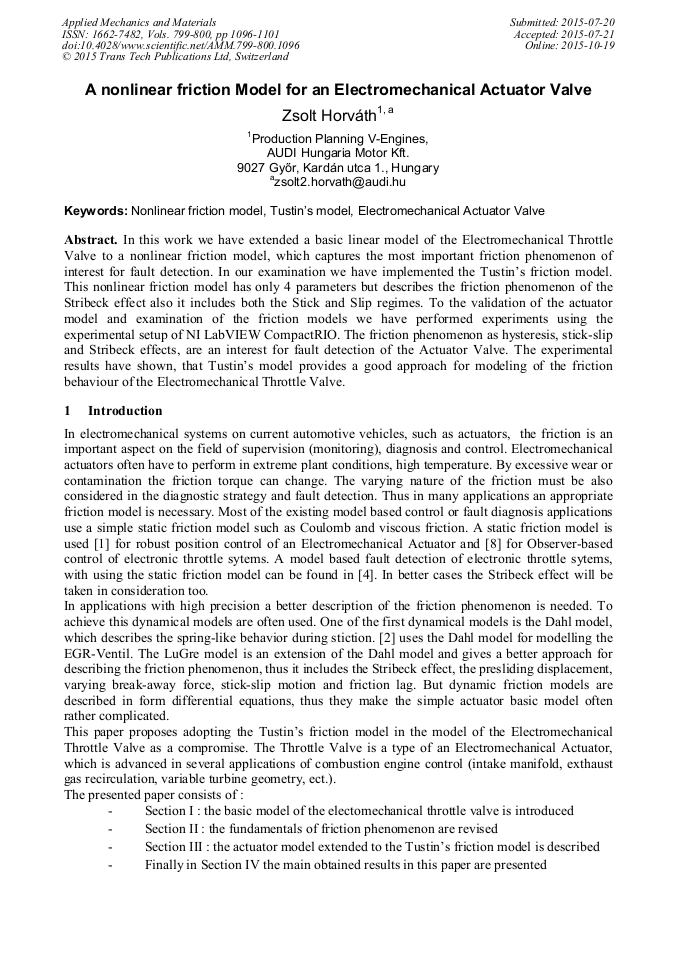

A Nonlinear Friction Model for an Electromechanical Actuator Valve

Abstract:

In this work we have extended a basic linear model of the Electromechanical Throttle Valve to a nonlinear friction model, which captures the most important friction phenomenon of interest for fault detection. In our examination we have implemented the Tustin’s friction model. This nonlinear friction model has only 4 parameters but describes the friction phenomenon of the Stribeck effect also it includes both the Stick and Slip regimes. To the validation of the actuator model and examination of the friction models we have performed experiments using the experimental setup of NI LabVIEW CompactRIO. The friction phenomenon as hysteresis, stick-slip and Stribeck effects, are an interest for fault detection of the Actuator Valve. The experimental results have shown, that Tustin’s model provides a good approach for modeling of the friction behaviour of the Electromechanical Throttle Valve.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 1096-1101
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.1096
• Online since: October 2015
• Authors: Zsolt Horváth*
• Keywords: Electromechanical Actuator Valve, Nonlinear Friction Model, Tustin’s Model

References

[1] Reichhartinger, M., Horn, M.: Robust position control of an electromechanical actuator for automotive applications, World Academy of Science, Engineering and Technology, Vol. 5, (2011).

[2] Laghrouce, S., Ahmed, F., S., Bagdouri, M.,E., Wack, M., Gaber, J., Becherif, M. : Modeling and identification of a mechatronic exhaust gas recirculation actuator of an internal combustion engine, American Control Conference Marriot Waterfront, p.2242 – 2247, (2010).

DOI: 10.1109/acc.2010.5530526

[3] Grepl, R., Lee, B.: Modelling, identification and control of electronics throttle body using Dspace Tools, Technical Computing Prague, (2008).

[4] Wu, J., Zhao, Y. : Model-based fault-diagnosis of electronic throttle system, Applied Mechanics and Materials, Vol. 220-223, pp.1084-1088, (2012).

DOI: 10.4028/www.scientific.net/amm.220-223.1084

[5] Contreras, A., F., Quiroz, I.,P., de Wit, C.,C. : Further results on modelling and identification of an electronic throttle body, 10th Mediterran Conference on Control and Automation, (2002).

[6] Loh, R.,N.,K., Thanom, W., Pyko, J., S., Lee, A. : Electronic throttle control system: modeling, identification and model-based control designs, Engineering, Vol. 5, No. 7, pp.587-600, (2013).

DOI: 10.4236/eng.2013.57071

[7] Mehmood, A. : Modeling, simulation and robust control of an electro-pneumatic actuator for a variable geometry turbocharger, Doctoral Thesis, p.87, (2013).
