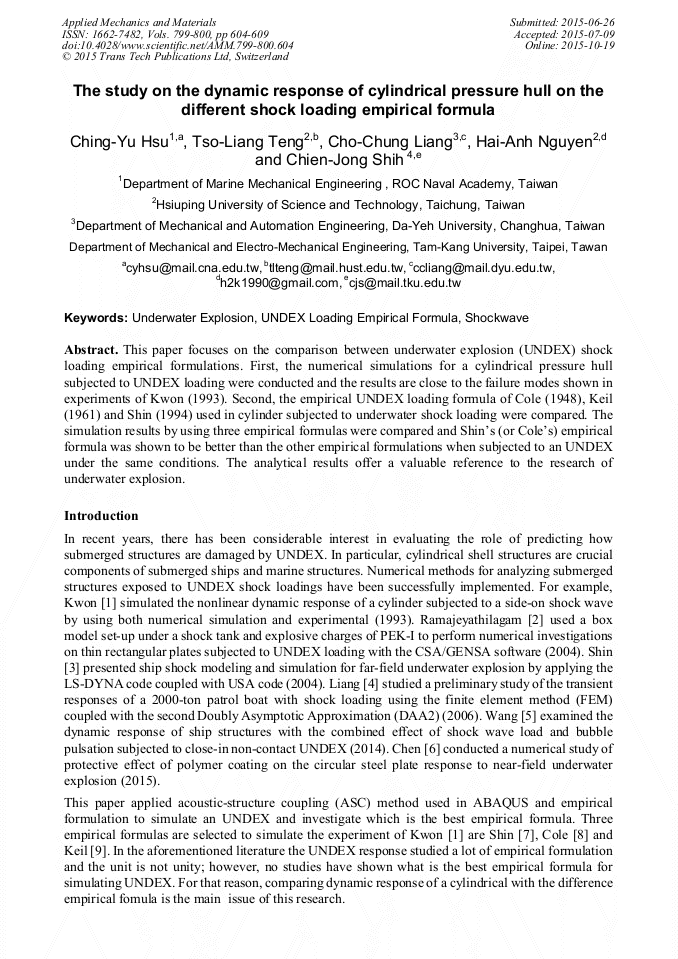

The Study on the Dynamic Response of Cylindrical Pressure Hull on the Different Shock Loading Empirical Formula

Abstract:

This paper focuses on the comparison between underwater explosion (UNDEX) shock loading empirical formulations. First, the numerical simulations for a cylindrical pressure hull subjected to UNDEX loading were conducted and the results are close to the failure modes shown in experiments of Kwon (1993). Second, the empirical UNDEX loading formula of Cole (1948), Keil (1961) and Shin (1994) used in cylinder subjected to underwater shock loading were compared. The simulation results by using three empirical formulas were compared and Shin’s (or Cole’s) empirical formula was shown to be better than the other empirical formulations when subjected to an UNDEX under the same conditions. The analytical results offer a valuable reference to the research of underwater explosion.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 604-609
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.604
• Online since: October 2015
• Authors: Ching Yu Hsu*, Tso Liang Teng, Cho Chung Liang, Hai Anh Nguyen, Chien Jong Shih
• Keywords: Shockwave, Underwater Explosion, UNDEX Loading Empirical Formula

References

[1] Kwon, Y. W., Fox, P. K., Underwater shock responses of a cylinder subjected to aside-on explosion. Comput. Struct., 48 (4), 1993：646–737.

[2] Ramajeyathilagam K, Vendhan CP. Deformation and rupture of thin rectangular plates subjected to underwater shock. International Journal of Impact Engineering 2004; 30(6): 699-719.

DOI: 10.1016/j.ijimpeng.2003.01.001

[3] Shin YS. Ship shock modeling and simulation for far-field underwater explosion. Computers & Structures 2004; 82: 2211-2219.

DOI: 10.1016/j.compstruc.2004.03.075

[4] Liang CC, Tai YS. Shock response of a surface ship subjected to noncontact underwater explosions. Ocean Engineering 2006; 33: 748-772.

DOI: 10.1016/j.oceaneng.2005.03.011

[5] Wang H, Zhu X, Cheng YS, Lin J. Experimental and numerical investigation of ship structure subjected to close-in underwater shock wave and following gas bubble pulse . Marine Structures 2014; 39: 90–117.

DOI: 10.1016/j.marstruc.2014.07.003

[6] Chen Y, Chen F, Du ZP, Wang Y, Zhao PD, Hua HX. Protective effect of polymer coating on the circular steel plate response to near-field underwater explosion. Marine Structures 2015; 40: 247-266.

DOI: 10.1016/j.marstruc.2014.11.005

[7] Shin, Y. S, Naval Ship Shock Design and Analysis. Short Course Presented at Chung Cheng Institute of Technology, Aug., (1994).

[8] Cole, R. H., Underwater Explosion. Princeton University Press, New York, (1948).

[9] Keil, A. H., The Response of Ships to Underwater Explosion. paper7, The Annual Meeting of the Society of Naval Architect and Marine Engineering, New York, 1961: 366-410m.

[10] ABAQUS user's and theory manuals, version 6. 11. 1 Dassault Systèmes, RI, USA, (2011).
