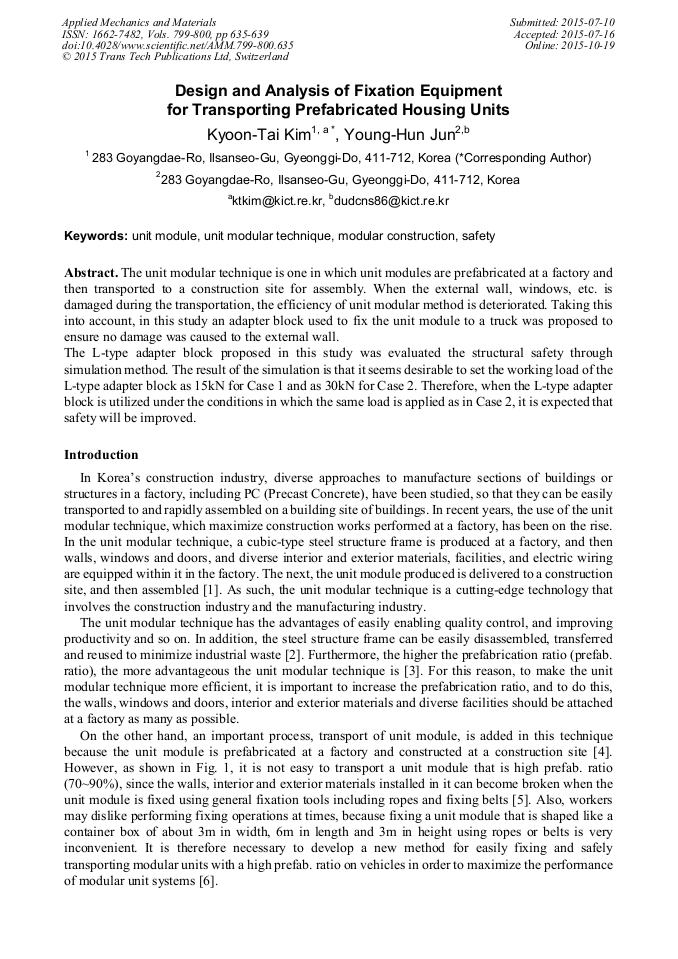

Design and Analysis of Fixation Equipment for Transporting Prefabricated Housing Units

Abstract:

The unit modular technique is one in which unit modules are prefabricated at a factory and then transported to a construction site for assembly. When the external wall, windows, etc. is damaged during the transportation, the efficiency of unit modular method is deteriorated. Taking this into account, in this study an adapter block used to fix the unit module to a truck was proposed to ensure no damage was caused to the external wall.The L-type adapter block proposed in this study was evaluated the structural safety through simulation method. The result of the simulation is that it seems desirable to set the working load of the L-type adapter block as 15kN for Case 1 and as 30kN for Case 2. Therefore, when the L-type adapter block is utilized under the conditions in which the same load is applied as in Case 2, it is expected that safety will be improved.

• Periodical: Applied Mechanics and Materials (Volumes 799-800)
• Pages: 635-639
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.799-800.635
• Online since: October 2015
• Authors: Kyoon Tai Kim*, Young Hun Jun
• Keywords: Modular Construction, Safety, Unit Modular Technique, Unit Module

References

[1] S.H. Lim, K.S. Park, C.U. Chae and B.M. Kwon, A study on factory production of modular unit housing systems in Korea, United States, Japan, Europe: Journal of the Korean Housing Association, Seoul (Korea), August 2007, 27-35, (2007).

[2] K.T. Kim, M.J. Chae, N.C. Park and S.Y. Park, Development of construction technologies for one day housing, Strategy Project Report of KICT, Ilsan (Korea), December 2013, 1-104, (2013).

[3] K.T. Kim and N.C. Park, Experimental Evaluation of Fixing Equipment for Improving the Efficiency of Modular Unit Systems: Journal of Building Construction and Planning Research, 2, 244-254, 2014. http: /dx. doi. org/10. 4236/jbcpr. 2014. 24022.

DOI: 10.4236/jbcpr.2014.24022

[4] K.T. Kim, S. Kim, N.C. Park and Y.R. Lee, Development of fixing equipment for transporting modular units. Proc. of the Korean Institute for Structural Maintenance and Inspection, Jeju (Korea) October 2014, 709-10, (2014).

[5] S.Y. Park, K.T. Kim, N.C. Park and I.S. Chung, Study of improved transportation methods for modular units. Proc. of the Korean Institute of Building Construction (Industry), Ansan(Korea), November 2012, 243-244, (2012).

[6] S.Y. Park, K.T. Kim and N.C. Park, Development and evaluation of fixation equipment for transporting modular units: Journal of the Korean Institute of Building Construction, December 2013, 609-18, (2013).

DOI: 10.5345/jkibc.2013.13.6.609

[7] K.T. Kim, Y.H. Lee, D.H. Lee, C.H. Kim, Development of construction technologies for one day housing, Strategy Project Report of KICT, Ilsan (Korea), December 2011. 1-100, (2011).
