Contact Stress and Contact Width Analysis of Corrugated Metal Gasket

Abstract:

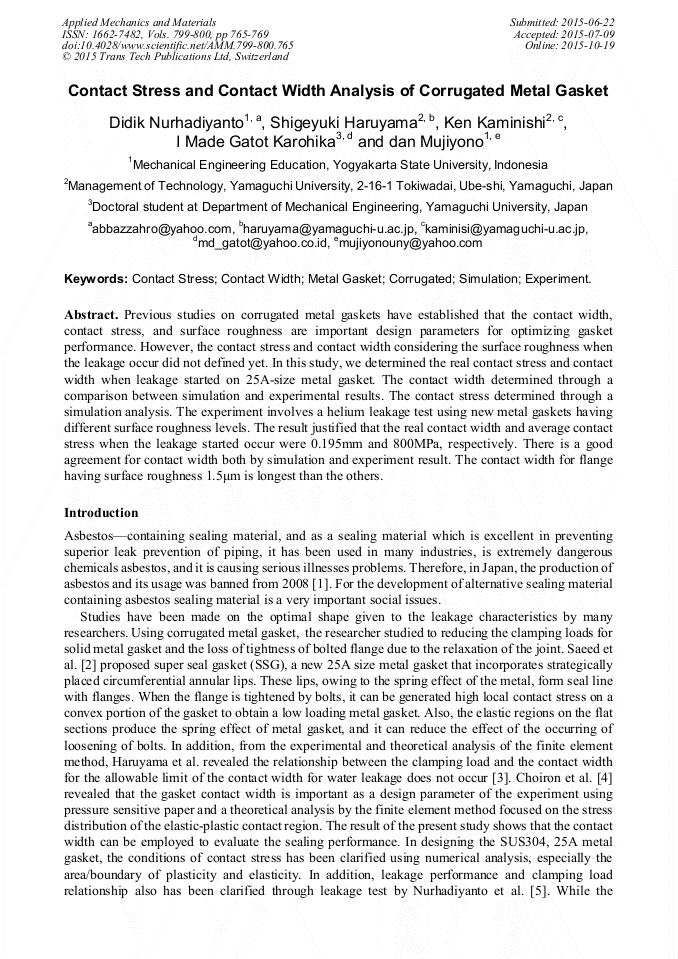

Article Preview

Previous studies on corrugated metal gaskets have established that the contact width, contact stress, and surface roughness are important design parameters for optimizing gasket performance. However, the contact stress and contact width considering the surface roughness when the leakage occur did not defined yet. In this study, we determined the real contact stress and contact width when leakage started on 25A-size metal gasket. The contact width determined through a comparison between simulation and experimental results. The contact stress determined through a simulation analysis. The experiment involves a helium leakage test using new metal gaskets having different surface roughness levels. The result justified that the real contact width and average contact stress when the leakage started occur were 0.195mm and 800MPa, respectively. There is a good agreement for contact width both by simulation and experiment result. The contact width for flange having surface roughness 1.5μm is longest than the others.

Info:

Periodical:

Edited by:

Guanghsu Chang, Jieh-Shian Young and Wirachman Wisnoe

Pages:

765-769

Citation:

D. Nurhadiyanto et al., "Contact Stress and Contact Width Analysis of Corrugated Metal Gasket", Applied Mechanics and Materials, Vols. 799-800, pp. 765-769, 2015

Online since:

October 2015

Export:

Price:

$38.00

* - Corresponding Author

[1] Asbestos is hard to replace as Japan heads for ban, Sealing Technology 1 (2006) 1.

[2] H.A. Saeed, S. Izumi, S. Sakai, S. Haruyama, M. Nagawa, H. Noda: Development of New Metallic Gasket and its Optimum Design for Leakage Performance, Journal of Solid Mechanics and Material Engineering 2: 1 (2008) pp.105-114.

DOI: https://doi.org/10.1299/jmmp.2.105

[3] S. Haruyama, M.A. Choiron, K. Kaminishi: A Study of Design Standard and Performance Evaluation on New Metallic Gasket, Proceeding of the 2nd International Symposium on Digital Manufacturing, Wuhan China, (2009) pp.107-113.

[4] M.A. Choiron, S. Haruyama, K. Kaminishi: Simulation and Experimentation on the Contact Width of New Metal Gasket for Asbestos Substitution, World Academy of Science, Engineering and Technology, vol. 5, (2011) pp.1182-1186.

[5] D. Nurhadiyanto, M.A. Choiron, S. Haruyama, K. Kaminishi: Optimization of New 25A-size Metal Gasket Design Based on Contact Width Considering Forming and Contact Stress Effect, World Academy of Science, Engineering and Technology Vol. 6 (2012).

DOI: https://doi.org/10.7763/ijmo.2011.v1.26

[6] S. Haruyama, D. Nurhadiyanto, M.A. Choiron, and K. Kaminishi: Influence of Surface Roughness on Leakage of New Metal Gasket, International Journal of Pressure Vessels and Piping, 111-112 (2013) pp.146-154.

DOI: https://doi.org/10.1016/j.ijpvp.2013.06.004

[7] S. Haruyama, D. Nurhadiyanto, and K. Kaminishi: Contact Width Analysis of Corrugated Metal Gasket based on Surface Roughness, Advanced Material Research, Vol. 856 (2014) pp.92-97.

DOI: https://doi.org/10.4028/www.scientific.net/amr.856.92

[8] JISB2404, Dimensions of gaskets for use with the pipe flanges, Japanese Standards Assosiations (2006).

[9] JIS B2220, Steel Pipe Flanges, Japanese Standards Association (2004).
