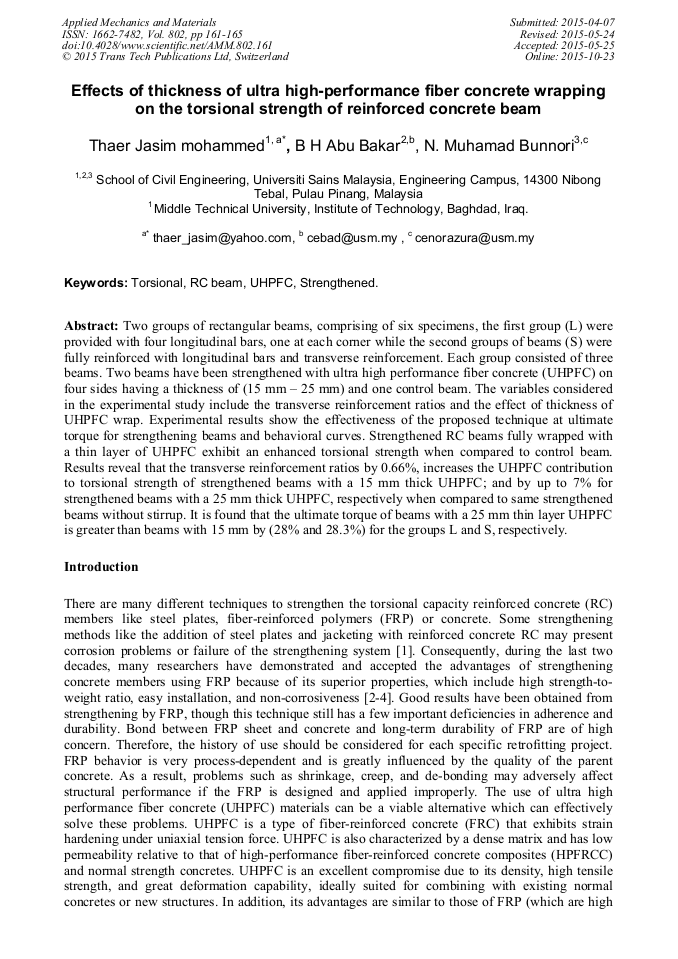

Effects of Thickness of Ultra High-Performance Fiber Concrete Wrapping on the Torsional Strength of Reinforced Concrete Beam

Abstract:

Abstract: Two groups of rectangular beams, comprising of six specimens, the first group (L) were provided with four longitudinal bars, one at each corner while the second groups of beams (S) were fully reinforced with longitudinal bars and transverse reinforcement. Each group consisted of three beams. Two beams have been strengthened with ultra high performance fiber concrete (UHPFC) on four sides having a thickness of (15mm - 25mm) and one control beam. The variables considered in the experimental study include the transverse reinforcement ratios and the effect of thickness of UHPFC wrap. Experimental results show the effectiveness of the proposed technique at ultimate torque for strengthening beams and behavioral curves. Strengthened RC beams fully wrapped with a thin layer of UHPFC exhibit an enhanced torsional strength when compared to control beam. Results reveal that the transverse reinforcement ratios by 0.66%, increases the UHPFC contribution to torsional strength of strengthened beams with a 15 thick UHPFC; and by up to 7% for strengthened beams with a 25 thick UHPFC, respectively when compared to same strengthened beams without stirrup. It is found that the ultimate torque of beams with a 25 mm thin layer UHPFC is greater than beams with 15 mm by (28% and 28.3%) for the groups L and S, respectively.

• Periodical: Applied Mechanics and Materials (Volume 802)
• Pages: 161-165
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.802.161
• Online since: October 2015
• Authors: Thaer Jasim Mohammed, Badorul Hisham Abu Bakar, Norazura Muhamad Bunnori
• Keywords: RC Beam, Strengthened, Torsional, UHPFC

References

[1] I. Iskhakov, Y. Ribakov, K. Holschemacher, T. Mueller, High Performance Repairing of Reinforced Concrete Structures. Mater Design, 44: 216-222. (2013).

DOI: 10.1016/j.matdes.2012.07.041

[2] C. E. Chalioris, Torsional Strengthening of Rectangular and Flanged Beams using Carbon Fibre-Reinforced-Polymers–Experimental Study. Constr B. Mater., 22(1): 21-29. (2008).

DOI: 10.1016/j.conbuildmat.2006.09.003

[3] A. Deifalla, and A. Ghobarah, Strengthening RC T-beams Subjected to Combined Torsion and Shear using FRP Fabrics: Experimental Study. J. Compos Constr., 14(3): 301-311. (2010).

DOI: 10.1061/(asce)cc.1943-5614.0000091

[4] V. H. Jariwala, V. P. Patel, P. S. Purohit, Strengthening of RC Beams Subjected to Combined Torsion and Bending with GFRP Composites. Procedia Eng., 51: 282-289. (2013).

DOI: 10.1016/j.proeng.2013.01.038

[5] A. Nanni, A new tool in the concrete and masonry repair. Concr. Int. Des. Constr, 34, 43-49. (2012).

[6] B. A. Tayeh, B H Abu Bakar, M A Megat Johari and Yen Lei Voo, Evaluation of Bond Strength between Normal Concrete Substrate and Ultra High Performance Fiber Concrete as a Repair Material. Procedia Eng., 54: 554-563. (2013a).

DOI: 10.1016/j.proeng.2013.03.050

[7] B. A. Tayeh, B H Abu Bakar, M A Megat Johari and Y. L. Voo, Utilization of Ultra-high Performance Fibre Concrete (UHPFC) for Rehabilitation – A Review. Procedia Eng., 54: 525-538. (2013b).

DOI: 10.1016/j.proeng.2013.03.048

[8] Y. Lei, B. Nematollahi, A. Mohamed, B. Gopal, T. Shun, Application of Ultra High Performance Fiber Reinforced Concrete–The Malaysia Perspective. I. J. Constr Eng Technology, 3(1): 26-44. (2012).

[9] K. Habel, Experimental Investigation of Composite Ultra-High-Performance Fiber-Reinforced Concrete and Conventional Concrete Members. ACI Struct. J., 104(1). (2007).

DOI: 10.14359/18437

[10] G. Martinola, A. Meda, G.A. Plizzari, Z. Rinaldi, Strengthening and Repair of RC Beams with Fiber Reinforced Concrete. Cement and Concrete Composites, 32(9): 731-739. (2010).

DOI: 10.1016/j.cemconcomp.2010.07.001

[11] T. Noshiravani, and E. Brühwiler, Behaviour of UHPFRC-RC Composite Beams Subjected to Combined Bending and Shear. 8th fib PhD Symposium, fib Symposium. (2010).

[12] T. Noshiravani, and E. Brühwiler, Experimental Investigation on Reinforced Ultra-High-Performance Fiber-Reinforced Concrete Composite Beams Subjected to Combined Bending and Shear. ACI Struct. J., 110(2). (2013).

DOI: 10.14359/51684405

[13] K. Wille, A. E. Naaman, and G. J. Parra-Montesinos, Ultra-High Performance Concrete with Compressive Strength Exceeding 150 MPa (22 ksi): a Simpler Way. ACI Materials Journal, 108(1). (2011).

DOI: 10.14359/51664215
