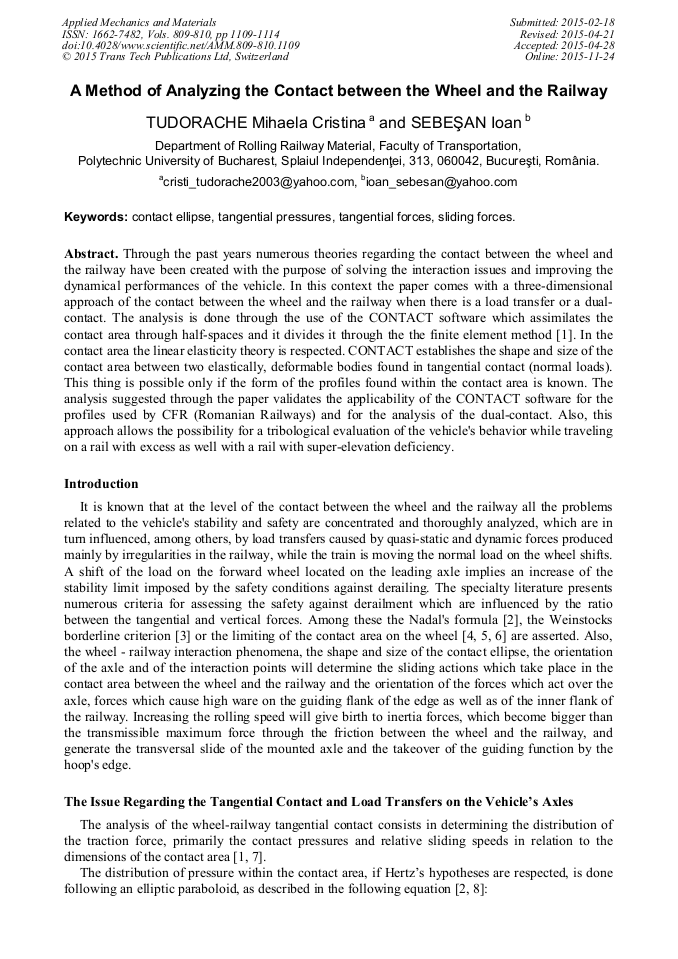

A Method of Analyzing the Contact between the Wheel and the Railway

Abstract:

Through the past years numerous theories regarding the contact between the wheel and the railway have been created with the purpose of resolving the interaction issues and improving the dynamical performances of the vehicle. In this context the paper comes with a three-dimensional approach of the contact between the wheel and the railway when there is a load transfer or a dual-contact. The analysis is done through the use of the CONTACT software which assimilates the contact the contact area through half-spaces and it divides it through the method the finite element [1]. In the contact area the linear elasticity theory is respected. CONTACT establishes the shape and size of the contact area between two elastically, deformable bodies found in tangential contact (normal loads). This thing is possible only if the form of the profiles found within the contact area is known. The analysis suggested through the paper validates the applicability of the CONTACT software for the profiles used by CFR and for the analysis of the dual-contact. Also, this approach allows the possibility for a tribological evaluation of the vehicle's behavior while traveling on a rail with excess as well with a rail with super-elevation deficiency.

• Periodical: Applied Mechanics and Materials (Volumes 809-810)
• Pages: 1109-1114
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.809-810.1109
• Online since: November 2015
• Authors: Mihela Cristina Tudorache*, Ioan Sebeşan
• Keywords: Contact Ellipse, Sliding Forces, Tangential Forces, Tangential Pressures

References

[1] E.A.H. Vollebregt, User guide for CONTACT, Vollebregt & Kalker's rolling and sliding contact model, VORtech Computing the Scientific Software Engineers, june (2012).

[2] I. Sebeşan, Dynamics of railway vehicles(in Romanian), MatrixRom Publisher, Bucureşti, (2011).

[3] H. Weinstock, Wheel climb derailment criteria for evaluation of rail vehicle safety, Proceedings of the American Society of Mechanical Engineers Winter Annual Meeting; New Orleans (LA), 84–WA/RT–1, 1984, p.1–7.

[4] X. Jin, L. Ling, X. Xiao, Dynamic behavior numerical simulation and safety boundary analysis for high speed trains in severe environments. Comp. Aided Eng. Chinese. 20, 3 (2011) 29–41.

[5] M, Miyamoto, Mechanism of derailment phenomena of railway vehicles. QR RTRI. 37, 3 (1996) 147–155.

[6] W.M. Zhai, G., Chen, Method and criteria for evaluation of wheel derailment based on wheel vertical rise. J China Railway Soc. Chinese. 23, 2 (2001) 17–26.

[7] M.C. Tudorache, The influence of wheel-rail phenomena upon guiding safety for railway vehicle, PhD Thesis, Bucharest (2013).

[8] E.W. Deeg, New Algorithms for Calculating Hertzian Stresses, Deformations, and Contact Zone Parameters, AMP Journal of Technology. 2 (1992) 14-24.

[9] J.J. Kalker, Wheel-rail rolling contact theory, Wear . 144 (1991) 243-261.

DOI: 10.1016/0043-1648(91)90018-p
