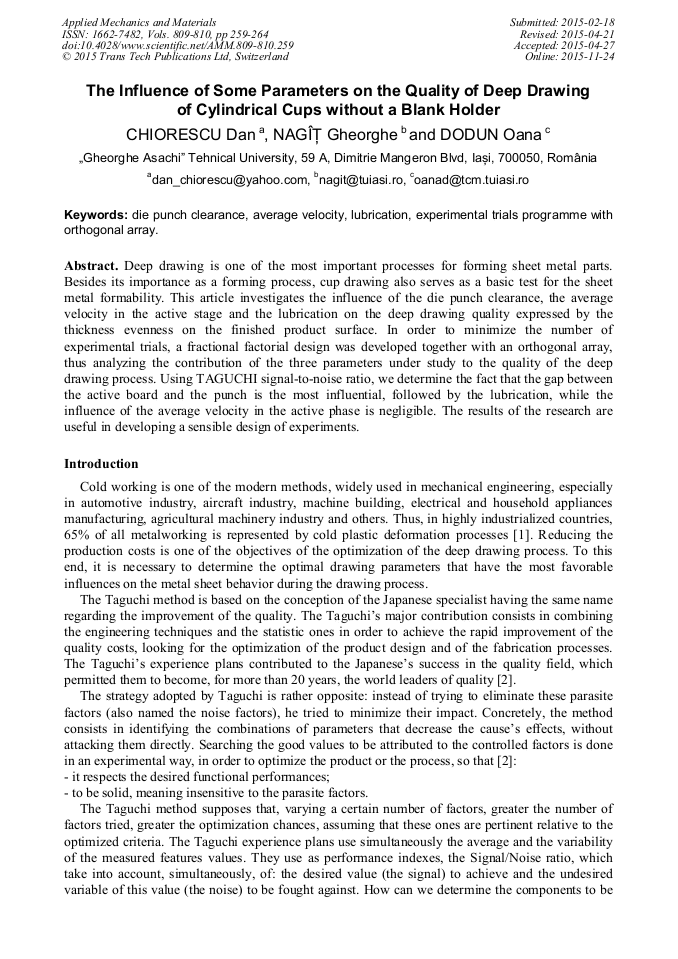

The Influnce of Some Parameters on the Quality of Deep Drawing of Cylindrical Cups without a Blank Holder

Abstract:

Deep drawing is one of the most important processes for forming sheet metal parts. Besides its importance as a forming process, cup drawing also serves as a basic test for the sheet metal formability. This article investigates the influence of the die punch clearance, the average velocity in the active stage and the lubrication on the deep drawing quality expressed by the thickness evenness on the finished product surface. In order to minimize the number of experimental trials, a fractional factorial design was developed together with an orthogonal array, thus analyzing the contribution of the three parameters under study to the quality of the deep drawing process. Using TAGUCHI’s signal-to-noise ratio, we determine that ram velocity has a major influence, followed by the clearance between the active elements, while the contribution of lubrication is negligible. The results of the research are useful in developing a sensible design of experiments.

• Periodical: Applied Mechanics and Materials (Volumes 809-810)
• Pages: 259-264
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.809-810.259
• Online since: November 2015
• Authors: Dan Chiorescu*, Gheorghe Nagîț, Oana Dodun
• Keywords: Average Velocity, Die Punch Clearance, Experimental Trials Programme with Orthogonal Array, Lubrication

References

[1] V. Braha, Gh. Nagîț, Cold pressing technology (in Romanian), Technical Scientific and Educational Eds., Cermi, Iași, (2003).

[2] J. Alexis, Taguchi method in industrial practice, Tehnica Publishing House, Bucuresti, Romania, (1999).

[3] J. Kang, M. Hadfield, Parameter optimization by Taguchi methods for finishing advanced ceramic balls using a novel eccentric lapping machine, Journal of Engineering Manufacture. 215, B1 (2001) 69-78.

DOI: 10.1243/0954405011515145

[4] R. Padmanabhan, M.C. Oliveira, Influence of process parameters on the deep drawing of stainless steel, Finite Elements in Analysis and Design. 43 (2007) 1062-106.

DOI: 10.1016/j.finel.2007.06.011

[5] S. Raju, G. Ganesan, R. Karthikeyan, Influence of variables in deep drawing of AA 6061 sheet, Transactions of Nonferrous Metals Society of China, 2010, pp.1856-1862.

DOI: 10.1016/s1003-6326(09)60386-1

[6] L.F. Yang, K.I. Mori, Deformation behaviors of magnesium alloy AZ31 sheet in cold deep drawing, Transactions of Nonferrous Metals Society of China, 2008, 86-91.

DOI: 10.1016/s1003-6326(08)60016-3
