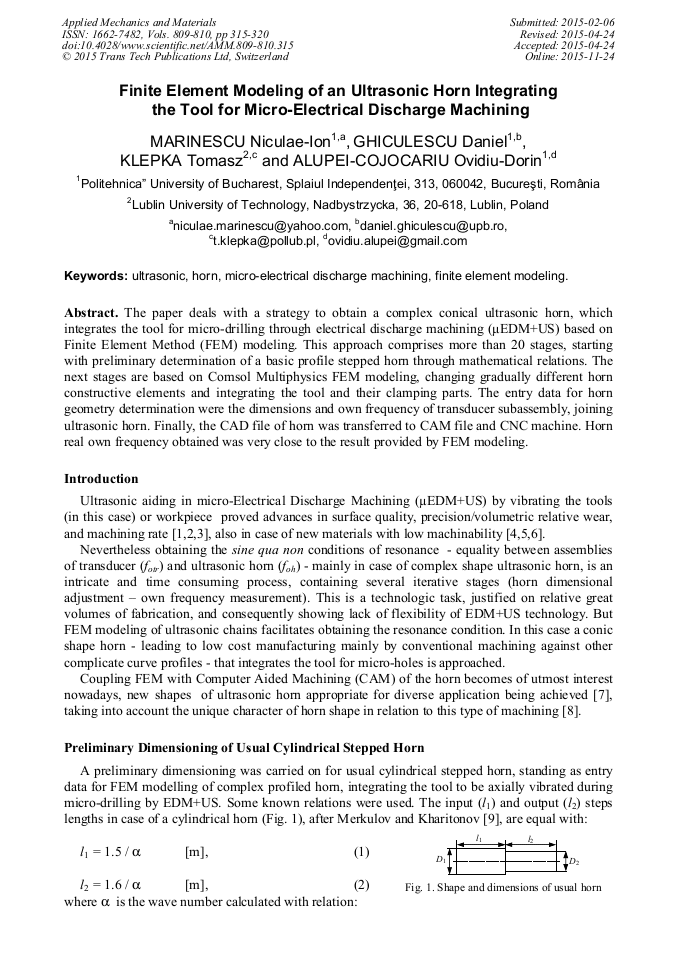

Finite Element Modeling of an Ultrasonic Horn Integrating the Tool for Micro-Electrical Discharge Machining

Abstract:

The paper deals with a strategy to obtain a complex conical ultrasonic horn, which integrates the tool for micro-drilling through ̵̵̼̳̹̳̱̼̈́͂˰̴̸̷̵̹̳̱̓͂˰̸̷̱̳̹̹̽̾̾˰˸ڌ̝̔̕˻̥̣˹˰̵̴̲̱̓˰̿̾˰̖̹̾ite Element Method (FEM) modeling. This approach comprises more than 20 stages, starting with preliminary determination of a basic profile stepped horn through mathematical relations. The next stages are based on Comsol Multiphysics FEM modeling, changing gradually different horn constructive elements and integrating the tool and their clamping parts. The entry data for horn geometry determination were the dimensions and own frequency of transducer subassembly, joining ultrasonic horn. Finally, the CAD file of horn was transferred to CAM file and CNC machined. Horn real own frequency obtained was very close to the result provided by FEM modeling.

• Periodical: Applied Mechanics and Materials (Volumes 809-810)
• Pages: 315-320
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.809-810.315
• Online since: November 2015
• Authors: Niculae Marinescu*, Daniel Ghiculescu, Tomasz Klepka, Ovidiu Dorin Alupei-Cojocariu
• Keywords: Finite Element Modeling, Horn, Micro-Electrical Discharge Machining, Ultrasonic

References

[1] C. Gao, A. Liu, Study of ultrasonically aided of micro-electrical-discharge-machining by the application of workpiece vibration, J. of Mat. Process. Technology. 139, (2003) 226–228.

DOI: 10.1016/s0924-0136(03)00224-3

[2] M. R. Shabgard, B. Sadizadeh, H. Kakoulvand, The effect of ultrasonic vibration of workpice in electrical discharge machining of AISIH13 Tool Steel, World Academy of Science, Engineering and Technology. 3 (2009) 332-336.

[3] J. -C. Hung, et al., Using a helical micro-tool in micro-EDM combined with ultrasonic vibration for micro-hole machining, J. Micromech. Microeng. 16 (2006) 2705-2713.

DOI: 10.1088/0960-1317/16/12/025

[4] H. Huang, et al., Ultrasonic vibration assisted electro-discharge machining of microholes in Nitinol, J. Micromech. Microeng. 13 (2003) 693-700.

DOI: 10.1088/0960-1317/13/5/322

[5] K. Suzuki, T. Takada, Z. R. Zhou, T. Okamichi, M. Iwai, S. Ninomiya, Effects of ultrasonic vibrations given to an electrode on the EDM performance in processing PCD, Advanced Materials Research. 565 (2012) 394-399.

DOI: 10.4028/www.scientific.net/amr.565.394

[6] A. Schubert, H. Zeidler, M. Hackert-Oschätzchen, J. Schneider, M. Hahn, Enhancing micro-EDM using ultrasonic vibration and approaches for machining of nonconducting ceramics, Journal of mechanical engineering. 59 3 (2013)156-164.

DOI: 10.5545/sv-jme.2012.442

[7] I. Dudás, A. Kyusojin, Gy. Varga, H. Isobe, Cs. Oravecz, Experimental examination of propagation of longitudinal deformation of different shapes of horn used at ultrasonic machining, 11th International Conference on Tools, Univ. of Miskolc, 2004, pp.317-324.

[8] M. Nad, Ultrasonic horn design for ultrasonic machining technologies, Applied and Computational Mechanics. 4 (2010) 79–88.

[9] V.K. Astashev, V. I. Babitsky, Ultrasonic processes and machines: dynamics, control and applications, Springer, (2007).

[10] I. Getman, S. Lopatin, Matching of series and parallel resonance frequencies for ultrasonic piezoelectric transducers, Proc. of the 12th IEEE International Symposium, 2 (2000) 713 – 715.

DOI: 10.1109/isaf.2000.942419
