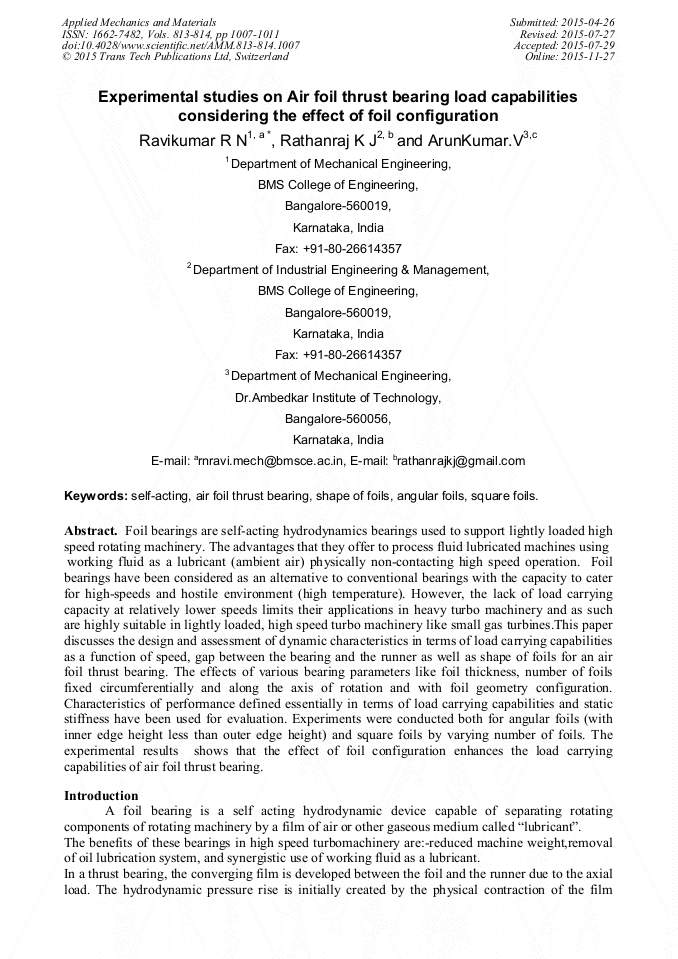

Experimental Studies on Air Foil Thrust Bearing Load Capabilities Considering the Effect of Foil Configuration

Abstract:

Abstract. Foil bearings are self-acting hydrodynamics bearings used to support lightly loaded high speed rotating machinery. The advantages that they offer to process fluid lubricated machines usingworking fluid as a lubricant (ambient air) physically non-contacting high speed operation. Foil bearings have been considered as an alternative to conventional bearings with the capacity to cater for high-speeds and hostile environment (high temperature). However, the lack of load carrying capacity at relatively lower speeds limits their applications in heavy turbo machinery and as such are highly suitable in lightly loaded, high speed turbo machinery like small gas turbines.This paper discusses the design and assessment of dynamic characteristics in terms of load carrying capabilities as a function of speed, gap between the bearing and the runner as well as shape of foils for an air foil thrust bearing. The effects of various bearing parameters like foil thickness, number of foils fixed circumferentially and along the axis of rotation and with foil geometry configuration. Characteristics of performance defined essentially in terms of load carrying capabilities and static stiffness have been used for evaluation. Experiments were conducted both for angular foils (with inner edge height less than outer edge height) and square foils by varying number of foils. The experimental results shows that the effect of foil configuration enhances the load carrying capabilities of air foil thrust bearing.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 1007-1011
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.1007
• Online since: November 2015
• Authors: RN Ravikumar, K.J. Rathanraj, V. Arun Kumar
• Keywords: Air Foil Thrust Bearing, Angular Foils, Self-Acting, Shape of Foils, Square Foils

References

[1] Zhou, Q., Hou, Z., and Chen, C., Dynamic Stability Experiments of Compliant Foil hrust Bearing With Viscoelastic Support, Tribol. Int., 42, p.662–665. (2009).

DOI: 10.1016/j.triboint.2008.09.005

[2] Dickman, J., An Investigation of Gas Foil Thrust Bearing Performance and its Influencing Factors, " Master, s thesis, Case Western Reserve University, OH. (2010).

[3] Dykas, B., Bruckner, R., DellaCorte, C., Emonds, B., and Prahl, J., Design, Fabrication, and Performance of Foil Gas Thrust Bearings for Microturbomachinery Applications, ASME J. Eng. Gas Turbines Power, 131(1), p.012301. (2009).

DOI: 10.1115/1.2966418

[4] Lee, D., and Kim, D., Design and Performance Prediction of Hybrid Air Foil Thrust Bearings, ASME J. Eng. Gas Turbines Power, 133, p.1–13. (2011).

DOI: 10.1115/1.4035913

[5] Bruckner, R. J., Performance of Simple Gas Foil Thrust Bearings in Air, NASA/TM 2012-217262, (2012).

[6] Dykas, B., Prahl, J., DellaCorte, C., and Bruckner, R., Thermal Management Phenomena in Foil Gas Thrust Bearings, Proceedings of the ASME Turbo Expo, Barcelona, Spain. (2006).

DOI: 10.1115/gt2006-91268

[7] Stahl, B. J. Thermal stability and performance of foil thrust bearings, Master of Science Department of Mechanical and Aerospace Engineering , CASE WESTERN RESERVE UNIVERSITY , (2012).

[8] Gauthier, R., Cedex, V., & Renard, E. Experimental Analysis of the Start-Up Torque of a Mildly Loaded Foil Thrust Bearing , Journal of Tribology, Vol. 135 / 031702-1–7, (2013).

DOI: 10.1115/1.4024211
