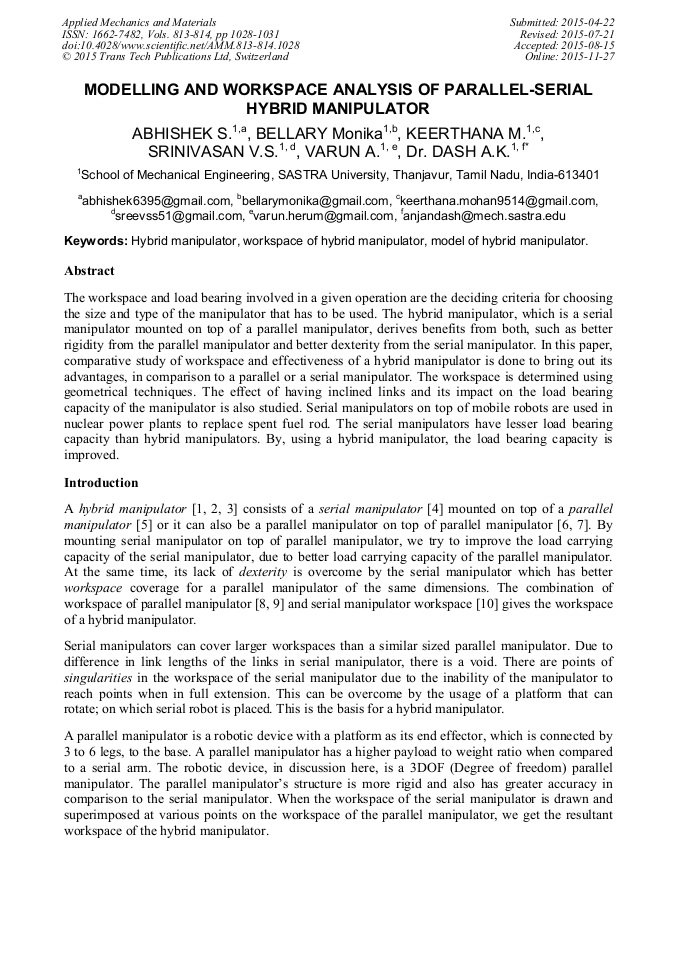

Modelling and Workspace Analysis of Parallel-Serial Hybrid Manipulator

Abstract:

The workspace and load bearing involved in a given operation are the deciding criteria for choosing the size and type of the manipulator that has to be used. The hybrid manipulator, which is a serial manipulator mounted on top of a parallel manipulator, derives benefits from both, such as better rigidity from the parallel manipulator and better dexterity from the serial manipulator. In this paper, comparative study of workspace and effectiveness of a hybrid manipulator is done to bring out its advantages, in comparison to a parallel or a serial manipulator. The workspace is determined using geometrical techniques. The effect of having inclined links and its impact on the load bearing capacity of the manipulator is also studied. Serial manipulators on top of mobile robots are used in nuclear power plants to replace spent fuel rod. The serial manipulators have lesser load bearing capacity than hybrid manipulators. By, using a hybrid manipulator, the load bearing capacity is improved.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 1028-1031
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.1028
• Online since: November 2015
• Authors: S. Abhishek, Monika Bellary, M. Keerthana, V.S. Srinivasan, A. Varun, Anjan Kumar Dash*
• Keywords: Hybrid Manipulator, Model of Hybrid Manipulator, Workspace of Hybrid Manipulator

References

[1] Zeng, Qiang, Yuefa Fang, and Kornel F. Ehmann. Design of a novel 4-DOF kinematotropic hybrid parallel manipulator., Journal of Mechanical Design 133. 12 (2011), 121006: 1-9.

DOI: 10.1115/1.4005233

[2] Xue, Zi Yun, Bin Zhang, Ji Xing Jia, and Dong Bo Zhang. Design and Simulation Analysis of a Hybrid Manipulator., Advanced Materials Research 712 (2013): 2255-2259.

DOI: 10.4028/www.scientific.net/amr.712-715.2255

[3] Gómez-Bravo, F., G. Carbone, and J. C. Fortes. Collision free trajectory planning for hybrid manipulators., Mechatronics 22. 6 (2012): 836-851.

DOI: 10.1016/j.mechatronics.2012.05.001

[4] Kim, S. H., Yoon, B., Lee, H. J., Kim, S., Kim, K. S., Kim, J. C., & Noh, T. Y., Portable serial robot manipulator with distributed actuation mechanism., Control, Automation and Systems (ICCAS), 2014, 14th International Conference on IEEE(2014).

DOI: 10.1109/iccas.2014.6987826

[5] Gao, Z., Zhang, D., Hu, X., & Ge, Y., Design, analysis, and stiffness optimization of a three degree of freedom parallel manipulator,. Robotica 28(03) (2010), 349-357.

DOI: 10.1017/s0263574709005657

[6] Zeng, Qiang, and Yuefa Fang. Structural synthesis and analysis of serial–parallel hybrid mechanisms with spatial multi-loop kinematic chains., Mechanism and Machine Theory 49 (2012): 198-215.

DOI: 10.1016/j.mechmachtheory.2011.10.008

[7] Coppola, Gianmarc, Dan Zhang, and Kefu Liu. A 6-DOF reconfigurable hybrid parallel manipulator., Robotics and Computer-Integrated Manufacturing 30. 2 (2014): 99-106.

DOI: 10.1016/j.rcim.2013.09.011

[8] Bihari, B., Kumar, D., Jha, C., Rathore, V.S., Dash, A.K. A geometric approach for the workspace analysis of two symmetric planar parallel manipulators.,  Robotica (2015)-Vol 89(3) article in press.

DOI: 10.1017/s0263574714001830

[9] Altuzarra, Oscar, et al. Optimal dimensioning for parallel manipulators: Workspace, dexterity, and energy., Journal of Mechanical Design 133(4 ), (2011), 041007 : 1-7.

DOI: 10.1115/1.4003879

[10] Dong, Hui, Zhijiang Du, and Gregory S. Chirikjian. Workspace density and inverse kinematics for planar serial revolute manipulators., Mechanism and Machine Theory 70 (2013): 508-522.

DOI: 10.1016/j.mechmachtheory.2013.08.008

[11] All terrain robot for nuclear installation., BARC newsletter, Sept-Oct (2013) issue.
