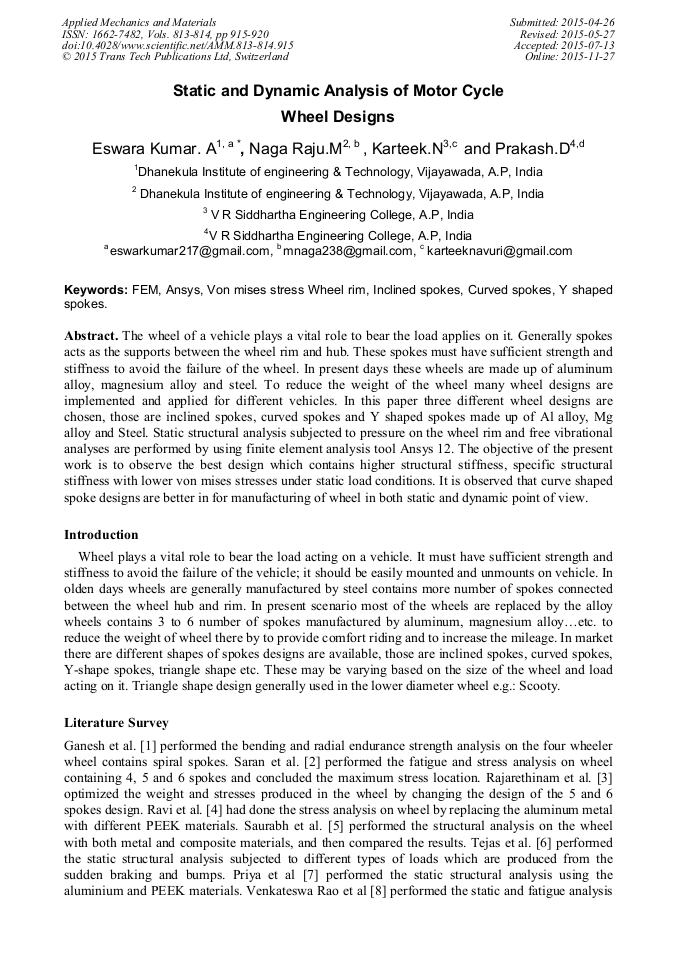

Static and Dynamic Analysis of Motor Cycle Wheel Designs

Abstract:

The wheel of a vehicle plays a vital role to bear the load applies on it. Generally spokes acts as the supports between the wheel rim and hub. These spokes must have sufficient strength and stiffness to avoid the failure of the wheel. In present days these wheels are made up of aluminum alloy, magnesium alloy and steel. To reduce the weight of the wheel many wheel designs are implemented and applied for different vehicles. In this paper three different wheel designs are chosen, those are inclined spokes, curved spokes and Y shaped spokes made up of Al alloy, Mg alloy and Steel. Static structural analysis subjected to pressure on the wheel rim and free vibrational analyses are performed by using finite element analysis tool Ansys 12. The objective of the present work is to observe the best design which contains higher structural stiffness, specific structural stiffness with lower von mises stresses under static load conditions. It is observed that curve shaped spoke designs are better in for manufacturing of wheel in both static and dynamic point of view.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 915-920
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.915
• Online since: November 2015
• Authors: A. Eswara Kumar, M. Naga Raju, Navuri Karteek, Daggupati Prakash
• Keywords: ANSYS, Curved Spokes, FEM, Inclined Spokes, Von Misses Stress Wheel Rim, Y Shaped Spokes

References

[1] Ganesh. S, Periswamy. S, Design and analysis of spiral wheel rim for four wheeler, IJES, Vol. 3, Issue 4, pp.29-37 (2014).

[2] Saran theja. M, Shankar. G, Vamsi Krishna. M, Design analysis of two wheeler lighter weight alloy wheel, Indian journal of engineering, 2013 6(15) pp.9-21.

[3] Rajarethinam. P, Periswamy. K Modification of design and analysis of motor cycle wheel spokes, ICAEM pp.123-127.

[4] Ravi. L, Sanjay. C, Anil kumar. M, International journal of mechanical engineering and research, Vol. 3, Issue 5(2013) pp.503-516.

[5] Saurabh M, Sameer j, "Modeling and analysis of a motorcycle wheel rim, Vol. 2 Issue 3(2013).

[6] Tejas. M, Harish. S, Bhaskar. P, Design and analysis of two wheeler front wheel under critical load conditions, IJAIEM, Vol. 3, Issue 5. (2013).

[7] Priya udasi, sanjay. k, Design and analysis of two wheeler wheel with the replacement of aluminum alloy, IJRTE, Vol. 3, issue 4, (2014).

[8] Aman. P, Smit. T, Design modification and analysis of automobile wheel rim using finite element analysis, IJSRD, Vol. 2, Issue 9, (2014).

[9] P. Meghasyam et. al Design and Analysis of Wheel Rim using CATIA & ANSYS " International journal of application or innovation in engineering management, Volume 2, Issue 8, August (2013).

[10] Aman. P, Smit. T, Design modification and analysis of automobile wheel rim using finite element analysis, IJSRD, Vol. 2, Issue 9, (2014).
