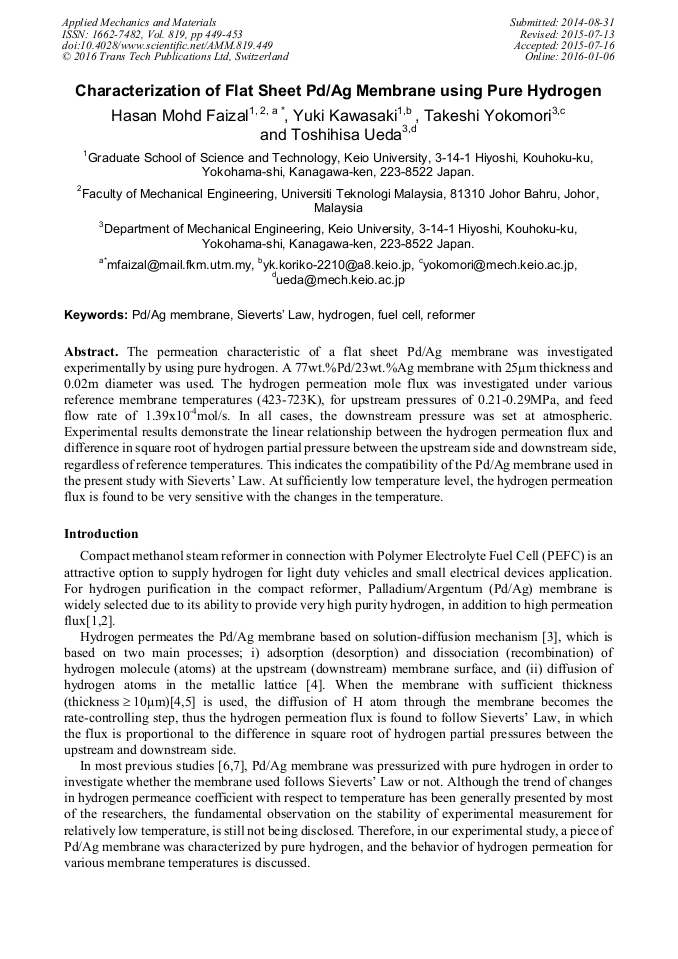

Characterization of Flat Sheet Pd/Ag Membrane Using Pure Hydrogen

Abstract:

The permeation characteristic of a flat sheet Pd/Ag membrane was investigated experimentally by using pure hydrogen. A 77wt.%Pd/23wt.%Ag membrane with 25μm thickness and 0.02m diameter was used. The hydrogen permeation mole flux was investigated under various reference membrane temperatures (423-723K), for upstream pressures of 0.21-0.29MPa, and feed flow rate of 1.39x10^-4mol/s. In all cases, the downstream pressure was set at atmospheric. Experimental results demonstrate the linear relationship between the hydrogen permeation flux and difference in square root of hydrogen partial pressure between the upstream side and downstream side, regardless of reference temperatures. This indicates the compatibility of the Pd/Ag membrane used in the present study with Sieverts’ Law. At sufficiently low temperature level, the hydrogen permeation flux is found to be very sensitive with the changes in the temperature.

• Periodical: Applied Mechanics and Materials (Volume 819)
• Pages: 449-453
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.819.449
• Online since: January 2016
• Authors: Hasan Mohd Faizal*, Yuki Kawasaki, Takeshi Yokomori, Toshihisa Ueda
• Keywords: Fuel Cell, Hydrogen, Pd/Ag Membrane, Reformer, Sieverts’ Law

References

[1] S. Uemiya, N. Sato, H. Ando, Y. Kude, T. Matsuda, E. Kikuchi, Separation of hydrogen through palladium thin film supported on a porous glass tube, J. Membr. Sci. 56 (1991) 303-313.

DOI: 10.1016/s0376-7388(00)83040-9

[2] A. Basile, A. Iulianelli, T. Longo, S. Liguori, M. De Falco, Membrane Reactors for Hydrogen Production Processes, Springer-Verlag, London Limited, (2011).

DOI: 10.1007/978-0-85729-151-6_2

[3] L Holleck G. Diffusion and Solubility of Hydrogen in Palladium and Palladium-Silver Alloys, J. Phys. Chem. 74(3) (1970) 503-511.

DOI: 10.1021/j100698a005

[4] L Ward T, T. Dao, Model of hydrogen permeation behavior in palladium membranes, J. Membr. Sci. 153 (1999) 211-31.

[5] G. Federico, E.E. Erik, Y.H. Ma, Effects of surface activity, defects and mass transfer on hydrogen permeance and n-value in composite palladium-porous stainless steel membrane, Catal. Today 118 (2006) 24-31.

DOI: 10.1016/j.cattod.2005.12.010

[6] H. Israni S., P. Harold M., Methanol steam reforming in Pd-Ag membrane reactors: Effects of reaction system species on transmembrane hydrogen flux, Ind. Eng. Chem. Res. 49 (2010) 10242-10250.

DOI: 10.1021/ie1005178

[7] T. Hoai Nguyen, S. Mori, M. Suzuki, Hydrogen permeance and the effect of H2O and CO on the permeability of Pd0. 75Ag0. 25 membranes under gas-driven permeation and plasma-driven permeation, Chem. Eng. J. 155 (2009) 55-61.

DOI: 10.1016/j.cej.2009.06.024
