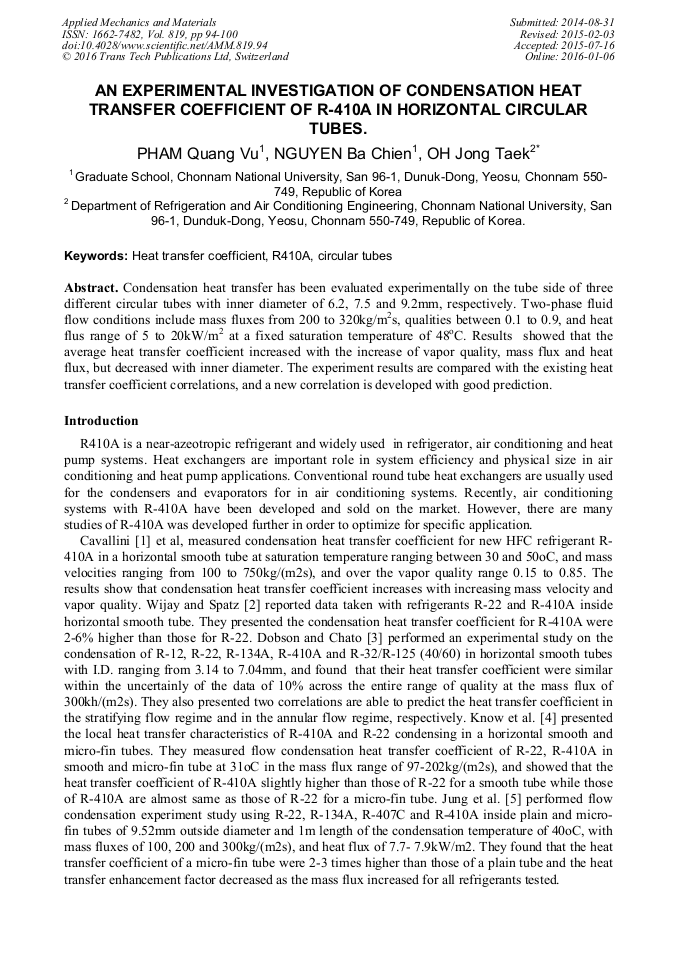

An Experimental Investigation of Condensation Heat Transfer Coefficient of R-410A in Horizontal Circular Tubes

Abstract:

Condensation heat transfer has been evaluated experimentally on the tube side of three different circular tubes with inner diameter of 6.2, 7.5 and 9.2mm, respectively. Two-phase fluid flow conditions include mass fluxes from 200 to 320kg/m²s, qualities between 0.1 to 0.9, and heat flus range of 5 to 20kW/m² at a fixed saturation temperature of 48°C. Results showed that the average heat transfer coefficient increased with the increase of vapor quality, mass flux and heat flux, but decreased with inner diameter. The experiment results are compared with the existing heat transfer coefficient correlations, and a new correlation is developed with good prediction.

• Periodical: Applied Mechanics and Materials (Volume 819)
• Pages: 94-100
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.819.94
• Online since: January 2016
• Authors: Pham Quang Vu, Nguyen Ba Chien, Oh Jong Taek*
• Keywords: Circular Tubes, Heat Transfer Coefficient, R410A

References

[1] A. Cavallini, G. Censi et al. Experimental investigates on condensation heat transfer and pressure drop of new HFC refrigerants (R-134A, R-125, R-32, R-410A, R-236ea) in a horizontal smooth tube, Int. J. Refrigeration 24 (2001), pp.73-87.

DOI: 10.1016/s0140-7007(00)00070-0

[2] H. Wijaya, M. W. Spatz. Two-phase flow condensation heat transfer and pressure drop characteristics. Proceeding of International refrigerant conference at Purdue (1994), pp.305-310.

[3] M.K. Dobson, J.C. Chato. Condensation in smooth horizontal tubes. J. Heat transfer 120 (1998), pp.193-213.

DOI: 10.1115/1.2830043

[4] Jeong-Tae Kwon, Suki Park et al. Enhanced effect of a horizontal micro-fin tube of condensation heat transfer with R-22 and R-410A. J. Enhanced heat transfer, Volume 7 (2000), Issue 2.

DOI: 10.1615/jenhheattransf.v7.i2.30

[5] D. Jung, Y. Cho. Flow condensation heat transfer coefficient of R-22, R-134A, R-407C and R-410A inside plain and microfin tubes. Int. J. Refrigeration 27 (2004) pp.25-32.

DOI: 10.1016/s0140-7007(03)00122-1

[6] Hui-Yong Zhang, Jun-Ming Li et al. Experimental investigation of condensation heat transfer an pressure drop of R22, R410A and R407C in mini-tubes. Int .J. Heat and mass transfer 55 (2012), pp.3522-3532.

DOI: 10.1016/j.ijheatmasstransfer.2012.03.012

[7] M.H. Shah. A general correlation for heat transfer during film condensation inside pipes. Int. J. Heat mass transfer, vol 22, pp.537-556.

DOI: 10.1016/0017-9310(79)90058-9

[8] A. Cavallini, Davide Del Col et al. Condensation in horizontal smooth tubes: A new heat transfer model for heat exchanger design. Heat transfer engineering, 27(8) (2006) pp.31-38.

DOI: 10.1080/01457630600793970

[9] J.R. Thome, J El Hajal, A. Cavallini. Condensation in horizontal tubes, part 2: new heat transfer model based on flow regimes. Int. J, Heat and mass transfer 46 (2003), pp.3365-3387.

DOI: 10.1016/s0017-9310(03)00140-6

[10] L. Tang, M. M. Ohadi, Art T. Johnson. Flow condensation is smooth and micro-fin tubes with HCFC-22, HFC-134a and HFC-410 refrigerants. Part II: Design equation. Enhanced heat transfer, (2000), vol. 7, pp.311-325. 3.

DOI: 10.1615/jenhheattransf.v7.i5.20

[11] M.K. Dobson. Heat transfer and flow regimes during condensation in horizontal tubes. PhD. Dissertation, University of Illinois, Urbana-Champaign, Il, USA.

[12] Jeong Seob Shin, Moo Hwan Kim. An experimental study of flow condensation heat transfer inside circular and rectangular mini-channels. Heat transfer engineering, 26 (3) (2005), pp.36-44.

DOI: 10.1080/01457630590907185
