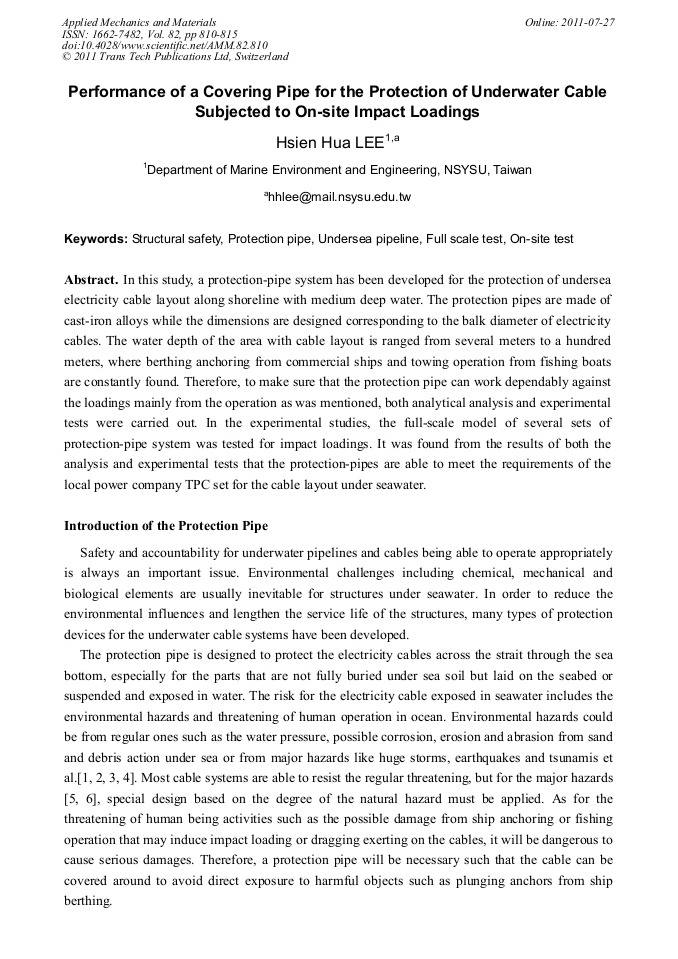

Performance of a Covering Pipe for the Protection of Underwater Cable Subjected to on-Site Impact Loadings

Abstract:

In this study, a protection-pipe system has been developed for the protection of undersea electricity cable layout along shoreline with medium deep water. The protection pipes are made of cast-iron alloys while the dimensions are designed corresponding to the balk diameter of electricity cables. The water depth of the area with cable layout is ranged from several meters to a hundred meters, where berthing anchoring from commercial ships and towing operation from fishing boats are constantly found. Therefore, to make sure that the protection pipe can work dependably against the loadings mainly from the operation as was mentioned, both analytical analysis and experimental tests were carried out. In the experimental studies, the full-scale model of several sets of protection-pipe system was tested for impact loadings. It was found from the results of both the analysis and experimental tests that the protection-pipes are able to meet the requirements of the local power company TPC set for the cable layout under seawater.

• Periodical: Applied Mechanics and Materials (Volume 82)
• Pages: 810-815
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.82.810
• Online since: July 2011
• Authors: Hsien Hua Lee
• Keywords: Full Scale Test, On-Site Test, Protection Pipe, Structural Safety, Undersea Pipeline

References

[1] Sundar, V. and Subbiah, K.（1984）, "Studies on Wave Subsea Pipeline Interaction", Ocean Engineering, Vol. 11, No. 6, pp.655-662.

DOI: 10.1016/0029-8018(84)90006-4

[2] Lambrakos, K. F.（1985）, "Marine Pipeline Soil Friction Coefficients From In-situ Testing", Ocean Engineering, Vol. 12, No. 2, pp.131-150.

DOI: 10.1016/0029-8018(85)90077-0

[3] Zimmerman, M. and et. Al（1986）, "Dynamic Behavior of Deep-Ocean pipeline", Journal of Waterway, Port, Coastal and Ocean Engineering, Vol.112, pp.183-199.

DOI: 10.1061/(asce)0733-950x(1986)112:2(183)

[4] Friedmann, Y.（1988）, "Sea-bottom Forces Crucial in Pipeline Crossings Design", Oil and Gas Journal Vol. 86, pp.47-50.

[5] Shah, B. C., White, C. N. and Rippon, I. J.（1988）, "Design and Operational Considerations For Unsupported Offshore Pipeline Spans", SPE Production Engineering, Vol. 3, pp.227-237.

DOI: 10.2118/15810-pa

[6] Raichlen F. and Watanabe A.（1997）," Wave Induced Forces on A Submarine Pipeline," Proceedings of the 7th International Offshore and Polar Engineering Conference, pp.261-268.
