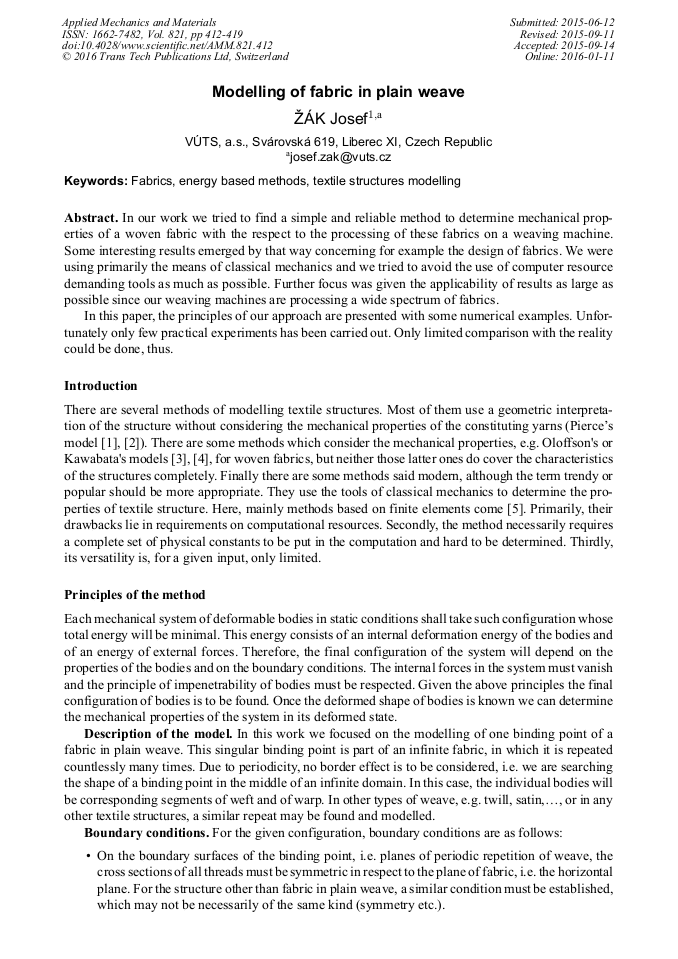

Modelling of Fabric in Plain Weave

Abstract:

In our work we tried to find a simple and reliable method to determine mechanical properties of a woven fabric with the main respect to the processing of these fabrics on a weaving machine. Some interesting results emerged by that way concerning for example the design of fabrics. We were using primarily the means of classical mechanics and we tried to avoid the use of computer resource demanding tools as much as possible. Also we were concerned by the applicability of results as large as possible since our weaving machines are processing a wide spectrum of fabrics.\parIn this paper, the principles of our approach are presented with some numerical examples. Few practical experiments were carried out at this moment, so only limited comparison with the reality could be done.

• Periodical: Applied Mechanics and Materials (Volume 821)
• Pages: 412-419
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.821.412
• Online since: January 2016
• Authors: Josef Žák*
• Keywords: Energy Based Methods, Fabrics, Textile Structures Modelling

References

[1] S. Nosek: Struktura a geometrie tkanin (Výzkumný ústav bavlnářský, Ústí nad Orlicí 1974).

[2] B. Kolčavová Sirková: syllabus to lectures of KVT, Technická univerzita Liberec, at: http: /www. ktt. tul. cz/index. php?page=1397823766. pdf.

[3] A. C. Long (ed. ): Design and Manufacture of Textile Composites (Woodhead Publishing Ltd., Cambridge 2005, pp.81-83).

[4] P. Boisse, K. Buet, A. Gasser, J. Launay: Meso/macro-mechanical behaviour of textile reinforcements for thin composites, in: Composites Science and Technology, Volume 61, Issue 3, February (2001).

DOI: 10.1016/s0266-3538(00)00096-8

[5] G. Dhatt, G. Touzot: Une présentation de la méthode des éléments finis (Maloine S.A., Paris 1984).

[6] S. Koukal, M. Křížek, R. Potůček: Fourierovy trigonometrické řady a metoda konečných prvků v komplexním oboru (Academia, Praha 2002).

[7] J. Drašarová: Analýza příčných řezů tkaniny, Disertační práce, Technická univerzita v Liberci, Fakulta textilní, Liberec (2004).

[8] K. Juliš, R. Brepta: Mechanika I. díl, Statika a kinematika (SNTL Praha 1986), pp.189-190.

[9] Zugprüfungen an Garnen und Zwirnen, Anwendungshandbuch USTER®TENSORAPID, Zellweger, Uster (1983).

[10] J. Žák: Mechanische Eigenschaften des Garns, 14. Chemnitzer Textiltechnik-Tagung '14, (2014) pp.183-190.

[11] R. T. Haftka, Z. Gürdal: Elements of Structural Optimization, Third revised and expanded edition (Kluver Academic Publishing 1991).
