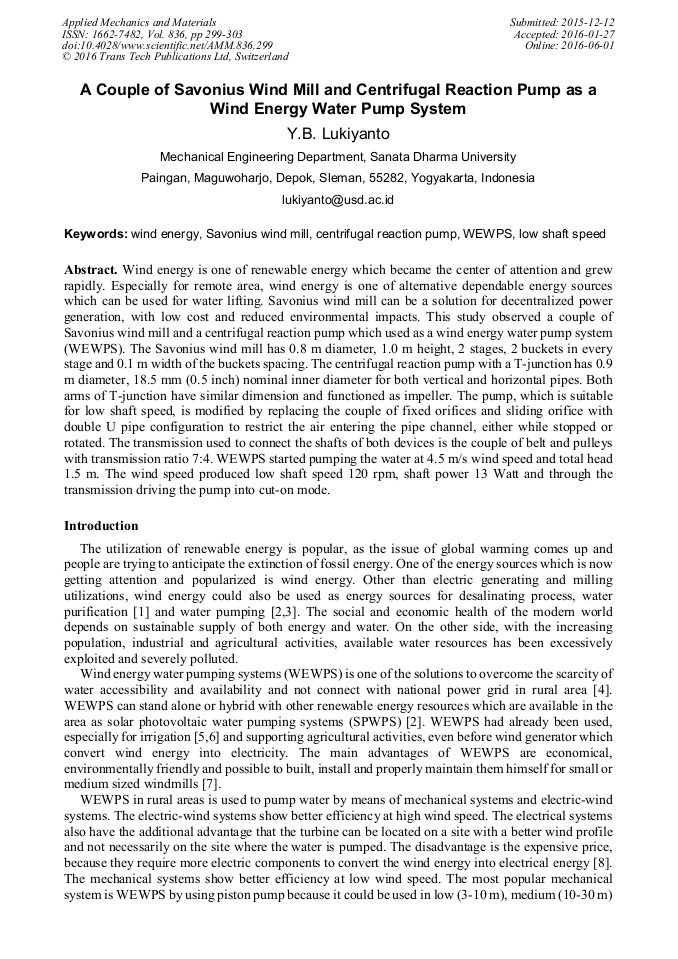

A Couple of Savonius Wind Mill and Centrifugal Reaction Pump as a Wind Energy Water Pump System

Abstract:

Wind energy is one of renewable energy which became the center of attention and grew rapidly. Especially for remote area, wind energy is one of alternative dependable energy sources which can be used for water lifting. Savonius wind mill can be a solution for decentralized power generation, with low cost and reduced environmental impacts. This study observed a couple of Savonius wind mill and a centrifugal reaction pump which used as a wind energy water pump system (WEWPS). The Savonius wind mill has 0.8 m diameter, 1.0 m height, 2 stages, 2 buckets in every stage and 0.1 m width of the buckets spacing. The centrifugal reaction pump with a T-junction has 0.9 m diameter, 18.5 mm (0.5 inch) nominal inner diameter for both vertical and horizontal pipes. Both arms of T-junction have similar dimension and functioned as impeller. The pump, which is suitable for low shaft speed, is modified by replacing the couple of fixed orifices and sliding orifice with double U pipe configuration to restrict the air entering the pipe channel, either while stopped or rotated. The transmission used to connect the shafts of both devices is the couple of belt and pulleys with transmission ratio 7:4. WEWPS started pumping the water at 4.5 m/s wind speed and total head 1.5 m. The wind speed produced low shaft speed 120 rpm, shaft power 13 Watt and through the transmission driving the pump into cut-on mode.

• Periodical: Applied Mechanics and Materials (Volume 836)
• Pages: 299-303
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.836.299
• Online since: June 2016
• Authors: Y.B. Lukiyanto*
• Keywords: Centrifugal Reaction Pump, Low Shaft Speed, Savonius Wind Mill, WEWPS, Wind Energy

References

[1] Q. Ma, H. Lu, Wind energy technologies integrated with desalination systems: Review and state-of-the-art, Desalination. 277 (2011) 274–280.

DOI: 10.1016/j.desal.2011.04.041

[2] C. Gopal, M. Mohanraj, P. Chandramohan, P. Chandrasekar, Renewable energy source water pumping systems—A literature review, Renewable and Sustainable Energy Reviews. 25 (2013) 351–370.

DOI: 10.1016/j.rser.2013.04.012

[3] J. Dhillon, A. Kumar, S.K. Singal, Optimization methods applied forWind–PSP operation and scheduling under deregulated market: A review, Renewable and Sustainable Energy Reviews. 30 (2014) 682–700.

DOI: 10.1016/j.rser.2013.11.009

[4] S. Rehman, A.Z. Sahin, Wind power utilization for water pumping using small wind turbines in Saudi Arabia: A techno-economical review, Renewable and Sustainable Energy Reviews. 16 (2012) 4470–4478.

DOI: 10.1016/j.rser.2012.04.036

[5] Information on http: /www. fao. org/docrep/010/ah810e/ah810e10. htm 27/08/2013 13: 54.

[6] T. Y Lin, W.F. Lin, Structure and motion analyses of the sails of Chinese Great Windmill, Mechanism and Machine Theory. 48 (2012) 29–40.

DOI: 10.1016/j.mechmachtheory.2011.09.005

[7] Information on http: /www. wikiwater. fr/e42-wind-powered-pumps. html 25/02/(2014).

[8] D.D. Lara, G.G. Merino, B.J. Pavez, J.A. Tapia, Efficiency assessment of a wind pumping system, Energy Conversion and Management. 52 (2011) 795–803.

DOI: 10.1016/j.enconman.2010.08.004

[9] G.Y. Pam, I.B. Mansir, M.I. Borok, Y.B. Kolo, Efficiency And Hydraulic Power Of Poldaw Windpump Systems At Some Locations In Northern Nigeria, The International Journal Of Engineering And Science (IJES). 2 (2013), Issue 8, 80-85.

[10] P.T. Smulders, Wind water pumping: the forgotten option, Energy for Sustainable Development. Vol. II, No. 5, (1996) 8-13.

DOI: 10.1016/s0973-0826(08)60156-8

[11] Information on http: /www. nzdl. org 27/08/(2013).

[12] Johnson G. L, Wind Energy System, Electronic Edition, Information on www. eece. ksu. edu/~gjohnson/ Windbook. pdf, (2006) pp.1-17.

[13] I.A. Rubinski, A.I. Rubinsky, A low specific speed pump for small discharge; Civil Engineering and Public Works Review. 50 (1955) No. 591, pp.987-990.

[14] Y.B. Lukiyanto, E. Wahisbullah, A Simple Double U Pipe Configuration to Improve Performance of a Large-Diameter Slow-Speed Centrifugal Impeller, Proceedings of the 3rd Applied Science for Technology Application, Yogyakarta, Indonesia. 13-14 August (2014).

[15] P.N. Shankar, Development of Vertical Axis Wind Turbine, Proceeding Indian Acad. Science, Vol. C2, Pt. 1, India. (1979) pp.49-66.

[16] J.V. Akwa, H.A. Vielmo, A.P. Petry, A review on the performance of Savonius wind turbines, Renewable and Sustainable Energy Reviews. 16 (2012) 3054– 3064.

DOI: 10.1016/j.rser.2012.02.056

[17] Y.B. Lukiyanto, Y.T. Triharyanto, Two Stages Savonius Windmill with Variation of Blade Gap, Proceeding Indonesia National Seminar PPET-LIPI, ISSN 2303-0798, Bandung, Indonesia. (2012) pp.21-26.
