Effect of SiO₂ Nanoparticles on the Mechanical and Low Velocity Impact Properties of Epoxy/Glass Composites

Abstract:

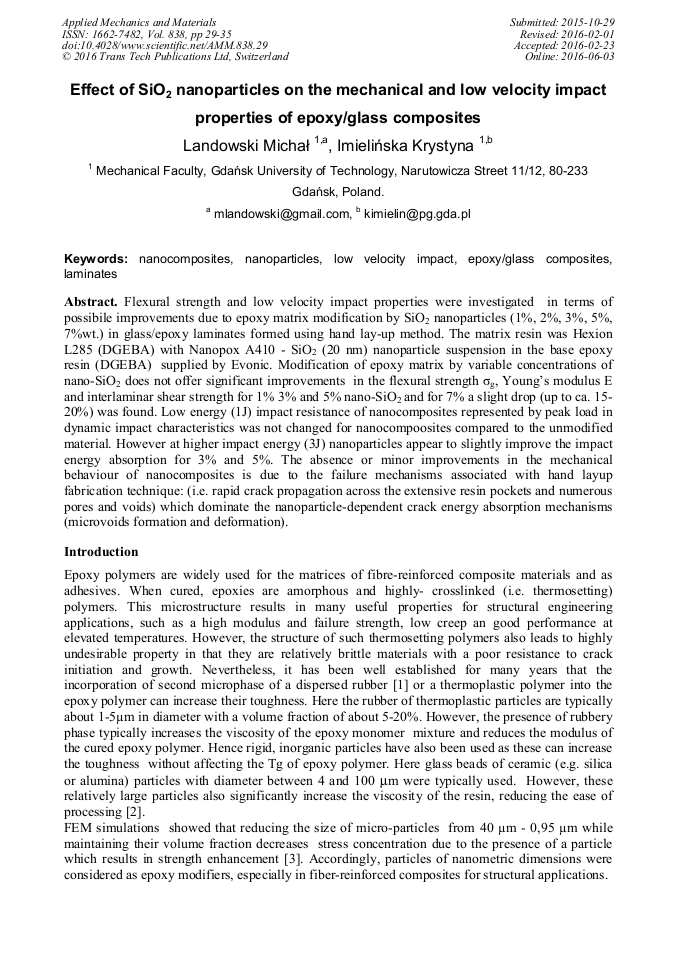

Flexural strength and low velocity impact properties were investigated in terms of possibile improvements due to epoxy matrix modification by SiO₂ nanoparticles (1%, 2%, 3%, 5%, 7%wt.) in glass/epoxy laminates formed using hand lay-up method. The matrix resin was Hexion L285 (DGEBA) with Nanopox A410 - SiO₂ (20 nm) nanoparticle suspension in the base epoxy resin (DGEBA) supplied by Evonic. Modification of epoxy matrix by variable concentrations of nanoSiO₂ does not offer significant improvements in the flexural strength σ_g, Young’s modulus E and interlaminar shear strength for 1% 3% and 5% nanoSiO₂ and for 7% a slight drop (up to ca. 15-20%) was found. Low energy (1J) impact resistance of nanocomposites represented by peak load in dynamic impact characteristics was not changed for nanocompoosites compared to the unmodified material. However at higher impact energy (3J) nanoparticles appear to slightly improve the impact energy absorption for 3% and 5%. The absence or minor improvements in the mechanical behaviour of nanocomposites is due to the failure mechanisms associated with hand layup fabrication technique: (i.e. rapid crack propagation across the extensive resin pockets and numerous pores and voids) which dominate the nanoparticle-dependent crack energy absorption mechanisms (microvoids formation and deformation).

• Periodical: Applied Mechanics and Materials (Volume 838)
• Pages: 29-35
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.838.29
• Online since: June 2016
• Authors: Michał Landowski*, Krystyna Imielińska
• Keywords: Epoxy Composites, Glass Composites, Laminates, Low Velocity Impact, Nanocomposites, Nanoparticles

References

[1] A.J. Kinloch, Toughening epoxy adhesives to meet today's challenges: MRS Bulletin 2003, 28(6): 445-8.

DOI: 10.1557/mrs2003.126

[2] B.B. Johnsen, A.J. Kinloch, R.D. Mohammed, A.C. Taylor, S. Sprenger, Toughening mechanisms of nanoparticle-modified epoxy polymers: Polymer 48, 2007 530-5.

DOI: 10.1016/j.polymer.2006.11.038

[3] Q. Zhao i S.V. Hoa, Toughening mechanisms of epoxy resins with micro/nano particles: Journal of composite materials. 2007, vol. 41, 2.

DOI: 10.1177/0021998306063361

[4] A.J. Kinloch, A.C. Taylor, J.H. Lee, S. Sprenger, C. Eger, D. Egan, Toughening structural adhesives via nano-and micro-phase inclusions: Journal of Adhesion 2003, 79(8-9), 867-73.

DOI: 10.1080/00218460309551

[5] Y. Xu, S.V. Hoa, Mechanical properties of carbon fiber reinforced epoxy/clay nanocomposites: Composites Science and Technology, 2008, vol. 68, 3-4.

DOI: 10.1016/j.compscitech.2007.08.013

[6] W. Liu, S.V. Hoa, M. Pugh, Organoclay-modified high performance epoxy nanocomposites: Composites Science and Technology 2005, vol 65, 2.

DOI: 10.1016/j.compscitech.2004.07.012

[7] Y. Huang, A.J. Kinloch, Modelling of the toughening mechanisms in rubber-modified epoxy polymers: Journal of Materials Science, 1992, vol. 27, 10.

DOI: 10.1007/bf00540702

[8] J. Cho, J.Y. Chen, I.M. Daniel, Mechanical enhancement of carbon fiber/epoxy composites by graphite nanoplatelet reinforcement: Scripta materialia 56, 8 2007 685-688.

DOI: 10.1016/j.scriptamat.2006.12.038

[9] Evonik Industries - Specialty Chemicals. [Online] Evonik. [cited: 20 01 2014. ] http: /corporate. evonik. com.

[10] Y. Zeng, H.Y. Liu, Y.W. Mai, X.S. Du, Improving interlaminar fracture toughness of carbon fibre/epoxy laminates by incorporation of nano-particles: Composites Part B: Engineering, 2012, 43(1): 90-94.

DOI: 10.1016/j.compositesb.2011.04.036

[11] M.F. Uddin, C.T. Sun, Impact resistance and toughness of composite laminates with nanoparticle – enhancedmatrix. In: Proceedings of International SAMPEL symposium and expo, Long Beach, (2008).

[12] M.F. Uddin, C.T. Sun, Strength of unidirectional glass/epoxy composite with silica nanoparticle – enhanced matrix: Composites Science and Technology, 2008, vol. 68, 7-8.

DOI: 10.1016/j.compscitech.2008.02.026

[13] P.N.B. Reis, J.A.M. Ferreira, Z.Y. Zhang, T. Benameur, M.O.W. Richardson, Impact strength of composites with nano-enhanced resin after fire exposure: Composites: Part B 56 (2014) 290-295.

DOI: 10.1016/j.compositesb.2013.08.048

[14] S. Zhao L.S. Schadler, R. Duncan, H. Hillborg, T. Auletta., Mechanisms leading to improved mechanical performance in nanoscale alumina filled epoxy: Composites Science and Technology: 2008, vol. 68.

DOI: 10.1016/j.compscitech.2008.01.009
