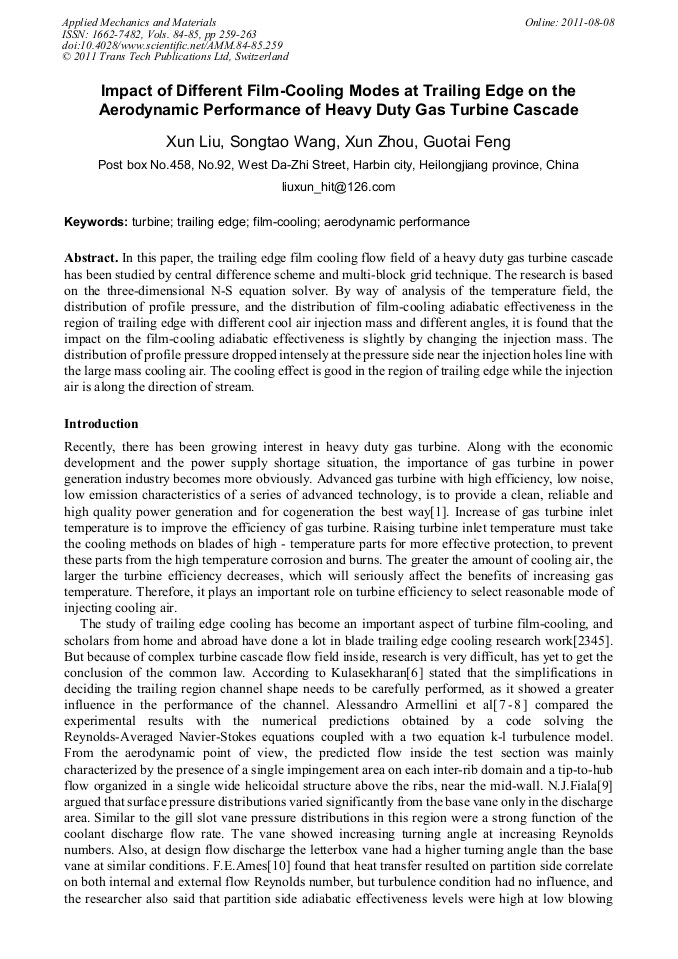

Impact of Different Film-Cooling Modes at Trailing Edge on the Aerodynamic Performance of Heavy Duty Gas Turbine Cascade

Abstract:

In this paper, the trailing edge film cooling flow field of a heavy duty gas turbine cascade has been studied by central difference scheme and multi-block grid technique. The research is based on the three-dimensional N-S equation solver. By way of analysis of the temperature field, the distribution of profile pressure, and the distribution of film-cooling adiabatic effectiveness in the region of trailing edge with different cool air injection mass and different angles, it is found that the impact on the film-cooling adiabatic effectiveness is slightly by changing the injection mass. The distribution of profile pressure dropped intensely at the pressure side near the injection holes line with the large mass cooling air. The cooling effect is good in the region of trailing edge while the injection air is along the direction of stream.

• Periodical: Applied Mechanics and Materials (Volumes 84-85)
• Pages: 259-263
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.84-85.259
• Online since: August 2011
• Authors: Xun Liu, Song Tao Wang, Xun Zhou, Guo Tai Feng
• Keywords: Aerodynamic Performance, Film Cooling, Trailing Edge, Turbine

References

[1] Lee S Langston. Gas Turbine Industry Overview, ASME International Gas Turbine Institute, 1999. (2): 23－31.

[2] Rajendran V P, Sajben M, Dinicco R. Experimental Investigation of the Aerodynamics of Turbine Blade Trailing Edge Cooling at Transonic Speeds. AIAA 2000-3640.

DOI: 10.2514/6.2000-3640

[3] Oguz Uzo, J Cengiz Canc, Boris Glezer. Aerodynamic Loss Characteristics of a Turbine Blade with Trailing Edge Coolant Ejection Part 2: Wxtemal Aerodynamics Total pressure Losses and Predictions. Journal of Turbomachinary, 2001, 123: 238-248.

DOI: 10.1115/1.1351817

[4] Jaswal I., Ames, F.E., Heat Transfer and Pressure Drop Measurements in Constant and Converging Section Pin and Diamond Pedestal Arrays. ASME Paper GT2009-59834.

DOI: 10.1115/gt2009-59834

[5] Marco Montis, Mattia Guidi, Bruno Stephan. Experimental and Numerical Investigation on the Influence of Trailing Edge Bleeding on the Aerodynamics of a NGV Cascade. ASME Paper. GT2009-59910.

DOI: 10.1115/gt2009-59910

[6] N. Kulasekharan, B.V.S.S.S. Parasad. Effect of Coolant Entry Orientation on Flow and Heat Transfer in the Trailing Region Channels of a Gas Turbine Vane. ASME Paper GT2008-50951.

DOI: 10.1115/gt2008-50951

[7] Alessandro Armellini, Filippo Coletti, Tony Arts, et al. Aero-Thermal Investigation of a Rib-Roughened Trailing Edge Channel with Crossing-Jets-Part I: Flow Field Analysis. ASME Paper GT2008-50694.

DOI: 10.1115/gt2008-50694

[8] Filippo Coletti, Alessandro Armellini, Tony Ars, et al. Aero-Thermal Investigation of a Rib-Roughened Trailing Edge Channel with Crossing-Jets-Part II: Heat Transfer Analysis. ASME Paper GT2008-50695.

DOI: 10.1115/gt2008-50695

[9] N.J. Fiala, J.D. Johnson, F.E. Ames. Aerodynamics of a Letterbox Trailing Edge-Effects of Blowing Rate, Reynolds Number, and External Turbulence on Aerodynamic Losses and Pressure Distribution. ASME Paper GT2008-50475.

DOI: 10.1115/gt2008-50475

[10] N.J. Fiala, I. Jaswal, F.E. Ames. Letterbox Trailing Edge Heat Transfer-Effects of Blowing Rate, Reynolds Number, and External Turbulence on Heat Transfer and Film Cooling Effectiveness. ASME Paper GT2008-50474.

DOI: 10.1115/gt2008-50474

[11] Yao-Hsien Liu, Michael Huh, Lesley M. Wright, et al. Heat Transfer in Trailing Edge, Wedge Shaped Cooling Channels with Slot Ejection under High Rotation Numbers. ASME Paper GT2008-50343.

DOI: 10.1115/gt2008-50343
